46. in the following figure, the outputs are cross-coupled back to the inputs of nor gates. which of the following condition will lead to unpredictable operatio

46. In the following figure, the outputs are cross-coupled back to the inputs of NOR gates. Which of the following condition will lead to unpredictable operation ? R S (A) R=0, S = 0 (B) R 0, S = 1 (C) R 1,S =0 (D) R=1, 1,S=1

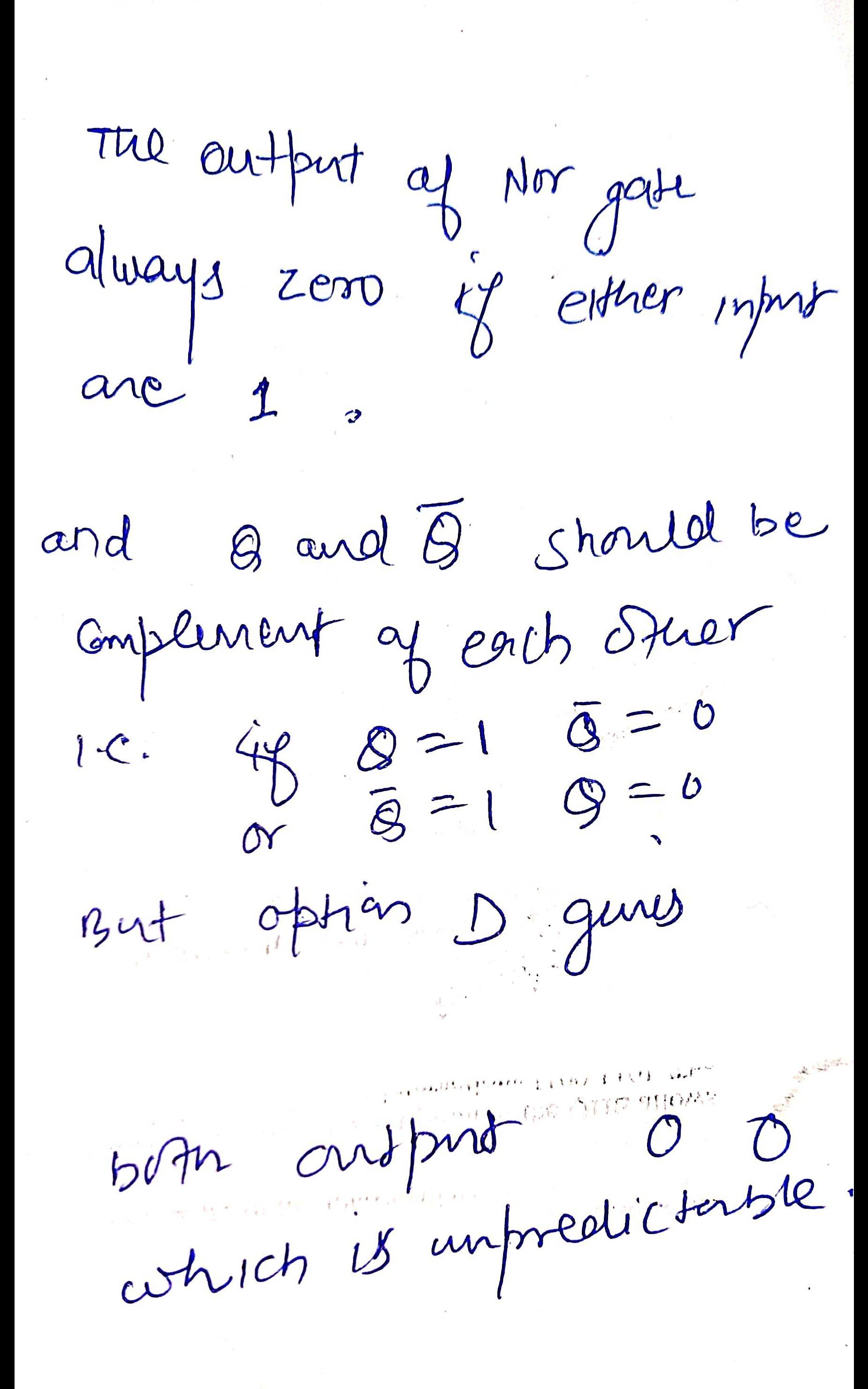

1 Answer(s) Answer Now
