Shivam Sharma posted an Question
September 05, 2020 • 22:18 pm
![]()
30 points
30 points
- CSIR NET
- Earth Sciences
5 leakage through rock fractures below a dam can be reduced significantly by (a) bolting (b) grouting c) drilling (d) blasting 6 consider the following statemen
5 Leakage through rock fractures below a dam can be reduced significantly by (A) bolting (B) grouting C) drilling (D) blasting 6 Consider the following statements regarding way-up criteria in sets of trough cross-beds. P: Cross-beds are concave upwards Q: Cross-beds are truncated towards the top R: Cross-beds have tangential contact towards the bottom (A) P is true, Q is false and R is true (B) P is false, Q is true and R is true (C)P is true, Q is true and R is true (D) P is false, Q is false and R is false
2 Answer(s)
Answer Now
- 0 Likes
- 6 Comments
- 0 Shares
-
![comment-profile-img]()
>
Sajan sarthak
For Trough cross bed relationship the P and R that is they have concave upward and tangential relationship with lower bed is true and they are truncated to the bottom bed so Q is false
![cropped5297848403801800777.jpg]()
![eduncle-logo-app]()
Rahul bhaiya is saying it is truncated towards top
![eduncle-logo-app]()
no Trough cross-beds have lower surfaces which are curved or scoop shaped and truncate the underlying beds. The foreset beds are also curved and merge tangentially with the lower surface. They are associated with sand dune migration.[
![eduncle-logo-app]()
It is truncated towards top
![eduncle-logo-app]()
no it is truncated toward bottom
![eduncle-logo-app]()
Truncated means shorten by cutting off the top or bottom
![eduncle-logo-app]()
bottom here
![eduncle-logo-app]()
Yes but in ur figure they are widen at bottom
![eduncle-logo-app]()
wait I m showing by illustration
![eduncle-logo-app]()
I am waiting
![eduncle-logo-app]()
see this figure Shivam and please mark as answered to the previous answers which you have. not marked
![eduncle-logo-app]()
thank u
![eduncle-logo-app]()
dear Shivam please mark all Answer which you have not marked
-
![comment-profile-img]()
>
Rahul kumar Best Answer

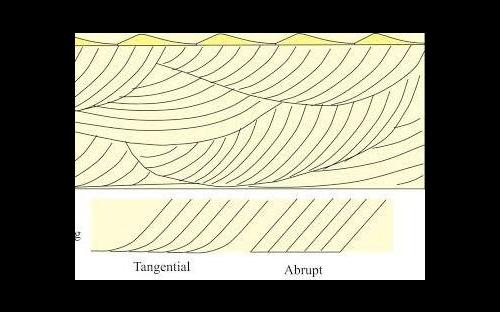

5. Ans(B) Grouting Grouting refers to the injection of pumpable materials into a soil or rock formation to avoid seepage. 6. Ans(C) P is true, Q is true, R is true Trough cross beds are concave upward, truncated towards top and have tangential contact with the bottom. Refere to the attached figure for a diagram of trough cross beds.
![cropped4350188743003496577.jpg]()
-
Shivam sharma
ok
-
![comment-profile-img]()
>
Sajan sarthak
![best-answer]()
Leakage through a fracture can be stopped through grouting. Grout is usually a mixture of cement, sand, and water or chemicals that are used to fill gaps. They are used in repairing concrete cracks, filling seams and gaps in tiles, gaps for sealing and waterproofing, and for soil stabilization.
![eduncle-logo-app]()
Answer the question of cross beds
-
Shivam sharma
(5) Grouting ?
