Vikash raj shrivastava Asked a Question
May 3, 2021 12:13 pmpts 30 pts
  • CSIR NET
  • Physical Sciences

58. the low frequency gain of low pass filter shown in the given fig. 1s r 100 k2 ww.1 c 0.01 1 k2 +v www o +v2 a 10 db c. 30 db b. 20 db d. 40 db

58. The low frequency gain of low pass filter shown in the given fig. 1S R 100 k2 ww.1 C 0.01 1 k2 +V www o +V2 A 10 dB C. 30 dB B. 20 dB D. 40 dB
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Som shekhar sharma thankyou
    see the attachments option B- 20 db is correct

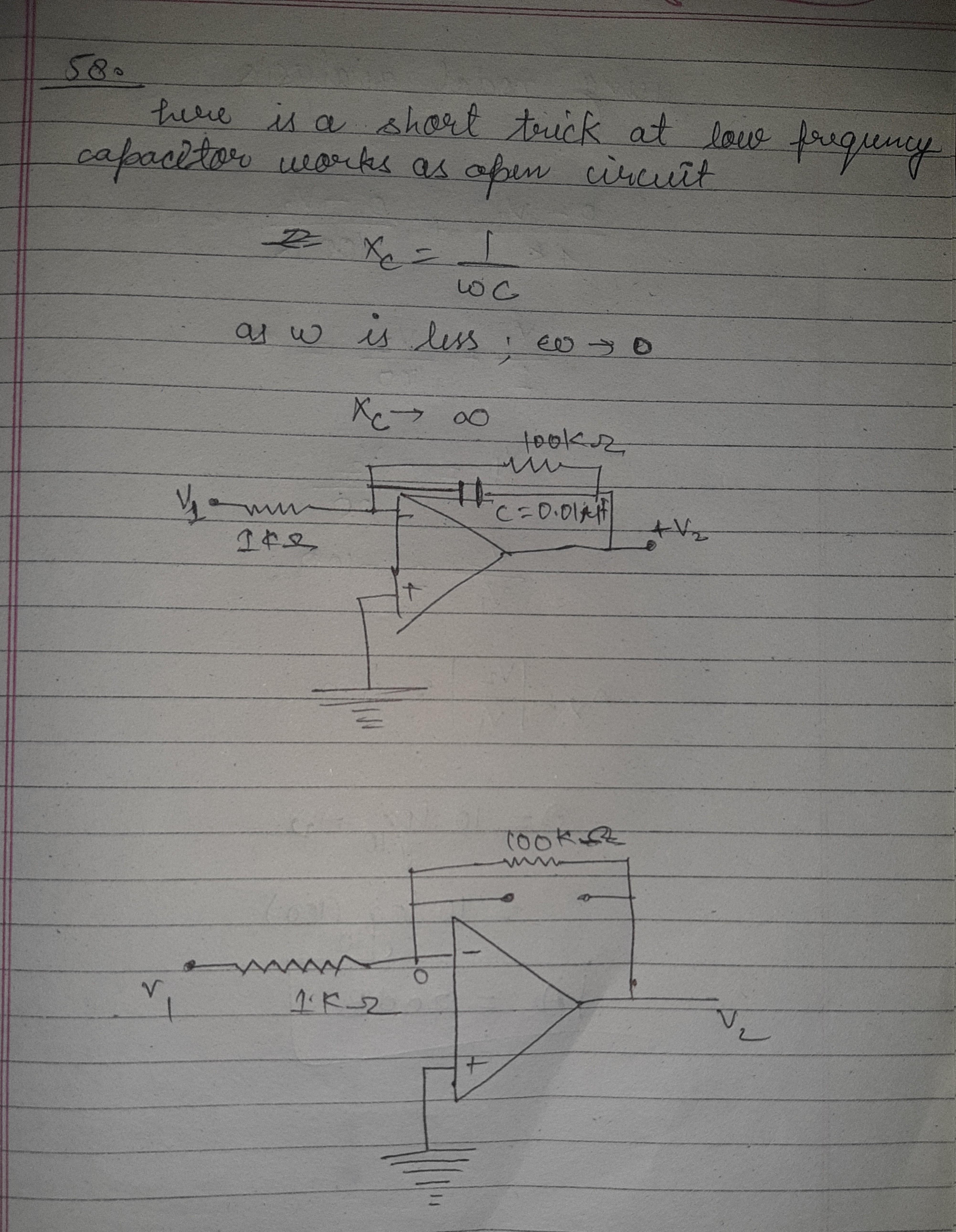

    • cropped8502468850892099771.jpg

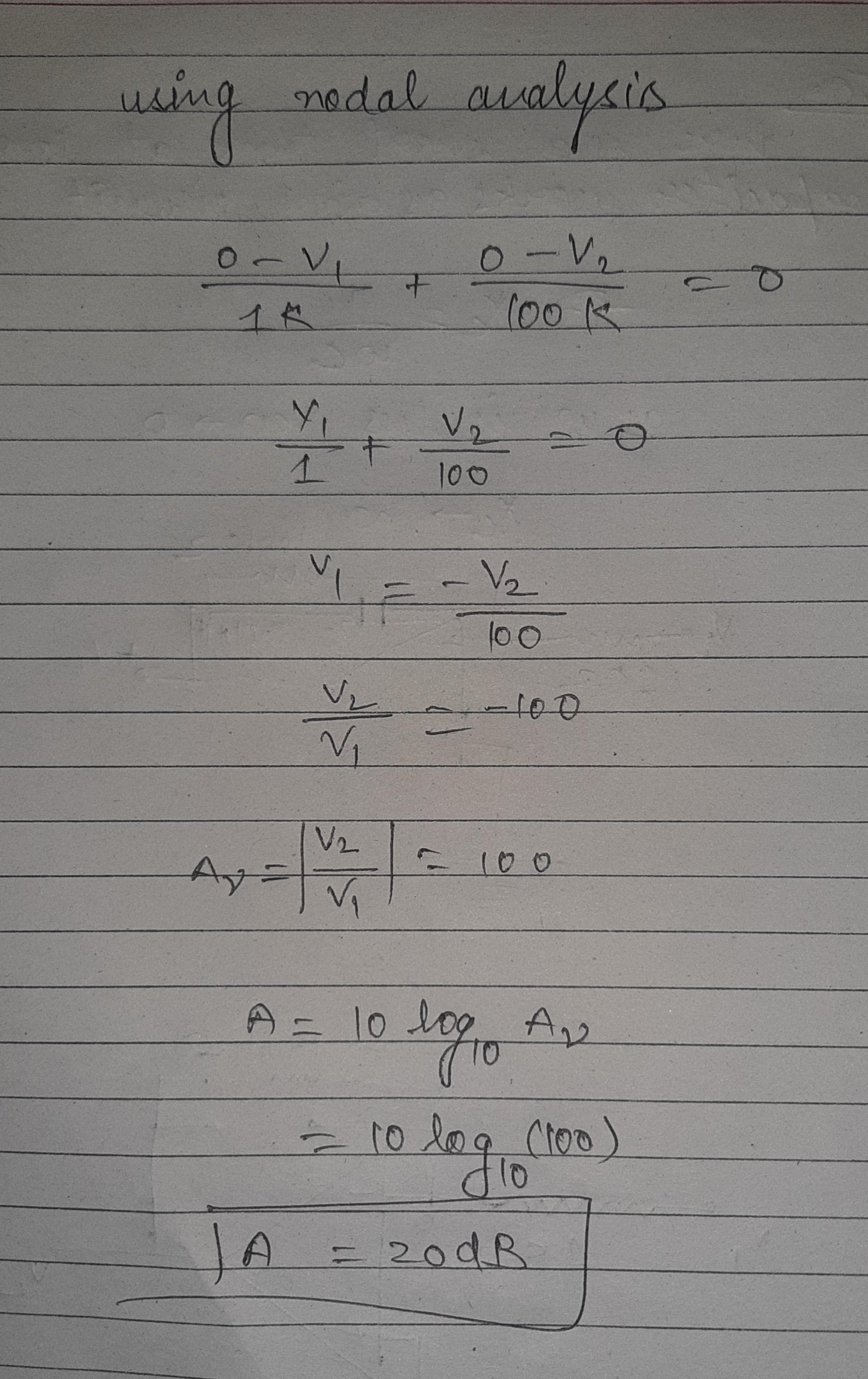

    • cropped1334637146956815596.jpg
