Sutapa Das posted an Question
September 20, 2021 • 23:44 pm 30 points
  • CSIR NET
  • Physical Sciences

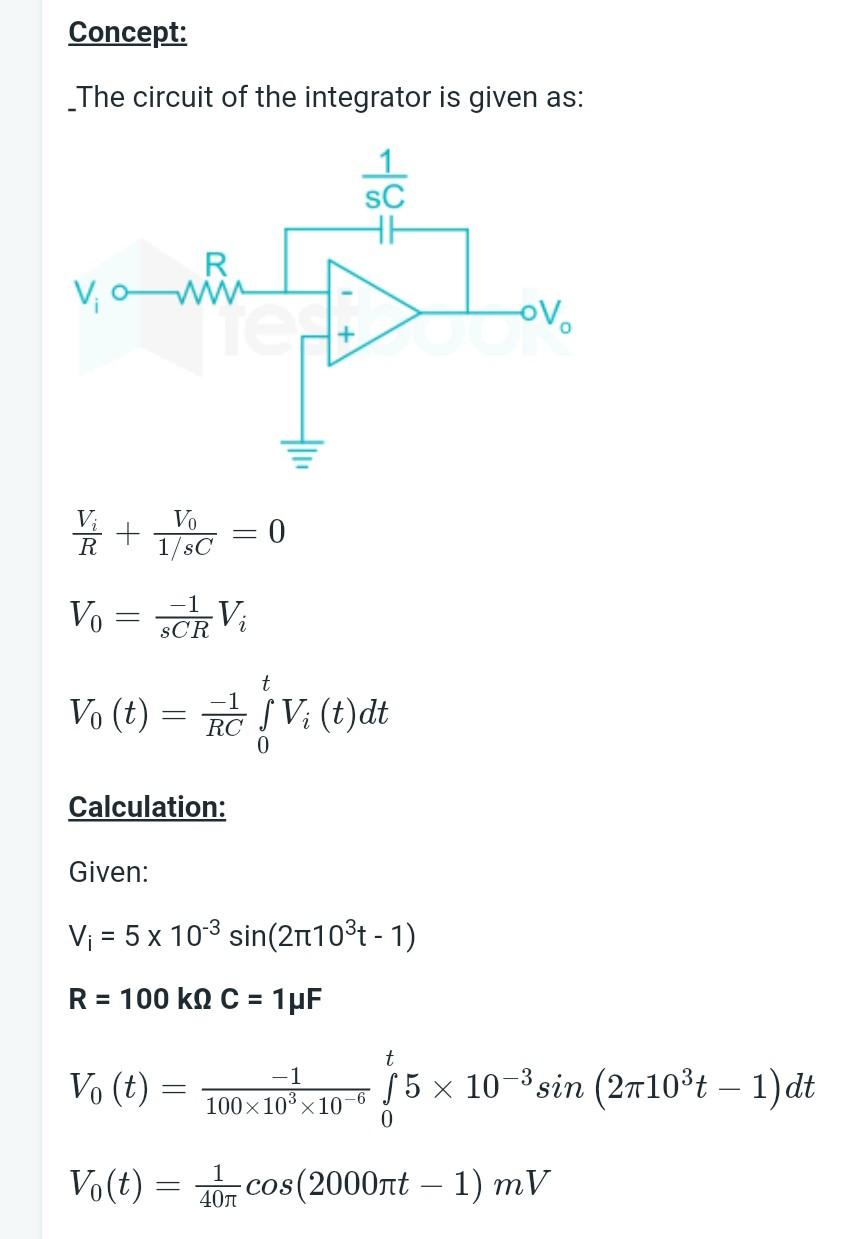

65. a 5 mv, 1 khz sinusoidal signal is applied to the input of an op-amp circuit shown below. find the output voltage : c 1 uf r= 100 k w- n vin =5 mv 1 khz (a)

65. A 5 mV, 1 kHz sinusoidal signal is applied to the input of an op-amp circuit shown below. Find the output voltage : C 1 uF R= 100 k W- N Vin =5 mV 1 kHz (A) (cos 2000t - 1) mV 1 20T 1 (B) (cos 20007t - 1) mV 40T 1 (C) (cos 2000tt - 1) mV 60T 1 (D) (cos 2000Tt - 1) mV 80T

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
