A suite of igneous rocks is formed by differentiation of a parental basic magma containing 50 weight % sio2 and 6 weight % mgo along with other components. draw

A suite of igneous rocks is formed by differentiation of a parental basic magma containing 50 weight % SiO2 and 6 weight % MgO along with other components. Draw a schematic graph to show the variation of MgO with SiO, in these rocks. A heating experiment is conducted under isobaric condition in a rock containing eutectic proportions of anorthite and diopside. Draw a schematic T (temperature) - X (composition) diagram and show the following: ) beginning of melting; (11) end of melting; (ii) path of evolution of melt with further heating.

2 Answer(s) Answer Now
  • 3 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar best-answer

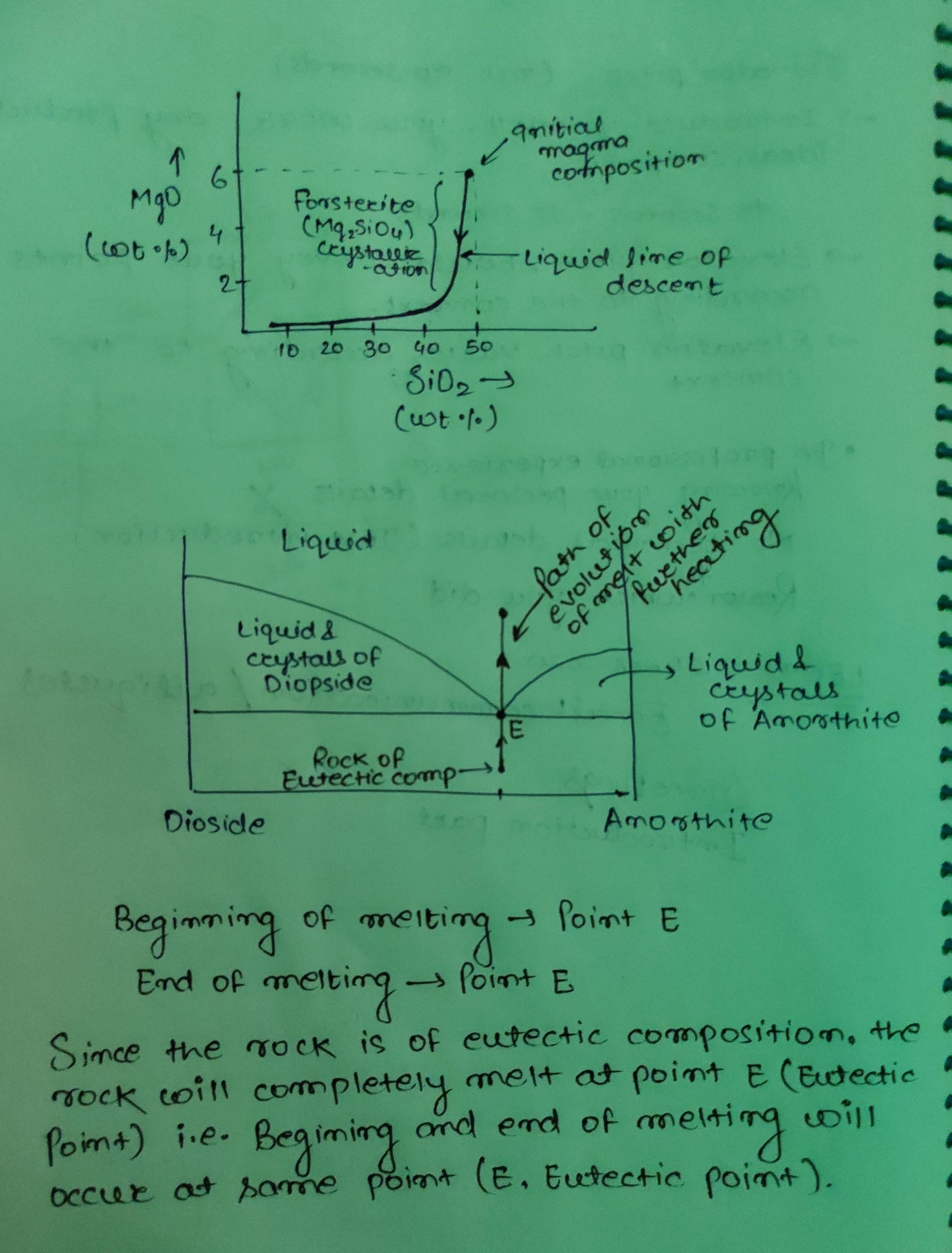

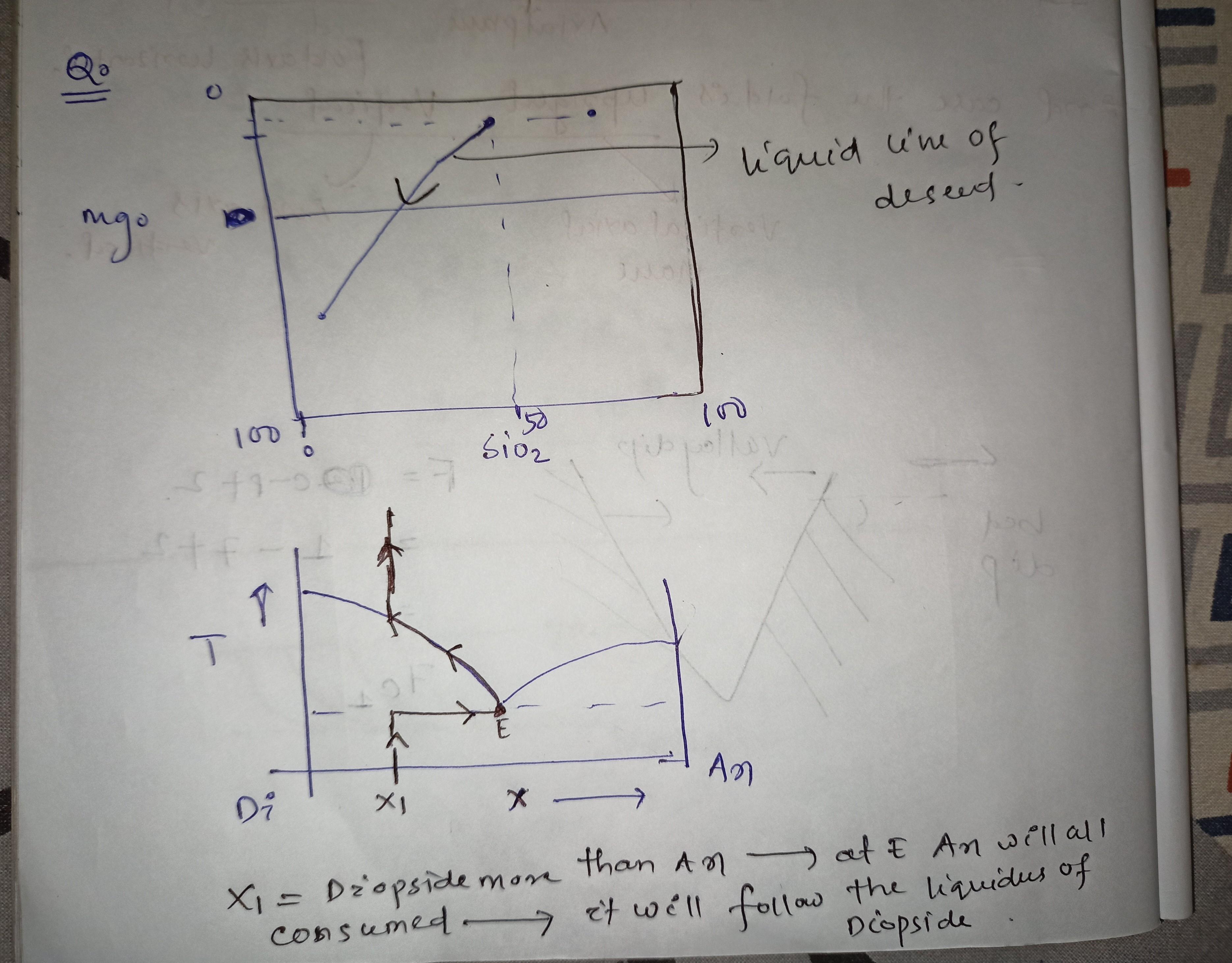

    Dear Shivam, Please find the written solution in attachment.
