Shivam Sharma posted an Question
September 01, 2020 • 17:19 pm 30 points
  • CSIR NET
  • Earth Sciences

(a) the figure below shows stress-strain curves for two rocks, designated as x and y. based on the characteristics of the curves, answer the following questions

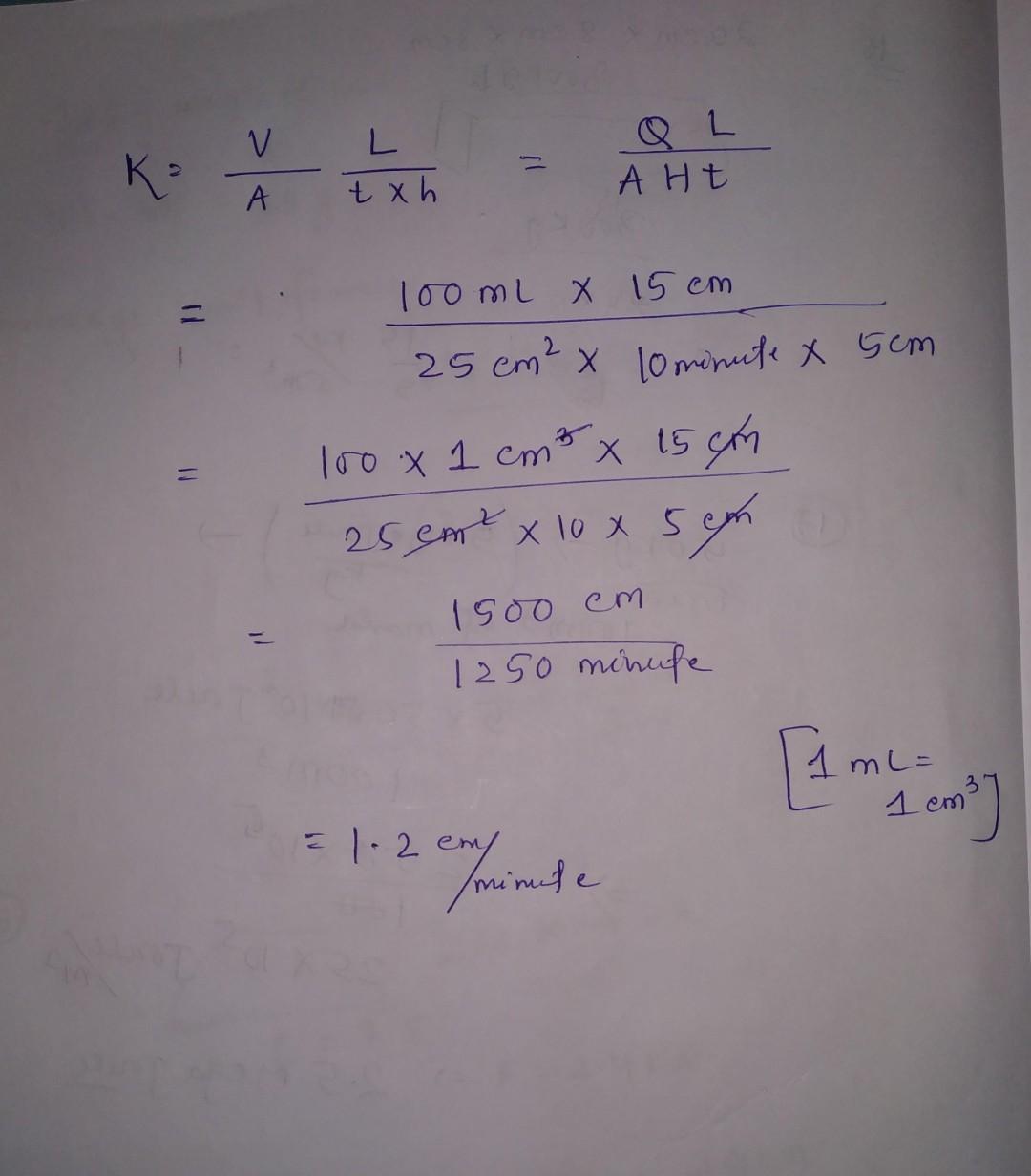

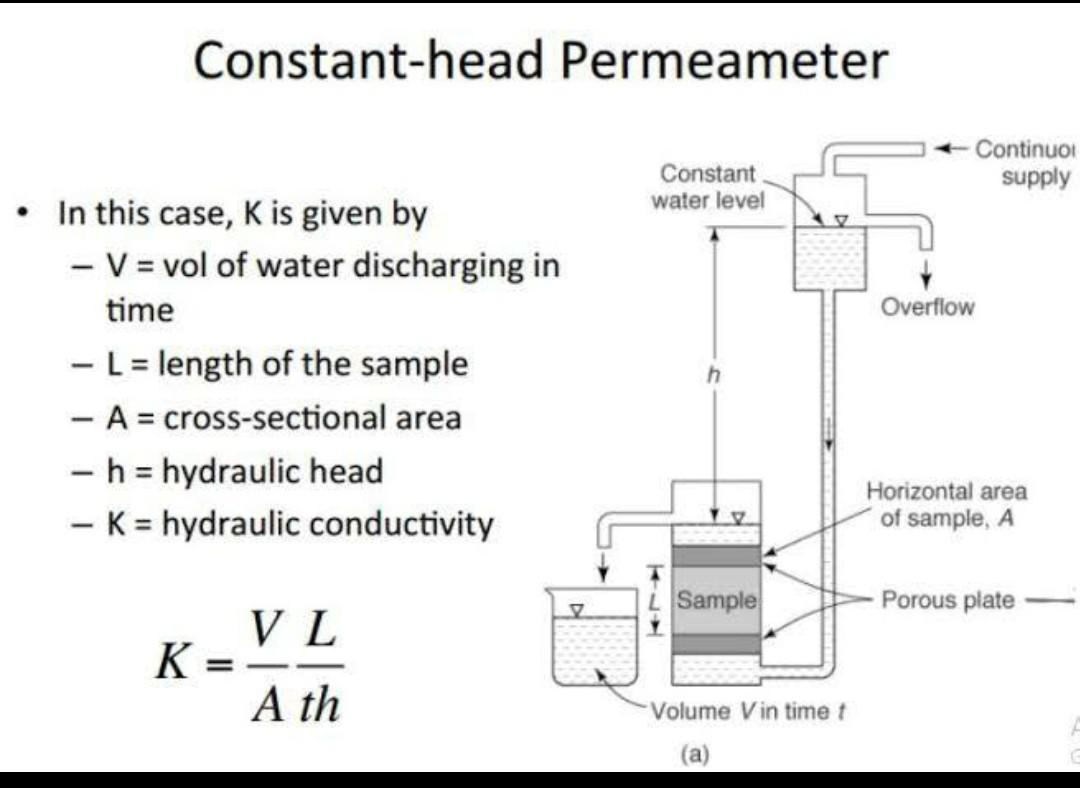

(a) The figure below shows stress-strain curves for two rocks, designated as X and Y. Based on the characteristics of the curves, answer the following questions. Strain (1) What is the mode of failure for Y? 1) What do the regions 'm' and 'n' represent? (1i) What do the points p', 'q and 'r' represent? (6) A sandstone core of 15 cm length and cross-sectional area of 25 cm' was evaluated for permeability, using a constant head permeameter. For a hydraulic head of 5 cm, a total of 100 ml of water was collected in 10 minutes. Estimate hydraulic conductivity (cm/min) using the Darcy's equation, Q = K.A.(dh/dl), where Q= discharge (cm'/min), K = hydraulic conductivity (cm/min), A = cross-sectional area (cm) and (dh/dl) = hydraulic head.

2 Answer(s) Answer Now
  • 1 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Sajan sarthak Best Answer

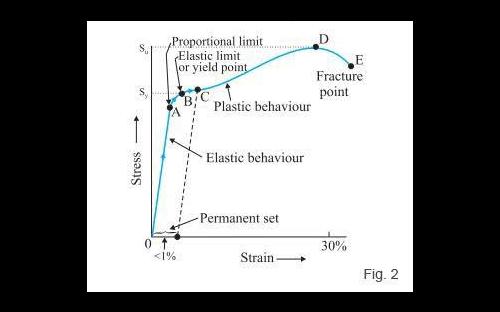

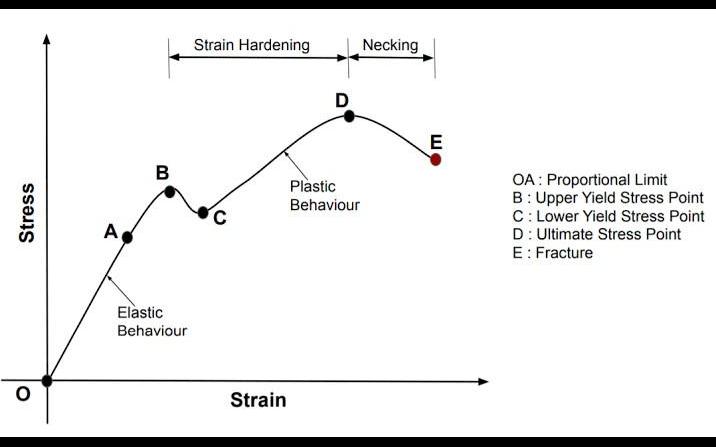

    Dear student ask questions separately. A. brittle mode of failure for Y. B. M is elastic N IS DUCTILE OR PLASTIC C. P yield strength Q- ultimate strength R-fracture point
