CSIR NET
Shivam sharma Asked a Question
August 30, 2020 1:41 pmpts 30 pts
  • CSIR NET
  • Earth Sciences

(a)the following triangular diagram with apices as limestone, dolomite and silica provides a method to classify carbonate rocks. identify the rock types indicat

(a)The following triangular diagram with apices as limestone, dolomite and silica provides a method to classify carbonate rocks. Identify the rock types indicated in its domains at X and Y. Calcite Dolomite Sillica
  • 2 Answer(s)
Answer Now
  • 0 Likes
  • 3 Comments
  • Shares
  • Sajan sarthak sahoo Best Answer

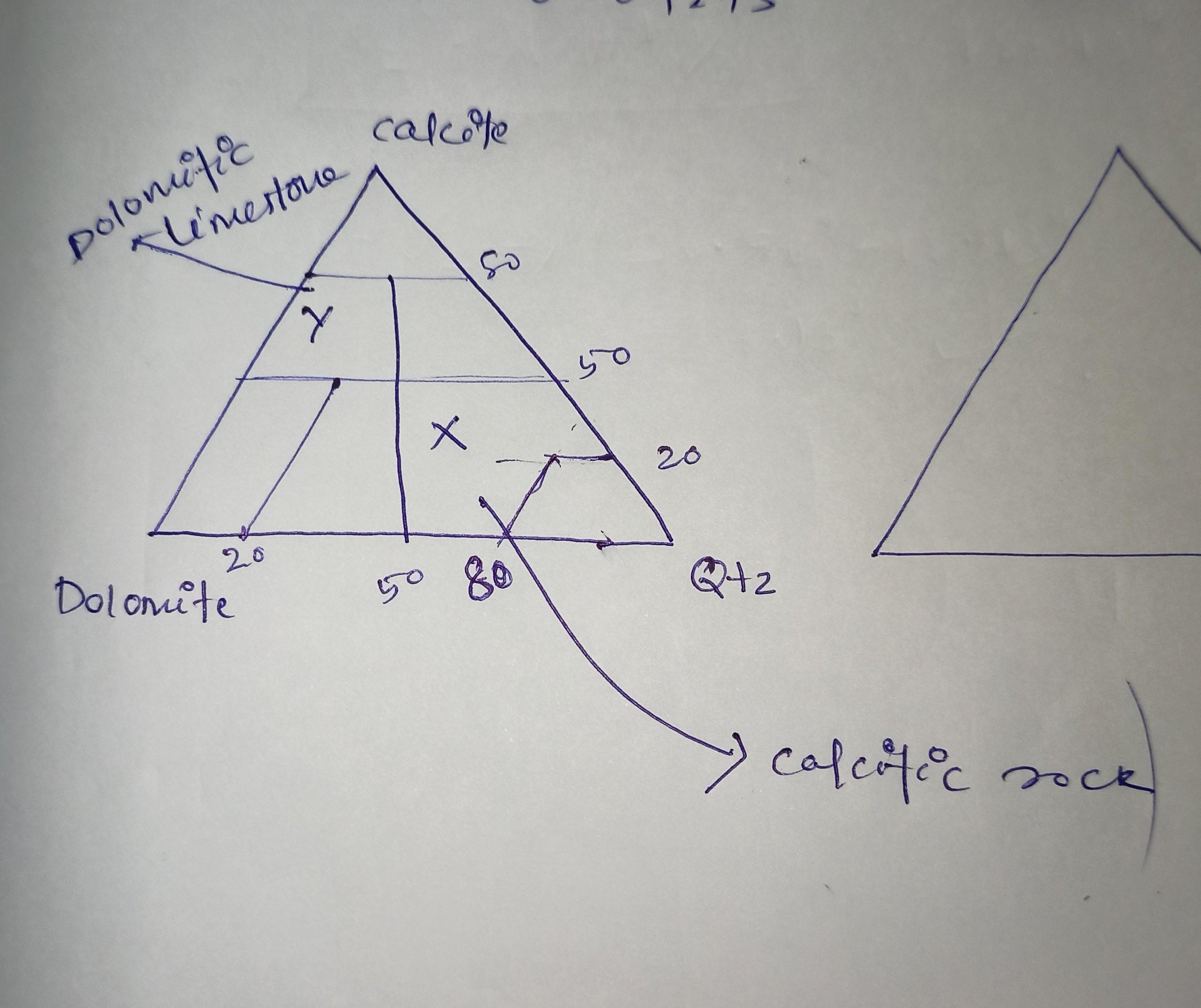

    X will be CALCITIC ROCK & Y will be DOLOMITIC limestone. I AM attaching a figure you just try to understand as it's is disoriented with the apices as given by questions.
    • cropped4859482873498402905.jpg
    • cropped5193496019044568473.jpg
    Likes(0) Reply(0)
  • Rahul pandey thankyou

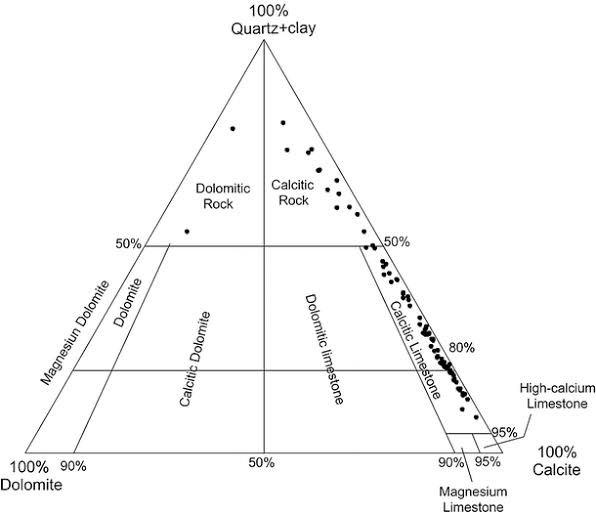

    X is impure carbonate or, non-carbonate rocks Y is impure dolomitic Limestone Please refer to the attached figure for detail.
    • cropped3874969142023222652.jpg
    Likes(0) Reply(0)
  • Shivam sharma
    Are u sure ? Because apex of triangle in the question and in this figure is different.
    Likes(0) Reply(0)
