Madula Asked a Question
June 2, 2022 6:15 pmpts 30 pts
Eduncle Digital Logic .5 Determine the SOP expression for the function f(A, B, C, D) = Em(4, 6, 8, 10, 11, 12, 15) + D(3, 5, 7, 9). AB 00 01 11 10 CD ACD Ad 00 AB 01 d CD d 11 10 AB t is AB + AB + CD + ACD Determine the POS expression for the function
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Anonymous User thankyou
    SOP is sum of minterms. Minterms are represented with 'm' , that are product ( AND operation ) of boolean variables either in normal form or complemented form. In the above examp...
    Show more

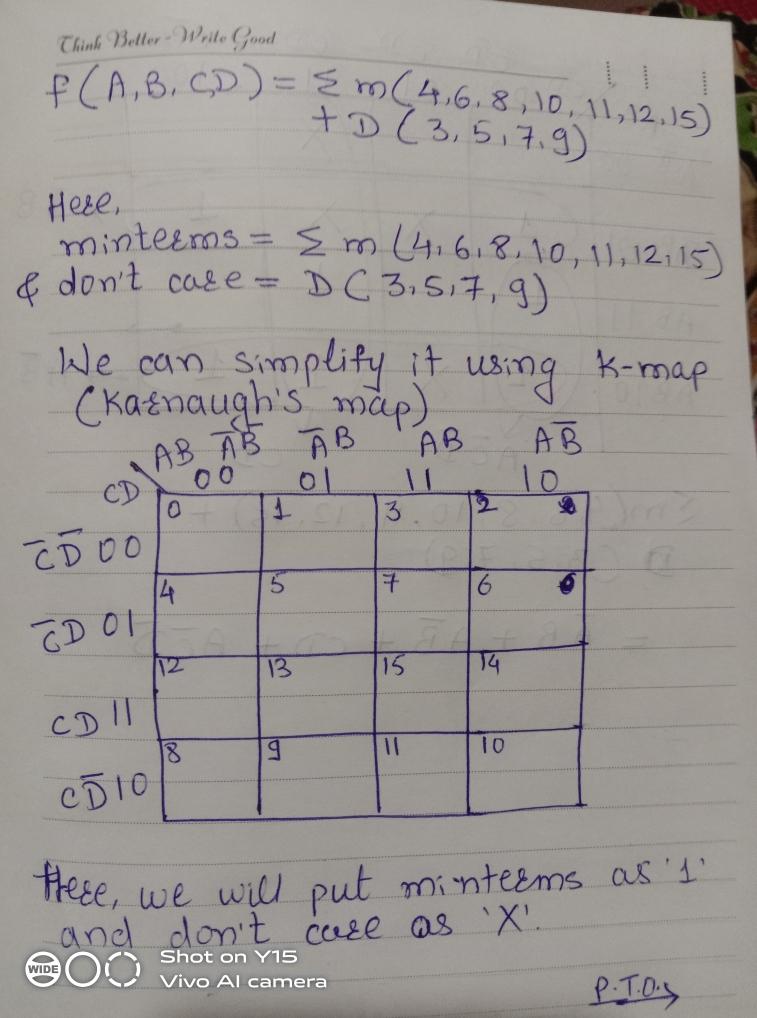

    • cropped3943633531485347853.jpg

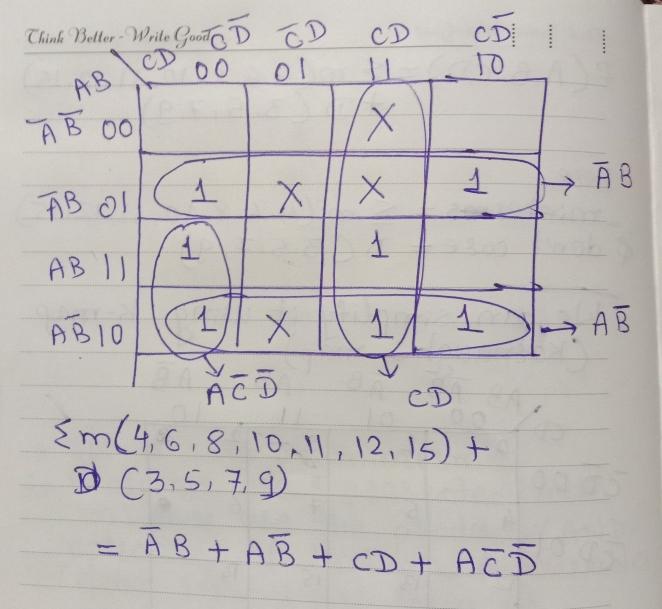

    • cropped6144298109990333039.jpg

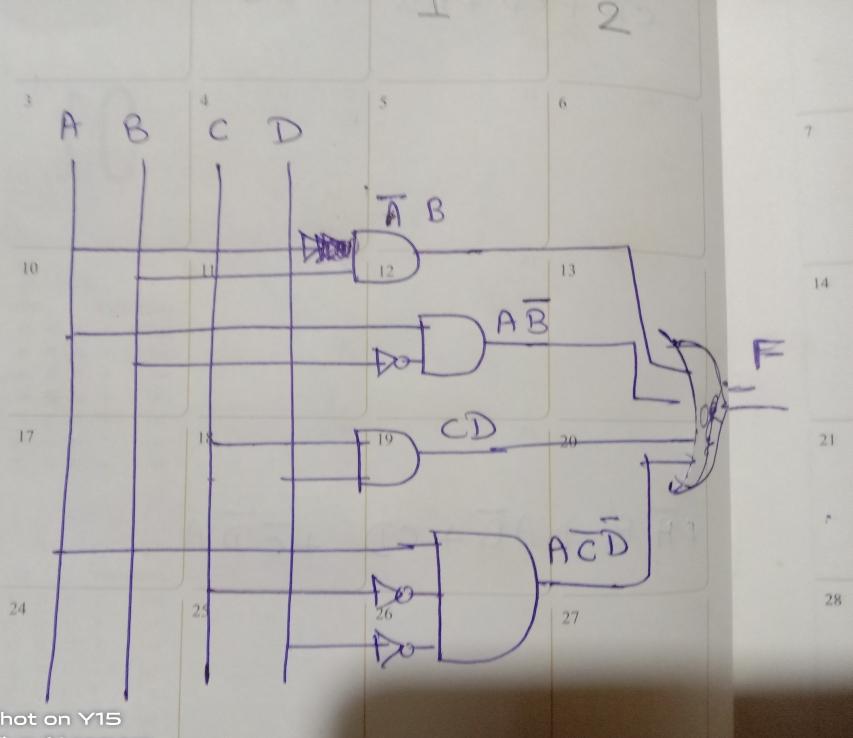

    • cropped4274746718343777582.jpg
