For the jk flip-flop shown in the given figure j = = q and k 1 if it is initially cleared and then clocked for 6 pulses. the sequence at the q- output will be (

For the JK flip-flop shown in the given figure J = = Q and K 1 If it is initially cleared and then clocked for 6 pulses. The sequence at the Q- output will be (b) 010000 (a) 010101 (c) 0100 (d) 010010 Q CLK- K
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 3 Comments
  • Shares
  • Komal Chand
    thank u
    Likes(0) Reply(0)
  • Chandra dhawan
    dear answer A
    Likes(1) Reply(0)
  • Chandra dhawan thankyou

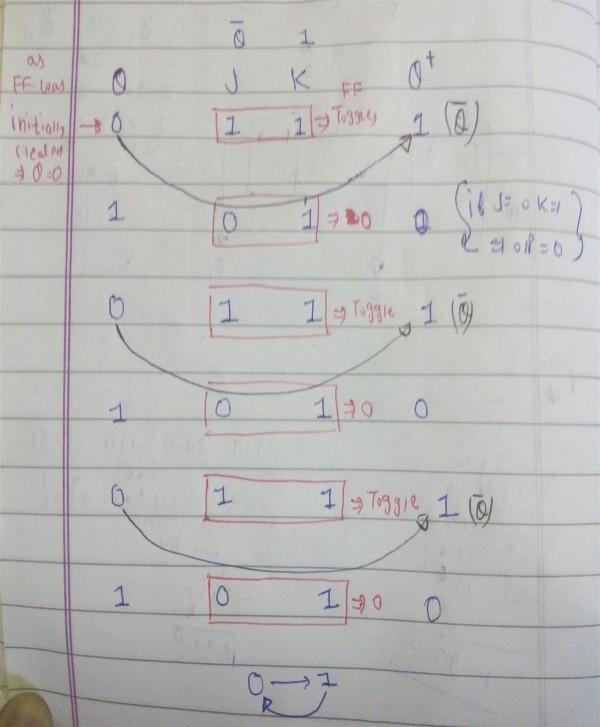

    option D is correct
    • cropped8342147524787396039.jpg
    Likes(0) Reply(3)
    Komal Chand
    how option D is correct?
