Unayak posted an Question
March 22, 2020 • 20:10 pm 30 points
  • CSIR NET
  • Physical Sciences

Here transmission axes means , it is for both polaruser and analyser or only for analyser.

here transmission axes at 60 means , it is for both polaruser and analyser or only for analyser. in its solution it is given for only analyser.

1 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Somnath

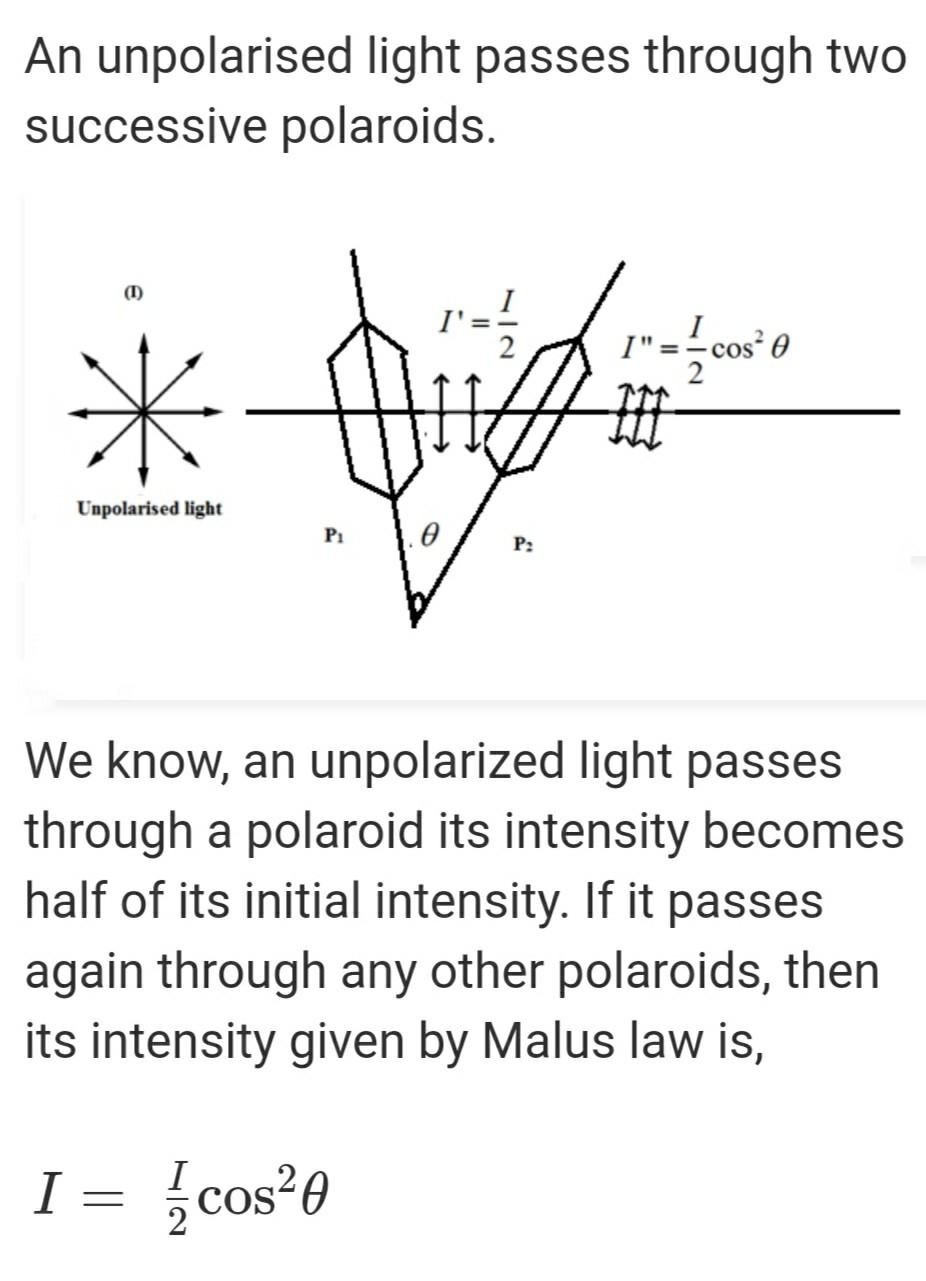

    A image was attached with this.But due to technical error it is not uploaded.I am uploading it now.

  • comment-profile-img>
    Somnath best-answer

    Analyser and the polarizer are both Polaroid.Their name are different because of their uses. Polarizer are used to polarize the unpolarized light.\nAnalyser are used to check whether the light is polarized or not. Transmission axis of polarizer is the direction in which light get polarized. Transmission axis of analyser is the direction,light polarized in this direction can only passes through it. In this particular problem the angle is the angle between the transmission axis of polarizer and analyser. See the attachment for better understanding.

    eduncle-logo-app

    A image was attached with this.But due to technical error it is not uploaded.If you have any problem then I will try to send it again.
