In an experiment involving a ferromagnetic medium, the following observations were made. which one of the plots does not correctly represent the property of the

In an experiment involving a ferromagnetic medium, the following observations were made. Which one of the plots does NOT correctly represent the property of the medium? (Tc is the Curie temperature) (a) Magnetic Field 1/Tc 1/T (c) (d) T

1 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Chandra prakash

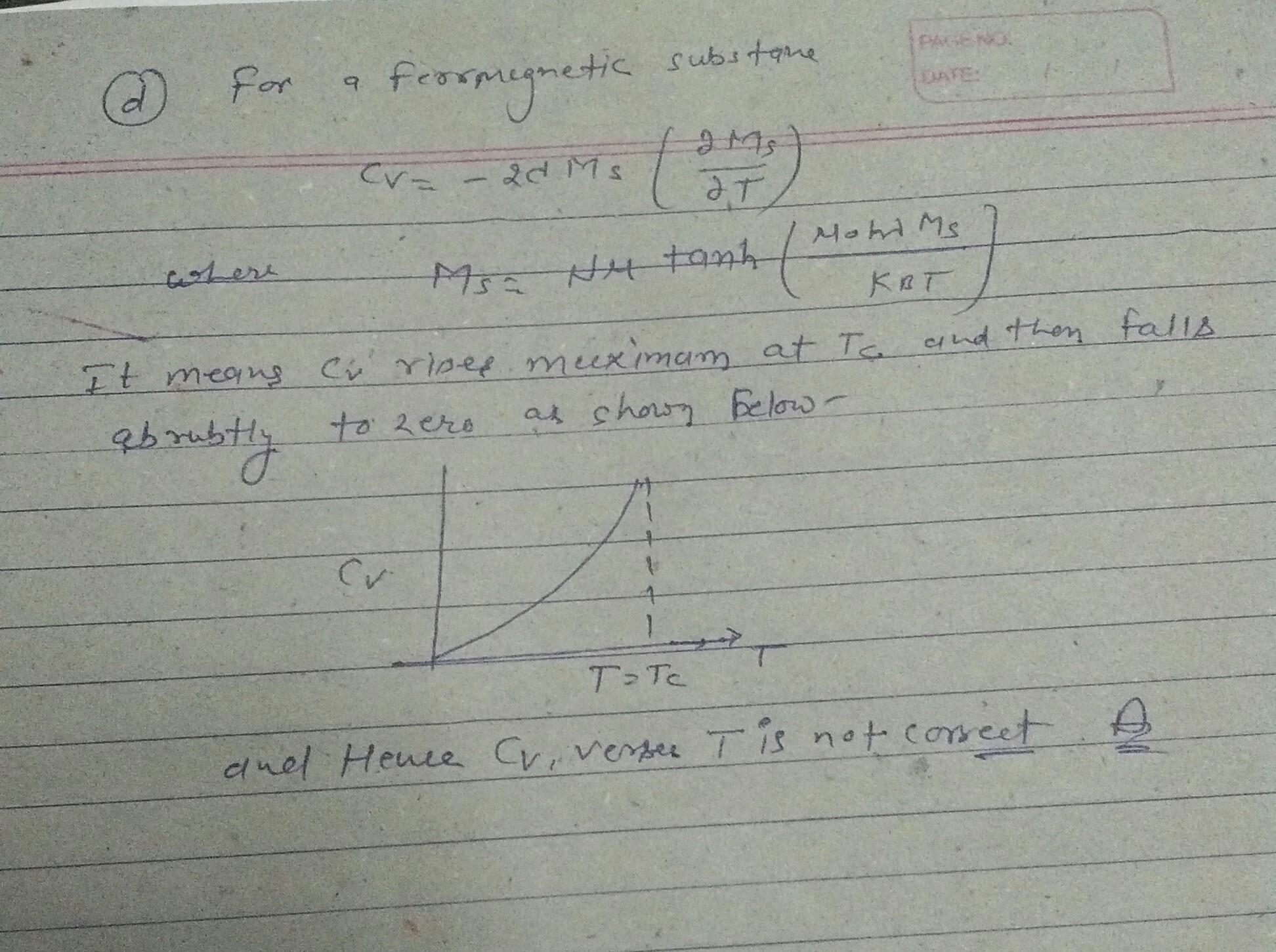

    see attached file dear I hope it's more help full...

  • comment-profile-img>
    Ruby negi best-answer

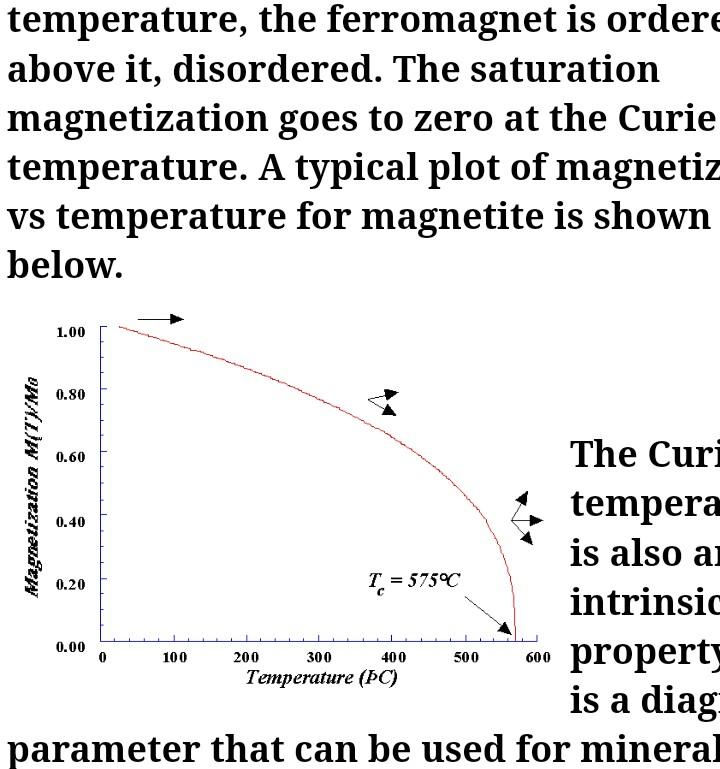

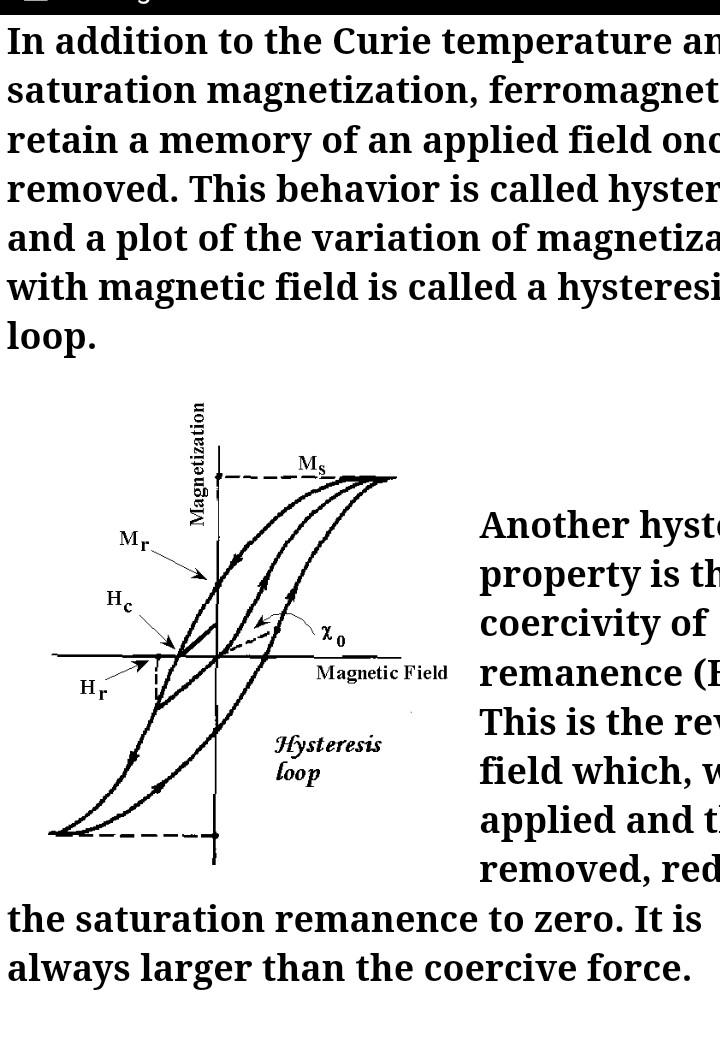

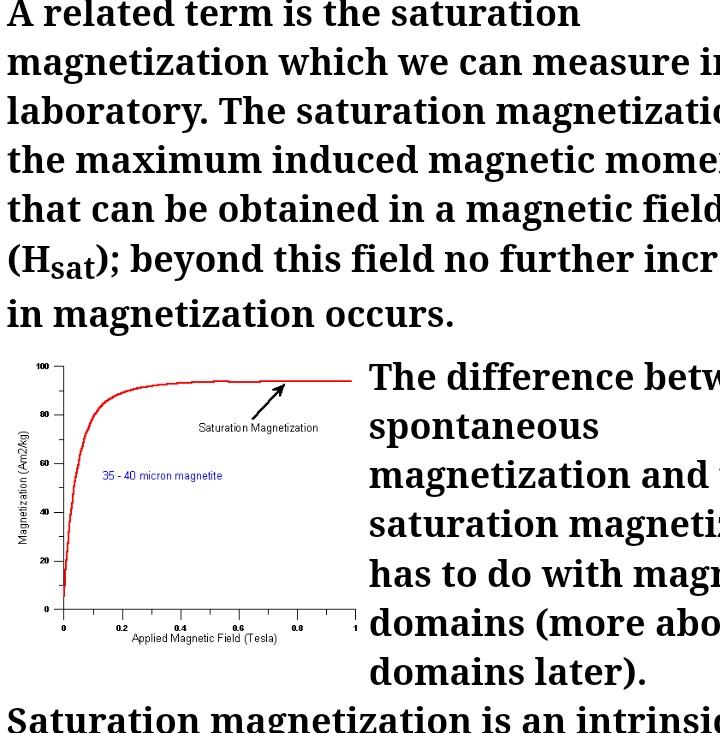

    last three graphs is of ferromagnetic.. hope by seeing these graphs you will get to know which option is correct..
