Vikash raj shrivastava Asked a Question
April 20, 2021 9:14 ampts 30 pts
In the circuit shown in the figure, the BJT has a current gain (P) of 50. For an emitter basa 47. voltage V = 600 mV, the emitter collector voltage VEc (in Volts) is (A) 1 volt (B) 2 volt (C) 3 volt (D) 4 volt
  • 1 Answer(s)
  • 0 Likes
  • 2 Comments
  • Shares
  • Ruby negi
    please attach circuit diagram first..
    Likes(1) Reply(0)
  • Monika thankyou

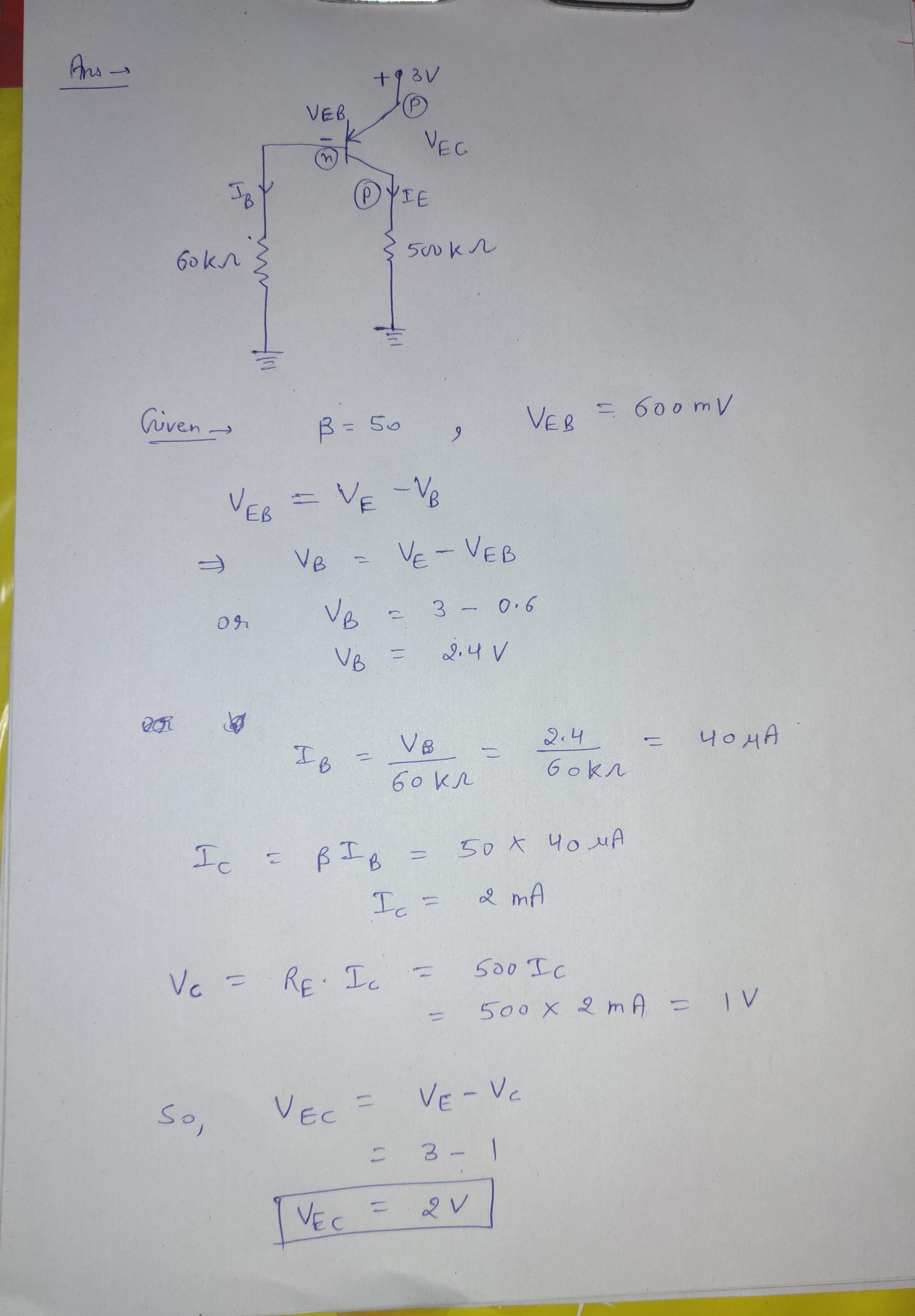

    option (b) is correct see the attachment
    • cropped885677623522929592.jpg
    Likes(0) Reply(2)
    Vikash raj shrivastava
    mam uper 3 aur niche 500ohm kaise hua concept samjh na aya
