Output waveform of opamp

output waveform of opamp.plz give a brief idea of drawing output of an opamp

1 Answer(s) Answer Now
  • 0 Likes
  • 1 Comments
  • 0 Shares
  • Prashant kumar best-answer

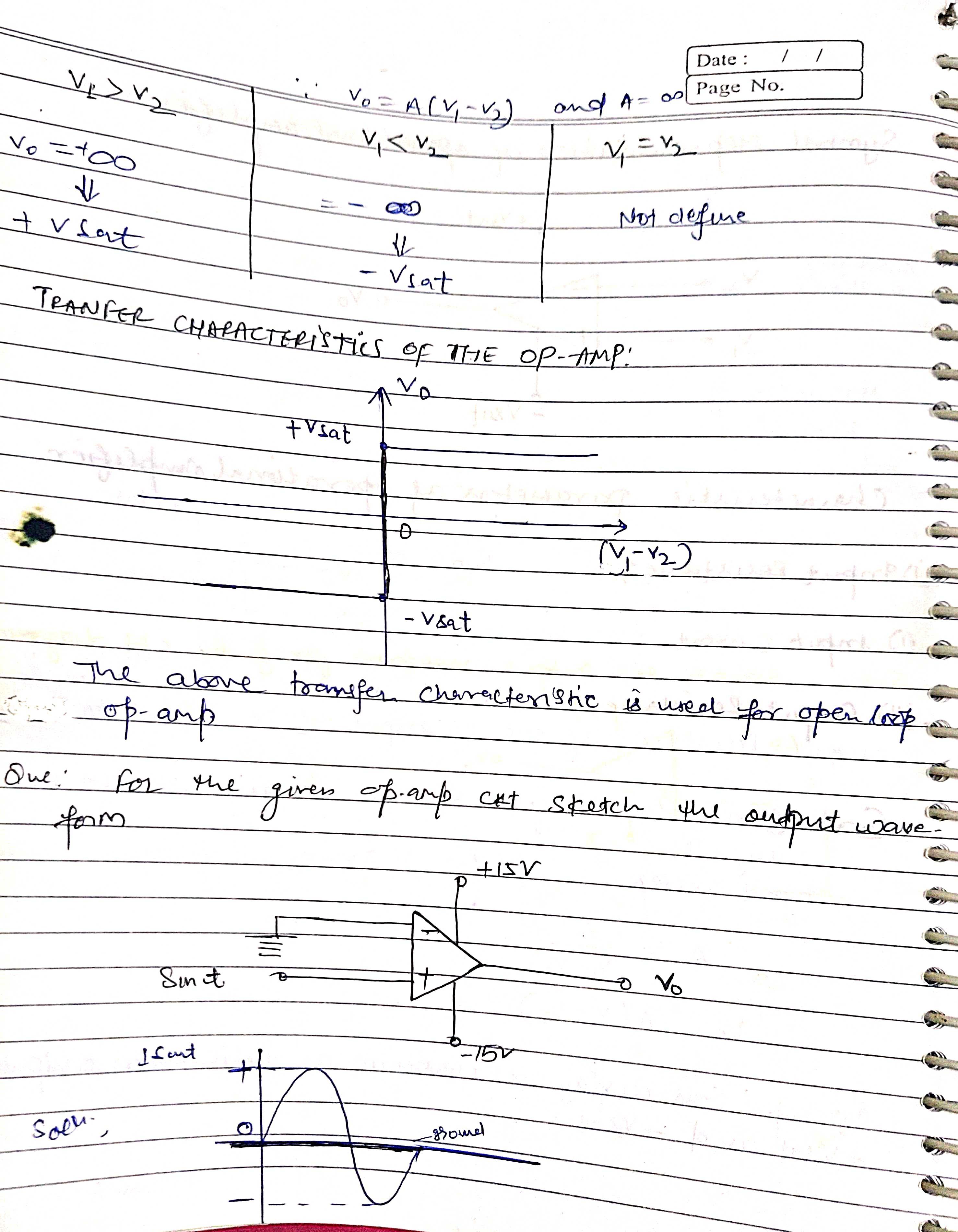

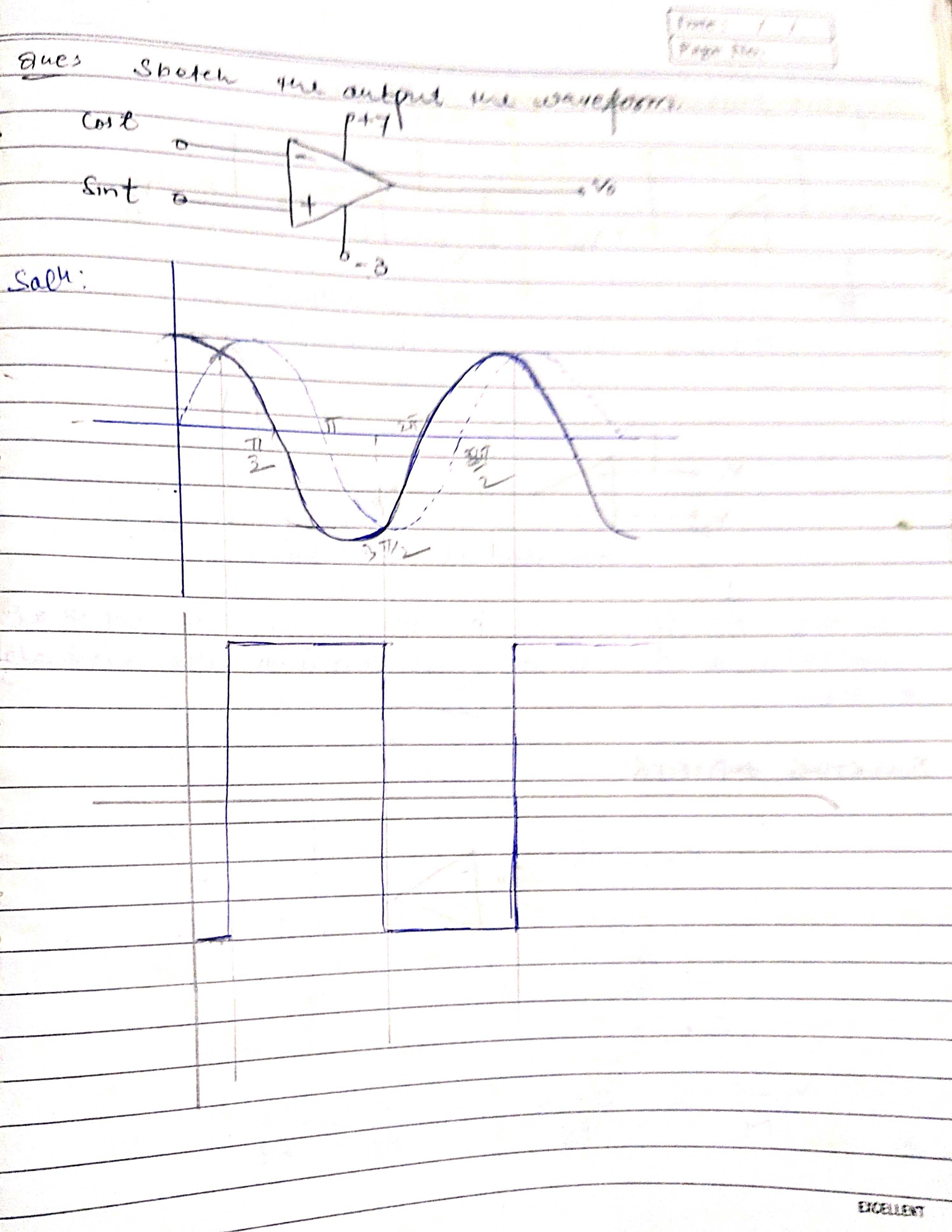

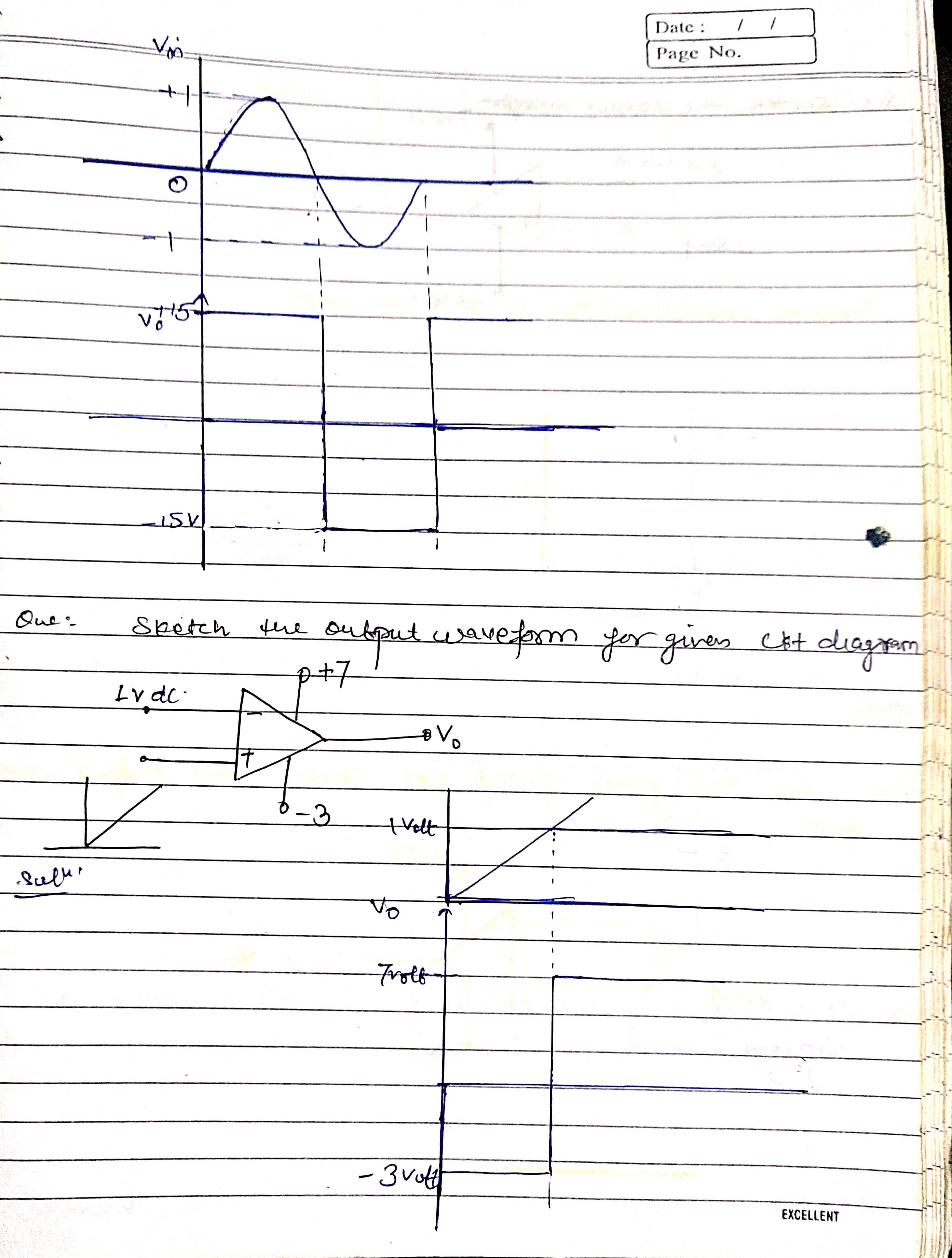

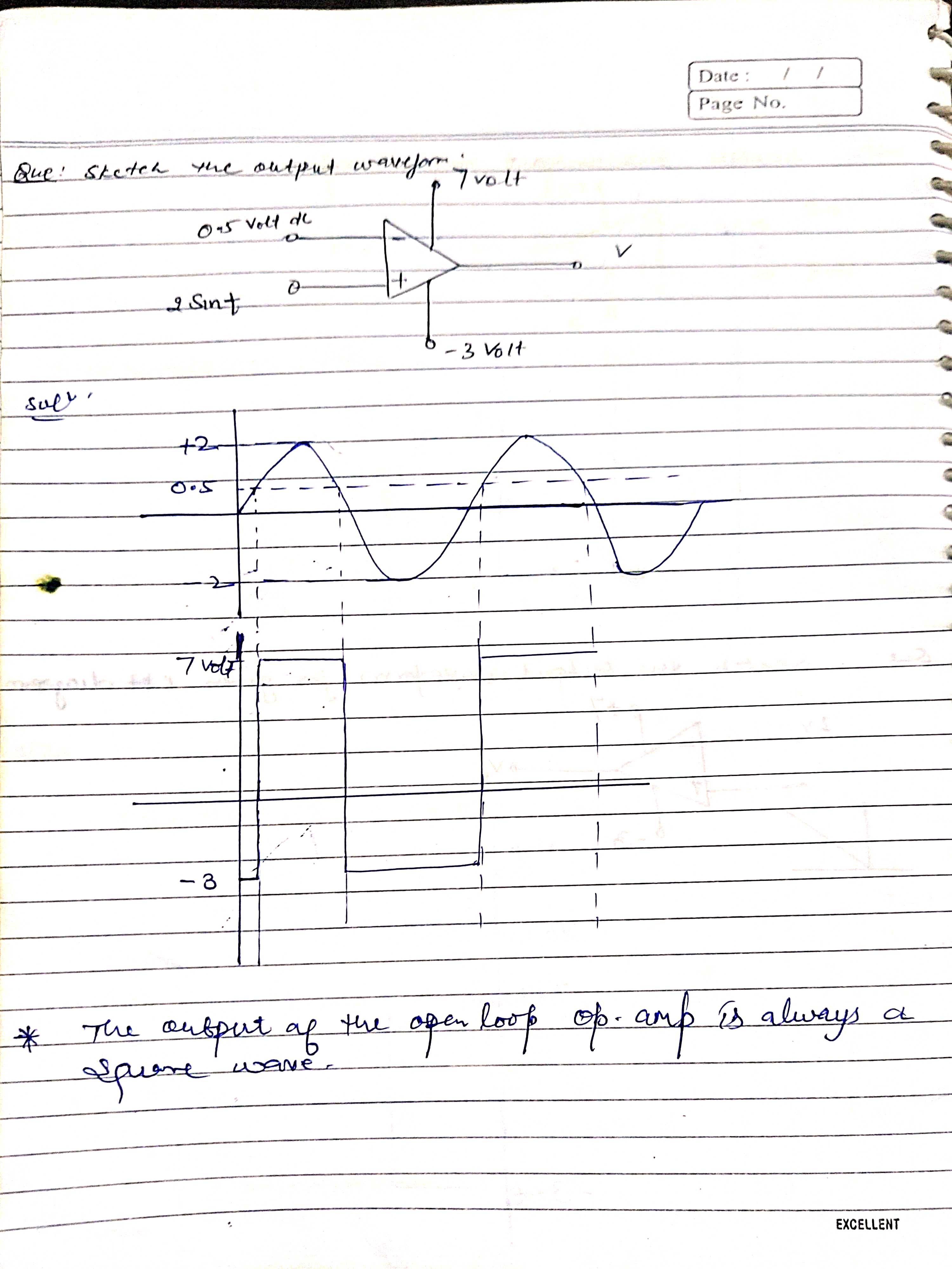

    Your question is not clear but as I understand I try to explain. It depends on what is at the input and what is the saturation values of the given op-amp ckt. Actually op-amp gives only square wave on the output whether either sinosuidal wave or saw tooth wave or any other on its input. try to understand following attachments.
