Sachidananda posted an Question
April 12, 2020 • 02:15 am 10 points
  • UGC NET
  • Computer Science & Applications

Pl explain the marked portion in the image attached.

pl explain the marked portion in the image attached.

1 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Nilesh Kumar Best Answer

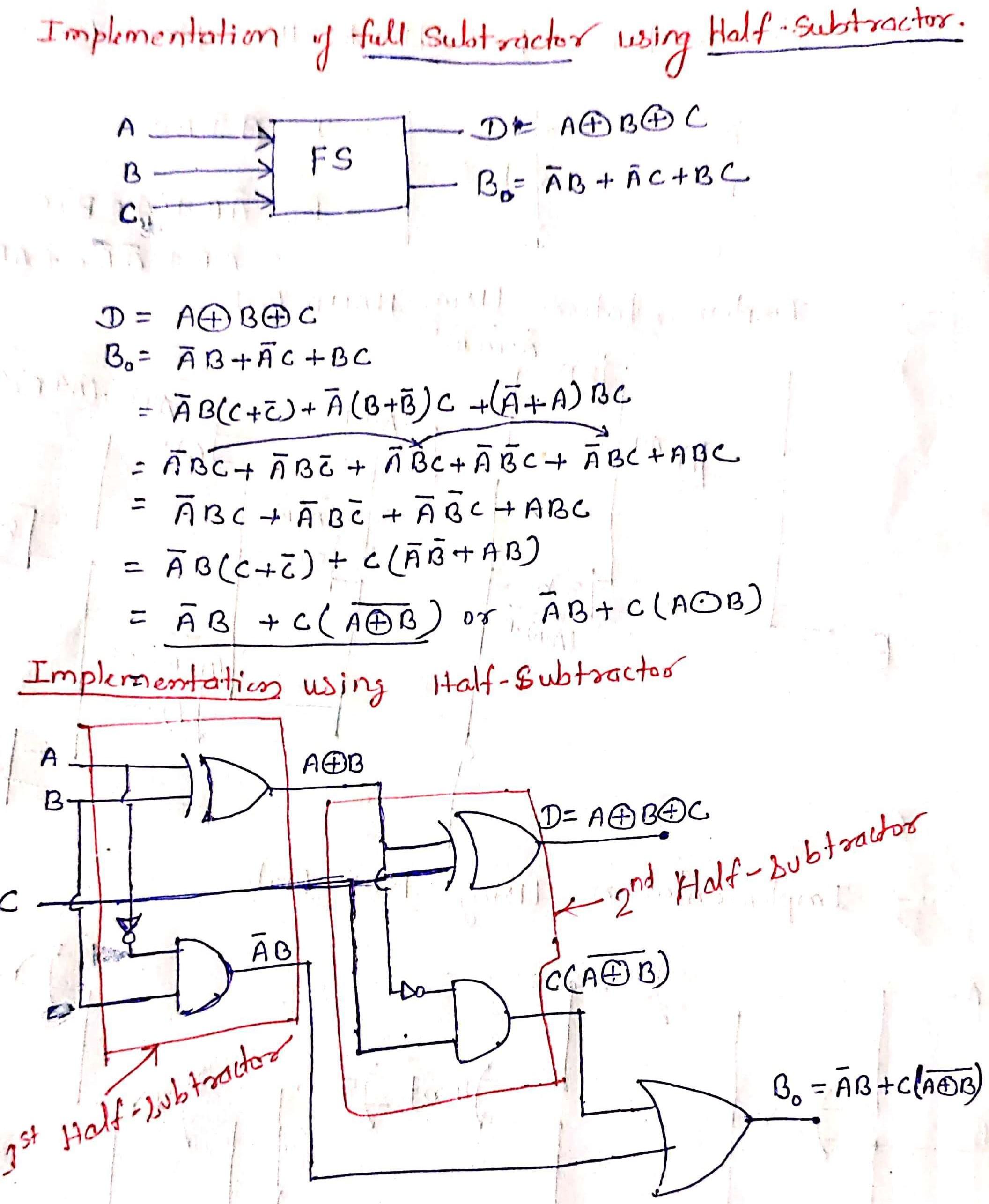

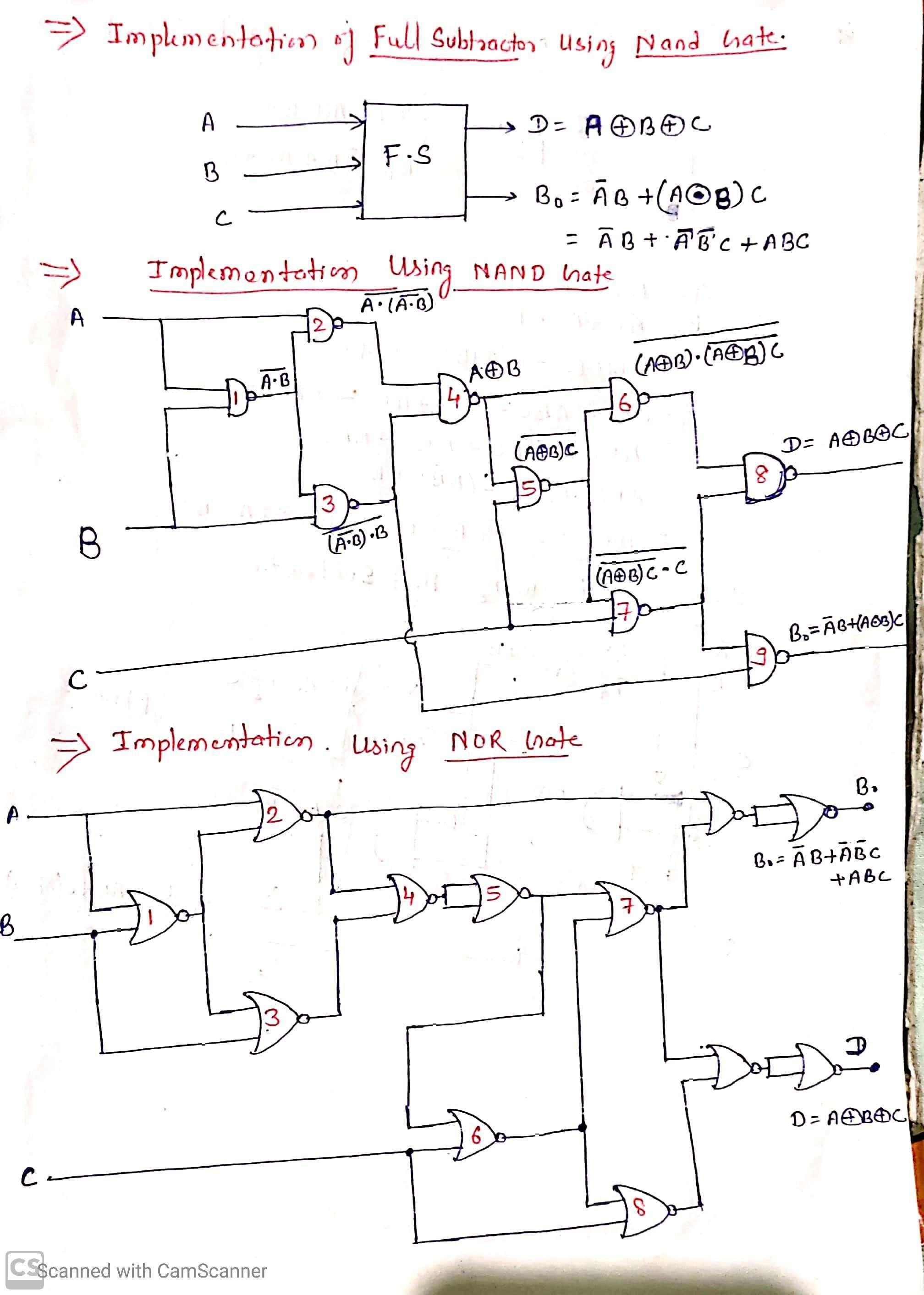

    kindly see the attachments in which i have drawn the diagram of Full Subtractor using 2half Subtractor or 9 NAND gate and also using NOR gate.If further if you have any doubt then contract.

  • Sachidananda Pati

    It is a great surprise that no one could able to explain the queries.
