Sachidananda posted an Question
April 18, 2020 • 00:21 am 20 points
  • UGC NET
  • Computer Science & Applications

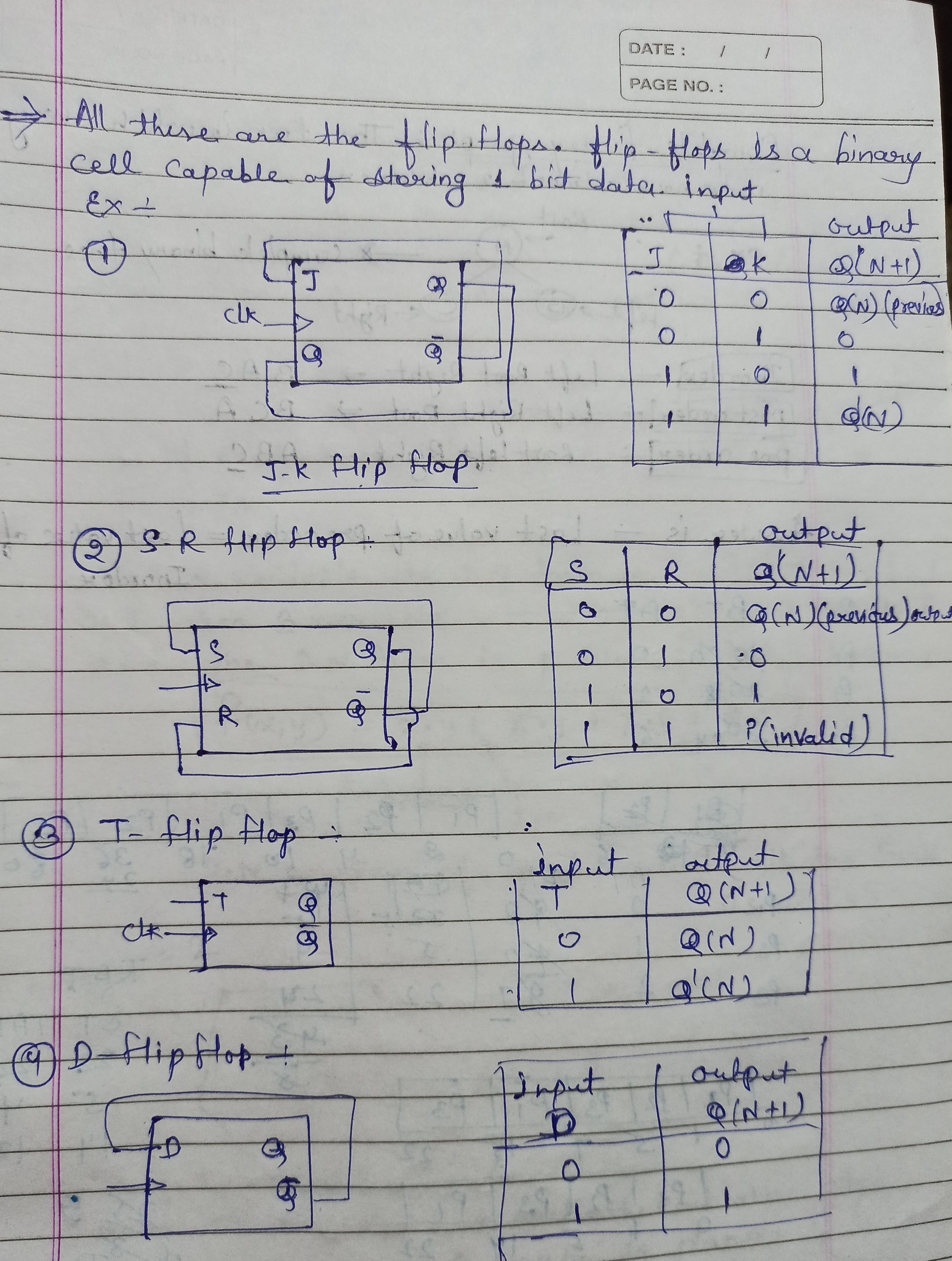

Pl explain the six diagrams of the study matetial, image of which is attached.

Pl explain the six diagrams of the study matetial, image of which is attached. Th diagrams are given without any explanation. Hence it is not understood the purpose of these diagrams. It will be helpful, if the same is explained in details. thanks and regards

1 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Komal bhati Best Answer

    explained... hope you got it..

    eduncle-logo-app

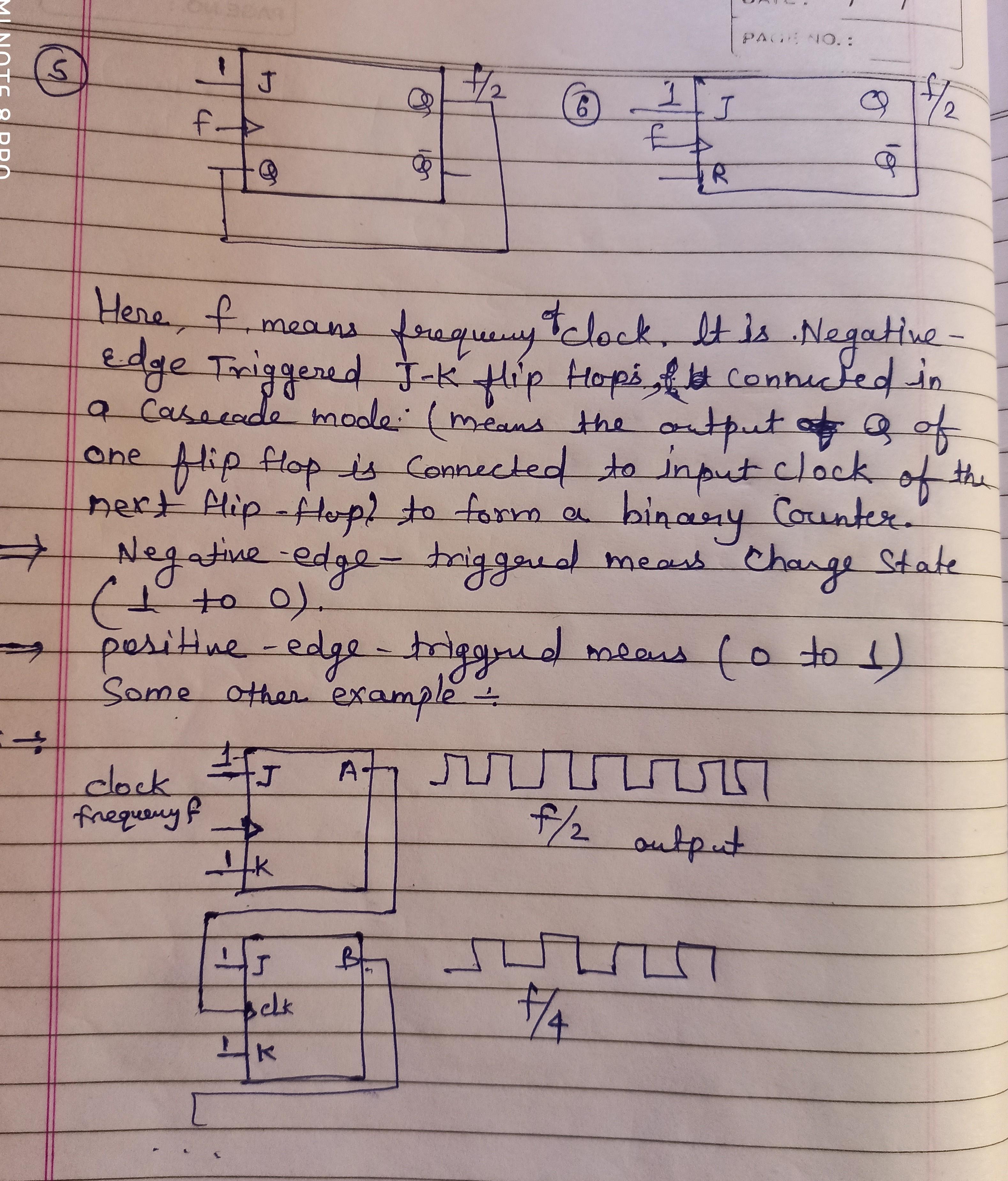

    But there are six diagrams. in some cases inputs are 1. in some cases in places of clock f is written. in some cases output is given as f/2. pl explain.

whatsapp-btn
