Rajmohan Asked a Question
July 24, 2021 10:38 pmpts 30 pts
  • CSIR NET
  • Physical Sciences

Please explain the circuit diagram and also the sum of voltages how to apply kvl and final answer

please explain the circuit diagram and also the sum of voltages how to apply kvl and final answer
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Monika verma 1 thankyou

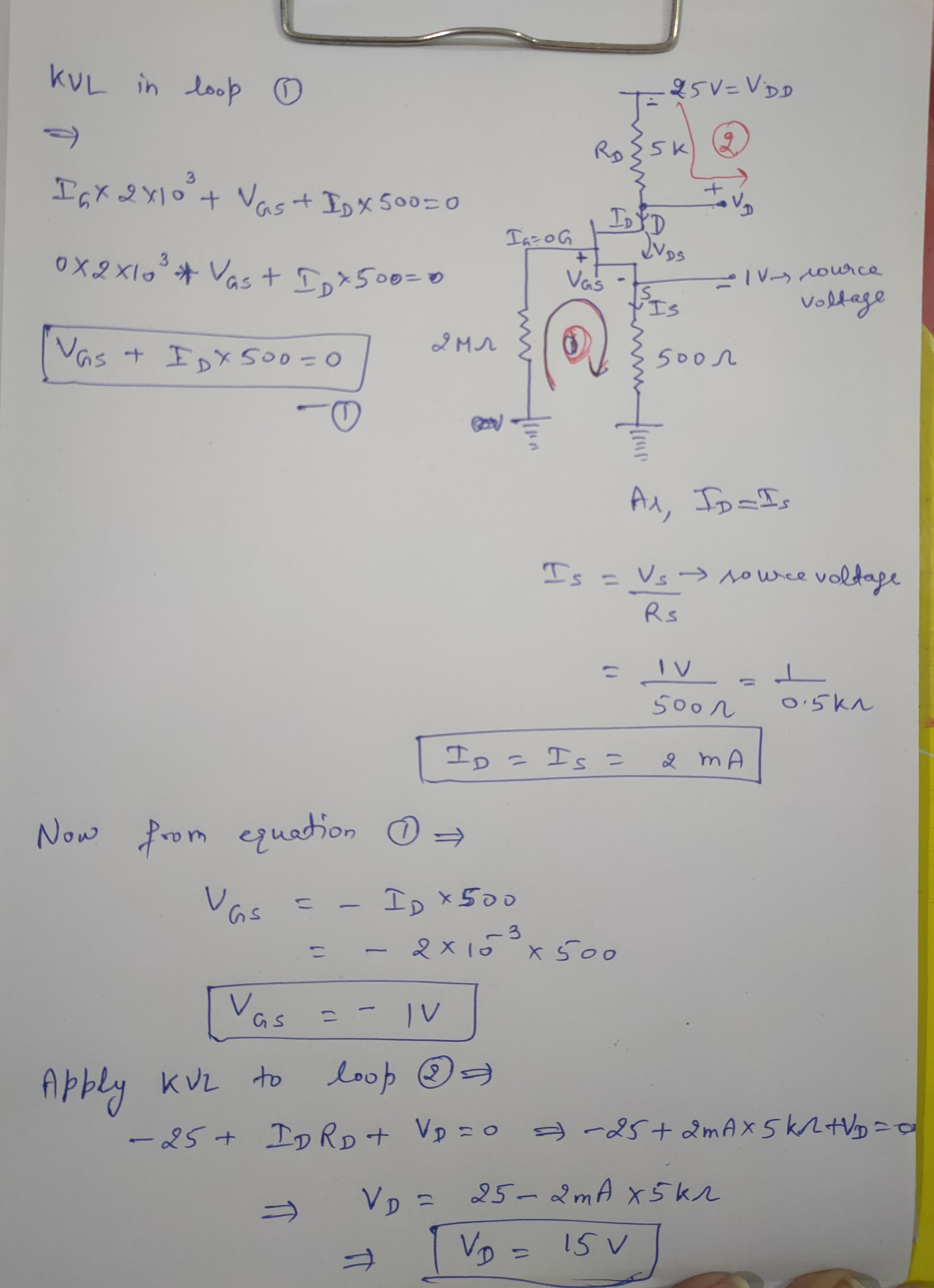

    see the attachment
    • cropped4719349979725057514.jpg
    Likes(0) Reply(0)
