Debanjana Adhikari posted an Question
May 16, 2020 • 16:57 pm 30 points
  • CSIR NET
  • Physical Sciences

Please provide the corresponding theory

The pins 0, 1, 2 and 3 of part A ofa microcontroller are connected with resistors to drive Vcc an LED at various intensities as shown in the figure. For Vec=4.2V and a voltage drop of 1.2 V across the LED, the range (maximum current) and resolution (step síze) of the drive current are, respectively, AP 13 k A W 1.5k 3k 6k uC A (a) 4.0 mA and 1.0 mA (b) 15.0 mA and 1.0 mA (c) 75 mA and 0.5 mA (d) 4.0 mA and 0.5 mA Ao w

1 Answer(s) Answer Now
  • 0 Likes
  • 6 Comments
  • 0 Shares
  • comment-profile-img>
    Abhishek singh

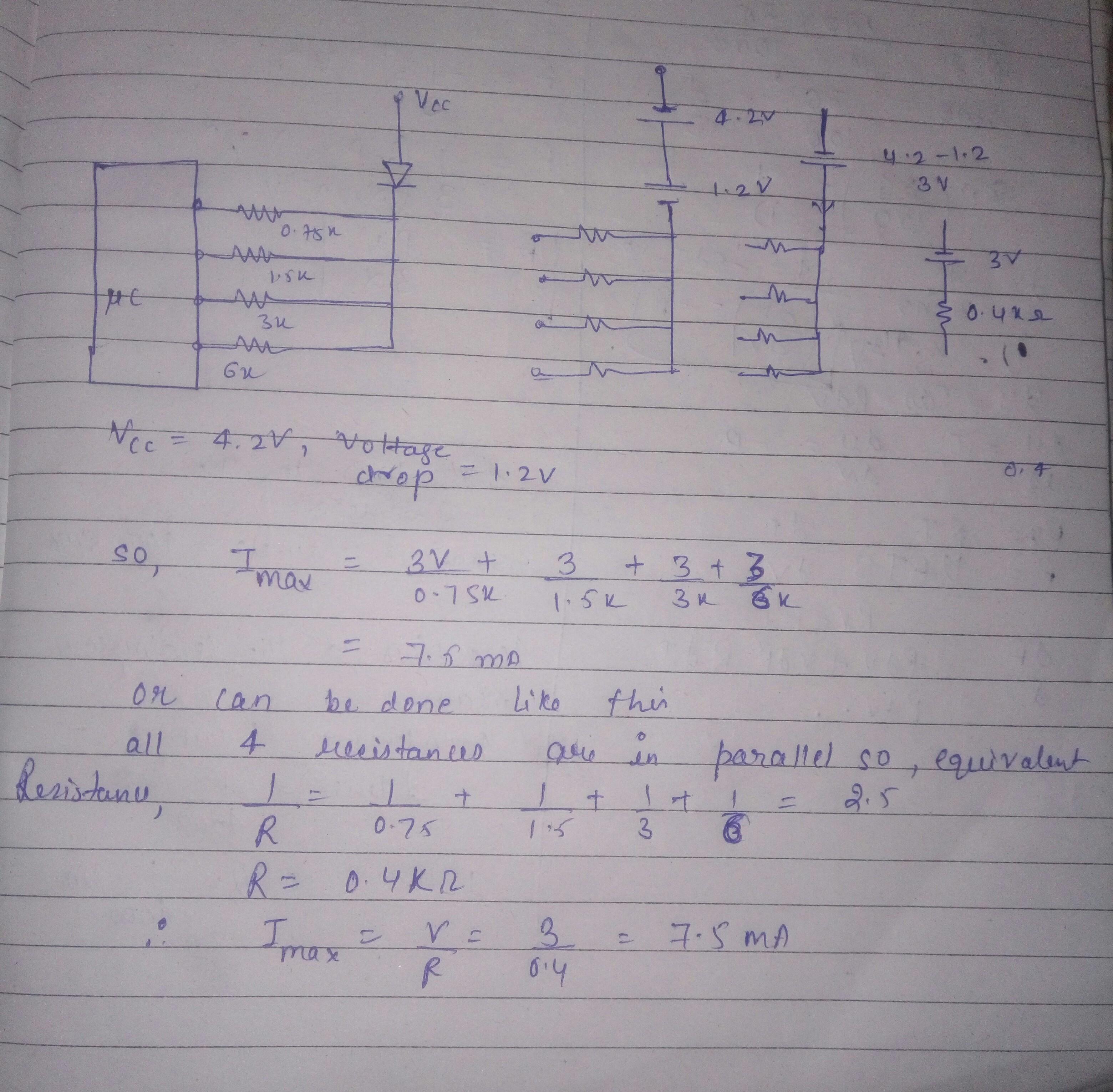

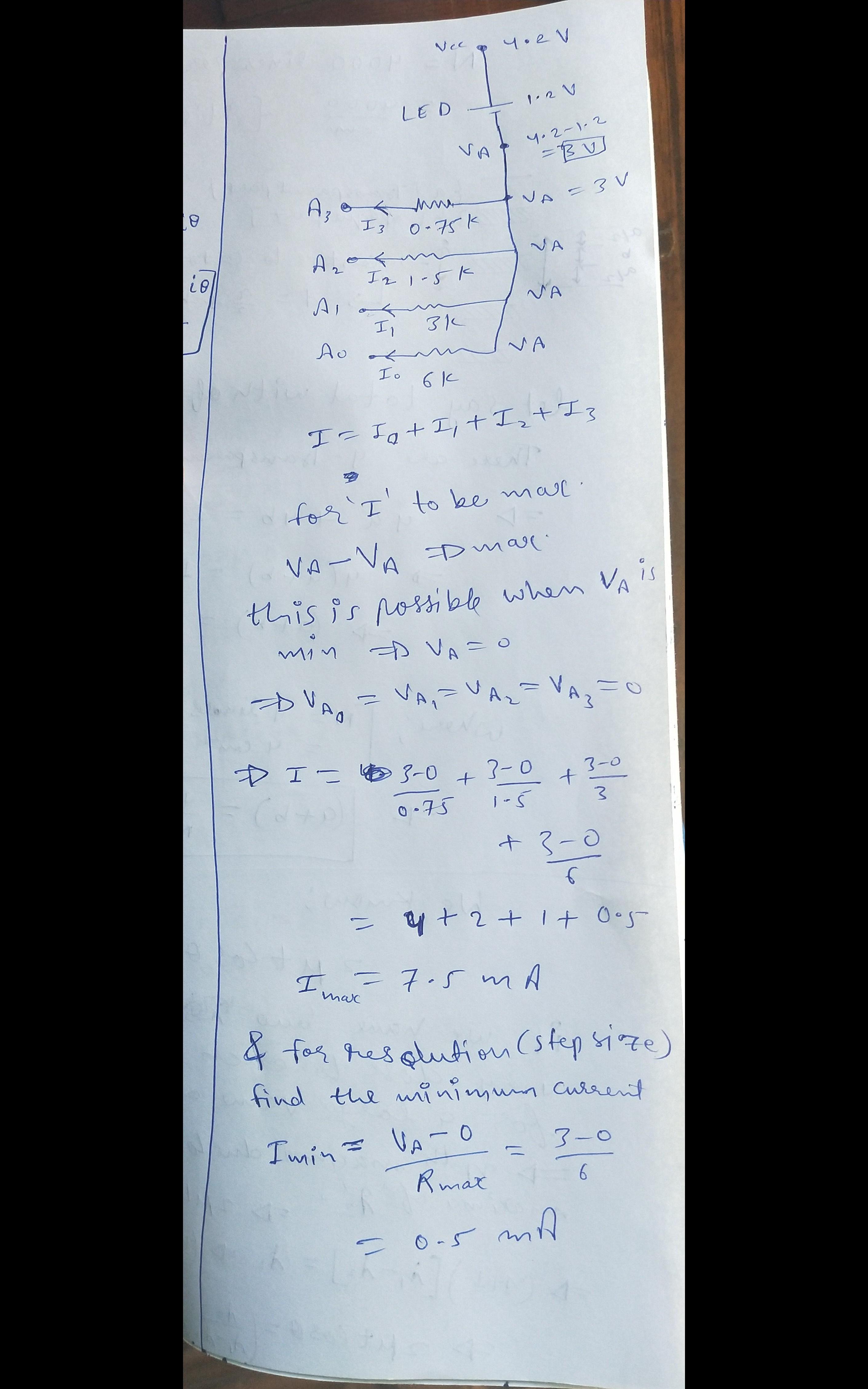

    Complete solution with explaintion is attached. go through it. And ask doubts if any. Best regards.

  • comment-profile-img>
    Ruby negi

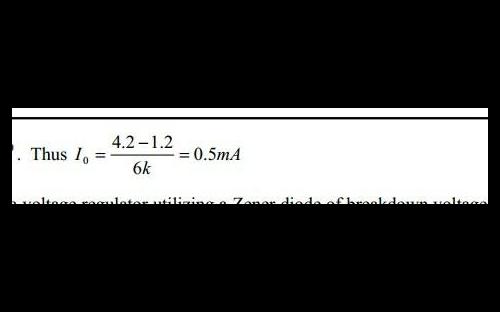

    for minimum current, when current flow through max resistance that is 6k so current is 3/6=0.5mA.... hope you get...

  • comment-profile-img>
    Dhairya sharma best-answer

    and resolution means it's maximum power which it can distribute for this we do voltage difference / mimium resistance. in last we take all the resistance and voltages . here onky minimun so that we can find resolution. means it's power.see attached

  • comment-profile-img>
    Dhairya sharma

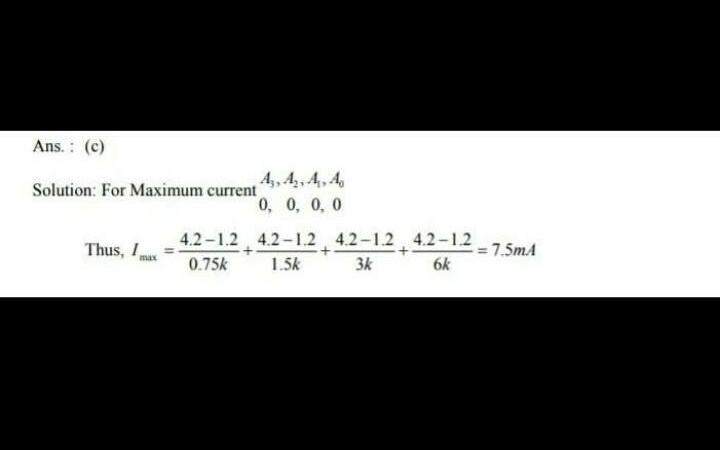

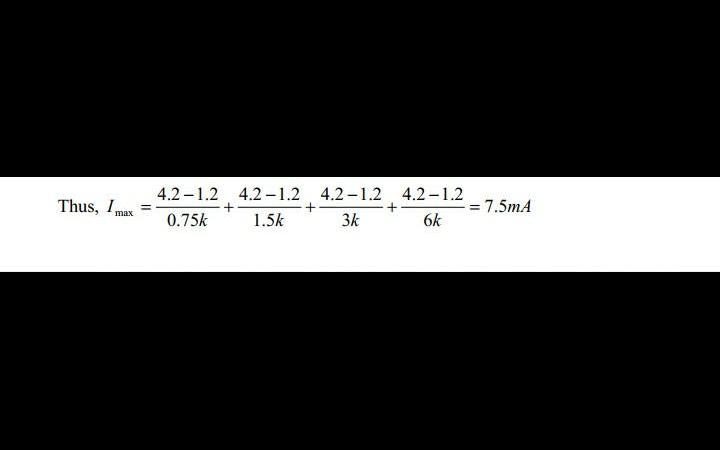

    dear for maximum current what we will do.... just (Vcc - voltage drop) / minimum resistance.like m attaching

  • comment-profile-img>
    Ruby negi

    solution

    eduncle-logo-app

    what does it mean that A0 A1 A2 A3 zero for maximum current? why is this happening??

    eduncle-logo-app

    current flow from high potential to low potential . if A0,A1,A2,A3 if at zero then max current will from from battery.
