Debanjana adhikari Asked a Question
May 26, 2020 8:33 ampts 30 pts
  • CSIR NET
  • Physical Sciences

Plese explain quarter & half wave plate in detail

A plane wave (? +iý)E, explilkz - ar)] after passing through an optical element emerges as(f-iý)E, explilkz - o). where k and o are the wavevector and the angular frequency, respectively. The optical element is a (a) quarter wave plate (c) polarizer (b) half wave plate (d) Faraday rotator
  • 3 Answer(s)
Answer Now
  • 1 Likes
  • 6 Comments
  • Shares
  • Chandra dhawan
    see attached file
    Likes(0) Reply(0)
  • Chandra dhawan thankyou

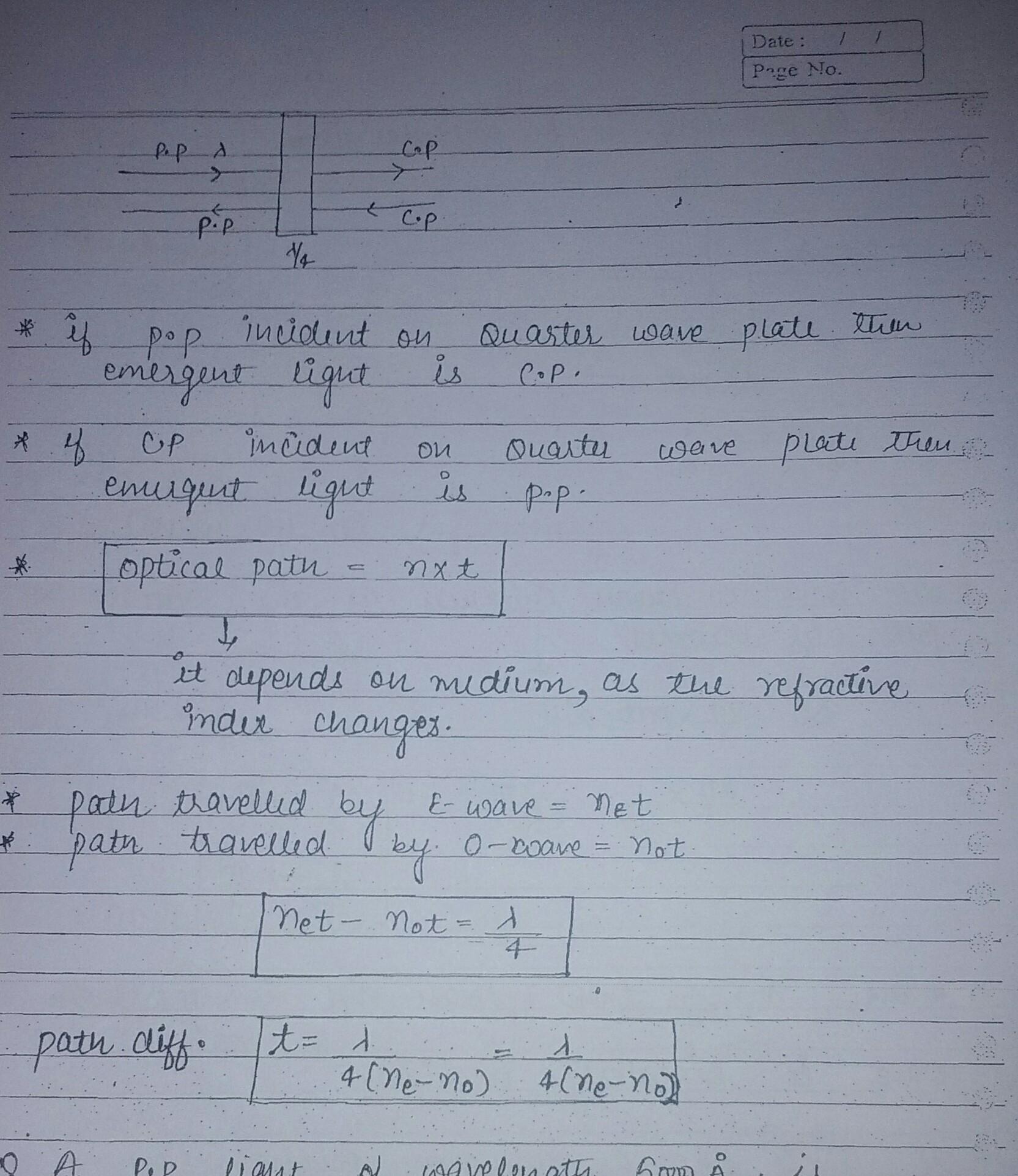

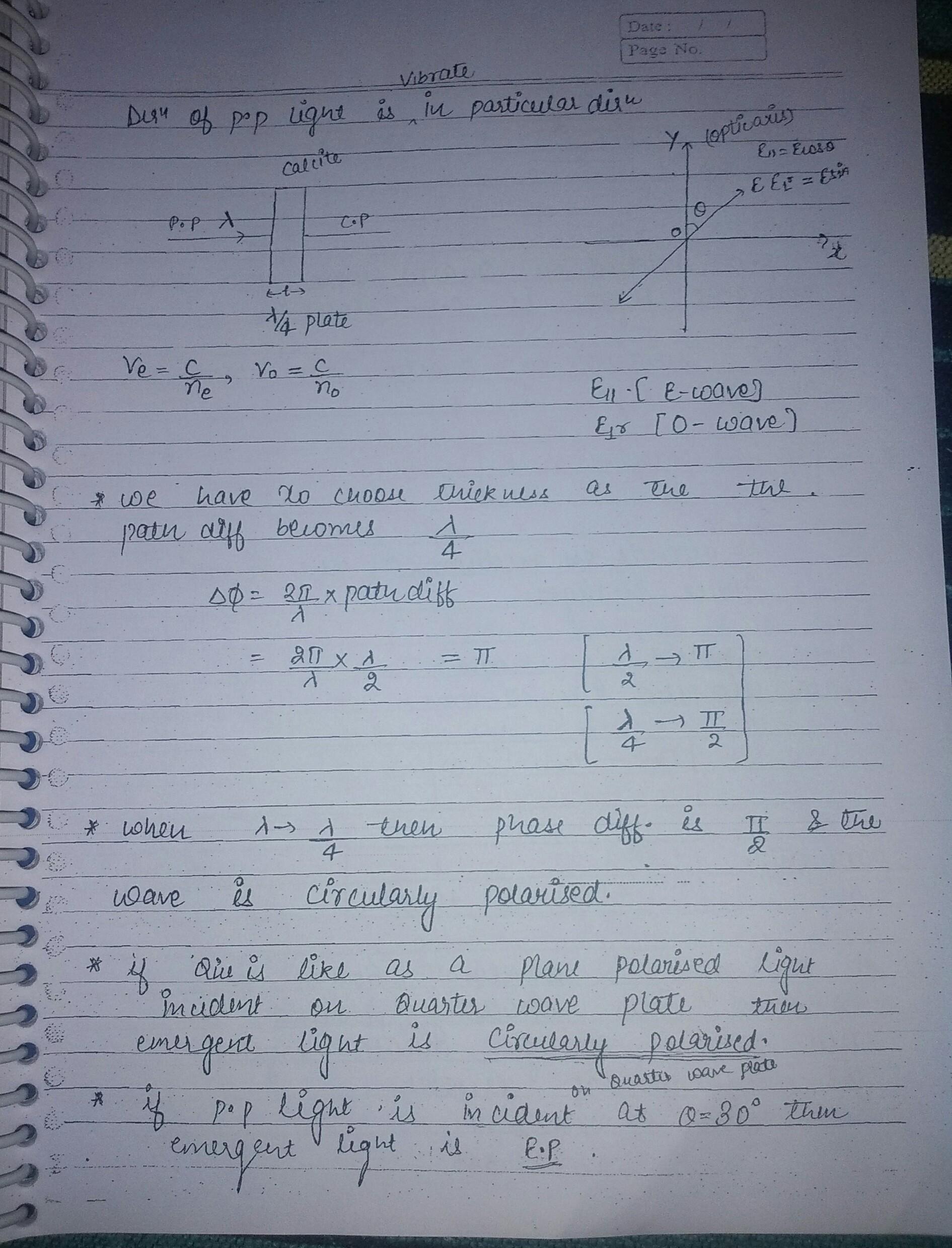

    Quarter wave plate & half wave plate are made from doubly refracting crystal .......for further explanation see attached file it will help you alot.... best regards
    • cropped-296854830.jpg
    • cropped-2009227805.jpg
    • cropped-270217440.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    I hope you got it my point dear
  • Dhairya sharma

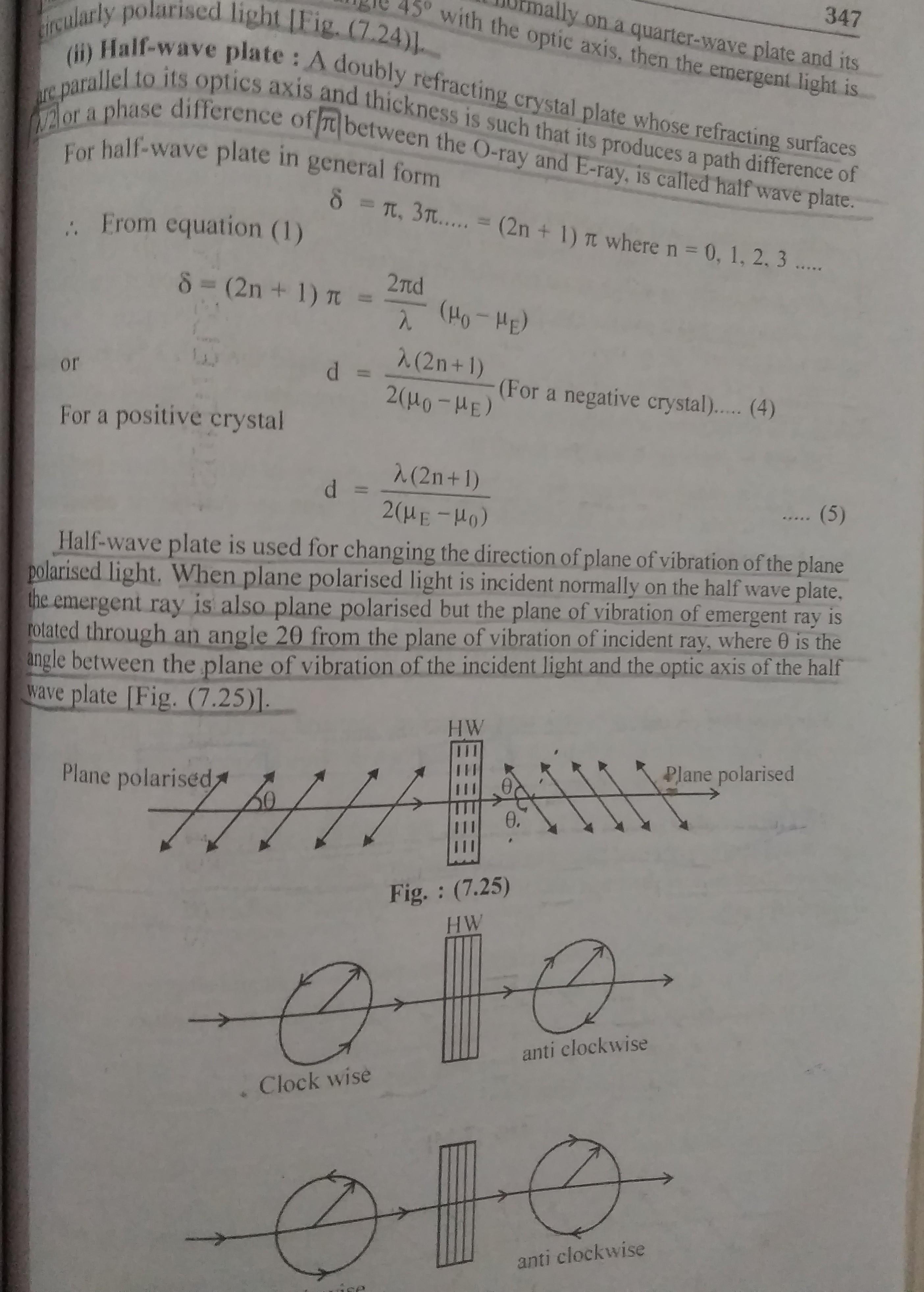

    here is details of half wave plate.
    • cropped5804003267126127398.jpg
    Likes(1) Reply(4)
    Dhairya sharma
    half wave plate can change the direction of rotation of left handed elliptically or circularly polarised into respective right handed elliptically or circularly polerised light and...
    Show more
  • Ruby negi
    yeah,the right ans is half wave plate as the only direction of vibration of e.f is changed ,nature of wave is not changing... that's why half wave plate is the option...
    Likes(2) Reply(0)
  • Abhishek singh thankyou
    The optical element used here is Half Wave Plate(HWP). As you can see, the incoming and outgoing waves hase same nature, except that the sign of Y component changes here. Both inco...
    Show more
    Likes(2) Reply(1)
    Abhishek singh
    has*
  • Dhairya sharma Best Answer

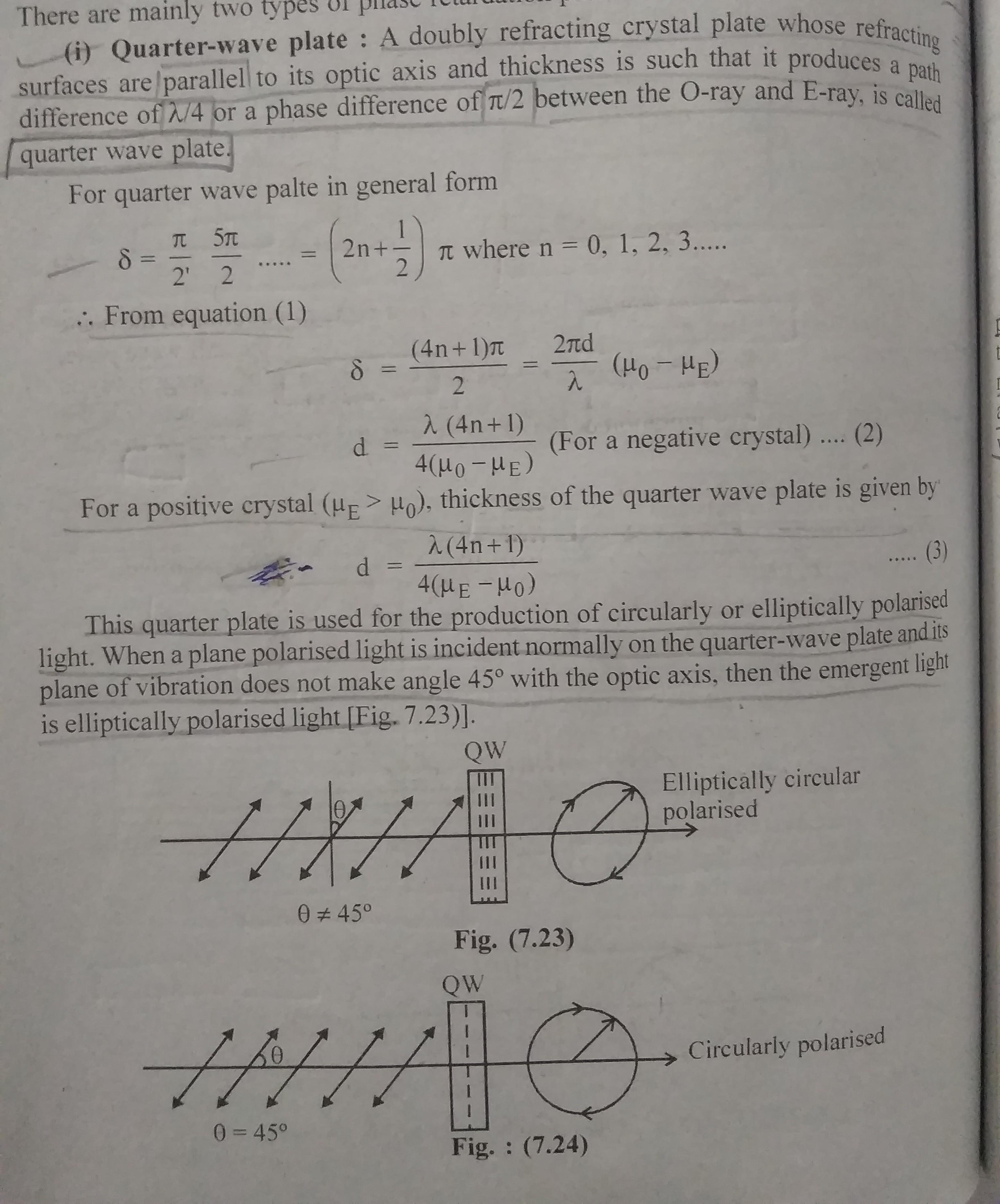

    when a plane polerised light is incident normally on a quarter wave plate and it's plane of vibration makes an angle 45° with the optics axis then the emergent light is circularly ...
    Show more
    • cropped8966678334227224458.jpg
    • cropped5701735496448877419.jpg
    Likes(2) Reply(5)
    Dhairya sharma
    these plates are doubly refrecting crystal with uniform thickness.it creates path difference of lembda/4.
