Shivam Sharma posted an Question
September 03, 2020 • 21:44 pm 30 points
  • CSIR NET
  • Earth Sciences

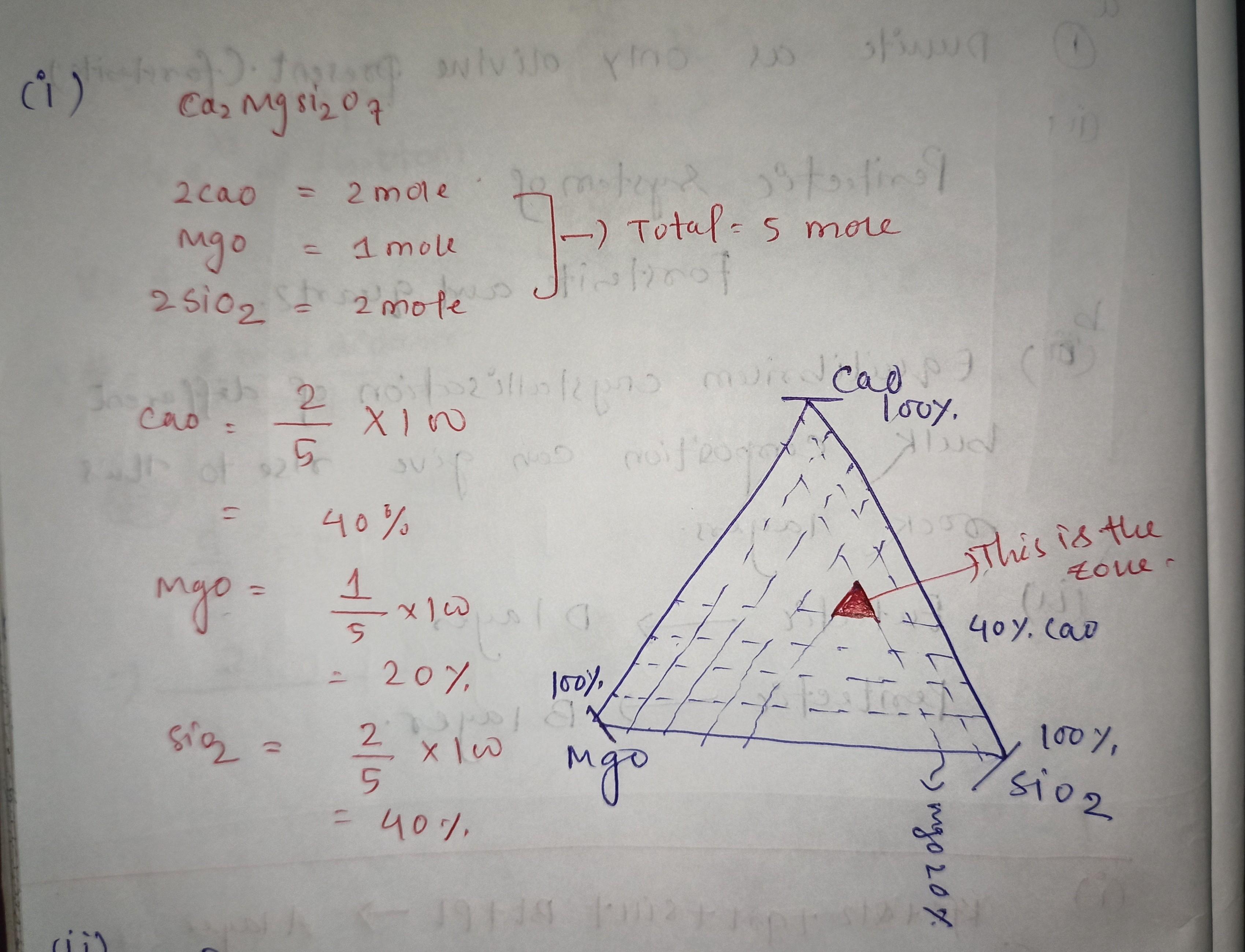

) plot the chemical composition of the mineral, ca,mgsi,0, in the ternary compositional space, mgo-sio,-ca0. (3) ca0 sio mgo (i) draw the stereogram of crystal

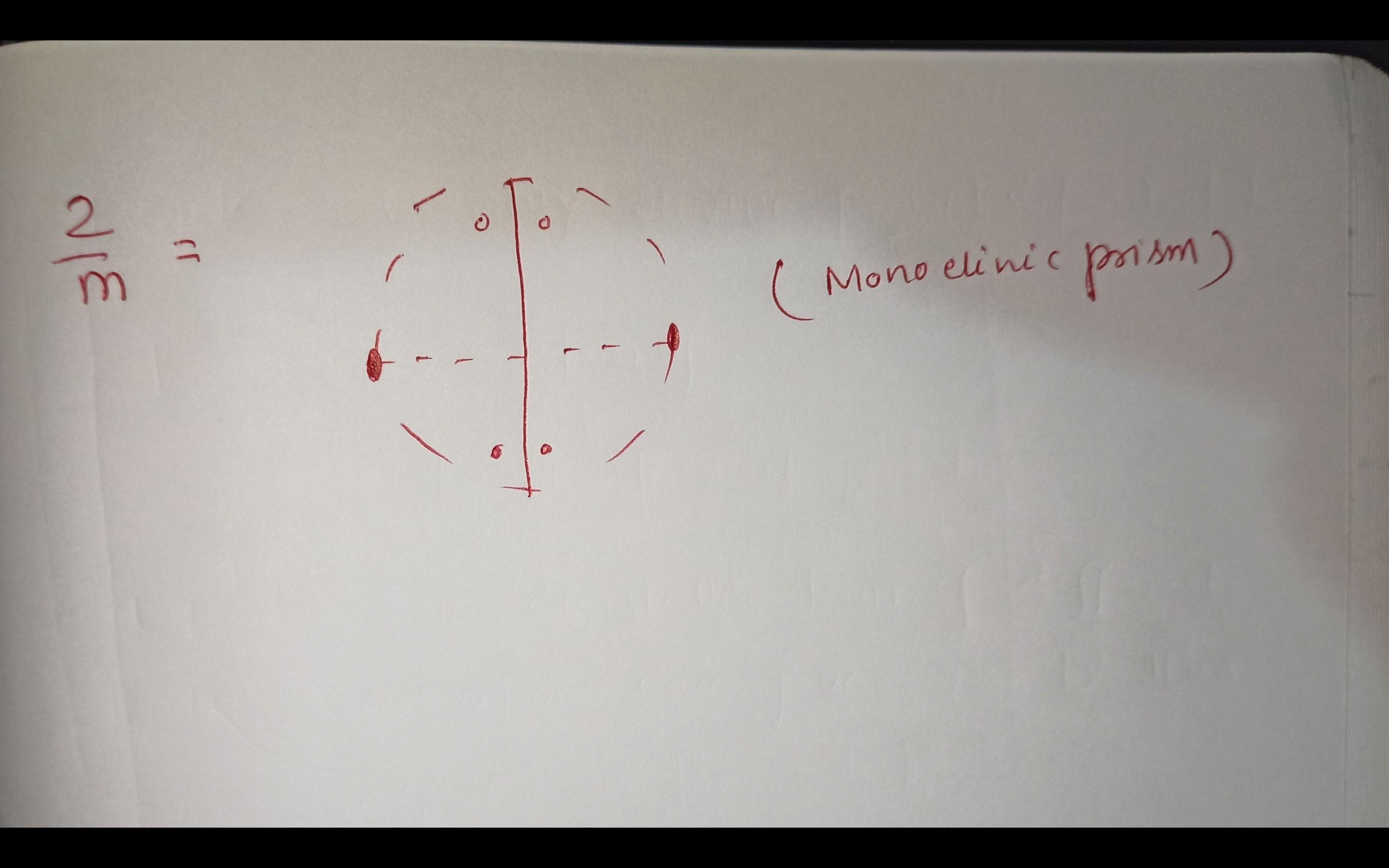

) Plot the chemical composition of the mineral, Ca,Mgsi,0, in the ternary compositional space, MgO-SiO,-Ca0. (3) Ca0 sio Mgo (i) Draw the stereogram of crystal lass 2/m. Name the relevant crystal system. (6) The RI of a hemicylinder is 1.92. An unknown mineral is placed on the flat surface of the hemieylinder. Determine the RI of the mineral (n). (6) Refracted Refiected cident

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar Best Answer

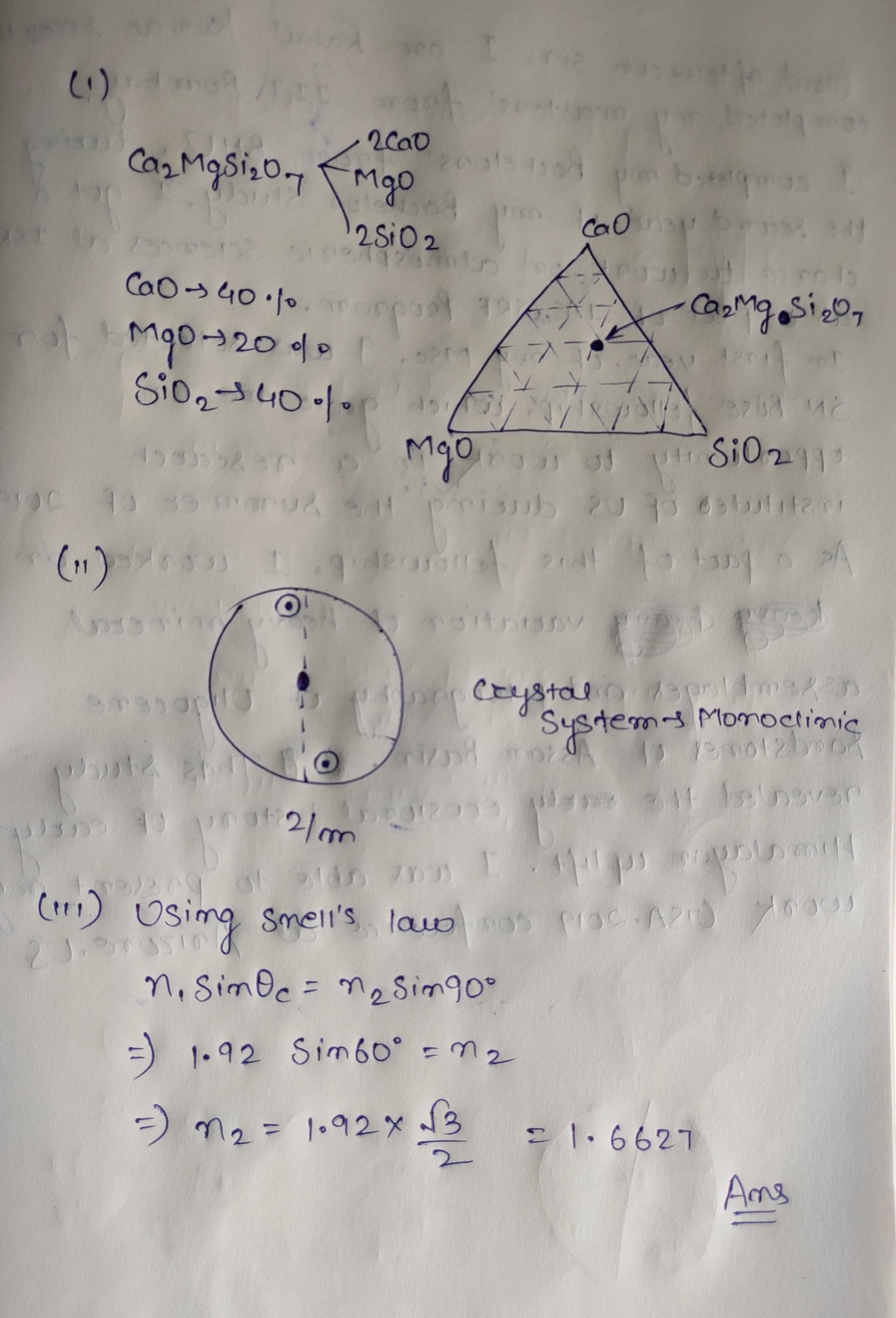

    See the attached figure for solutions of all three questions.
