Unayak posted an Question
December 28, 2020 • 02:29 am 30 points
  • CSIR NET
  • Physical Sciences

Plz find the output voltage for this opamp cct

plz find the output voltage for this opamp cct........

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

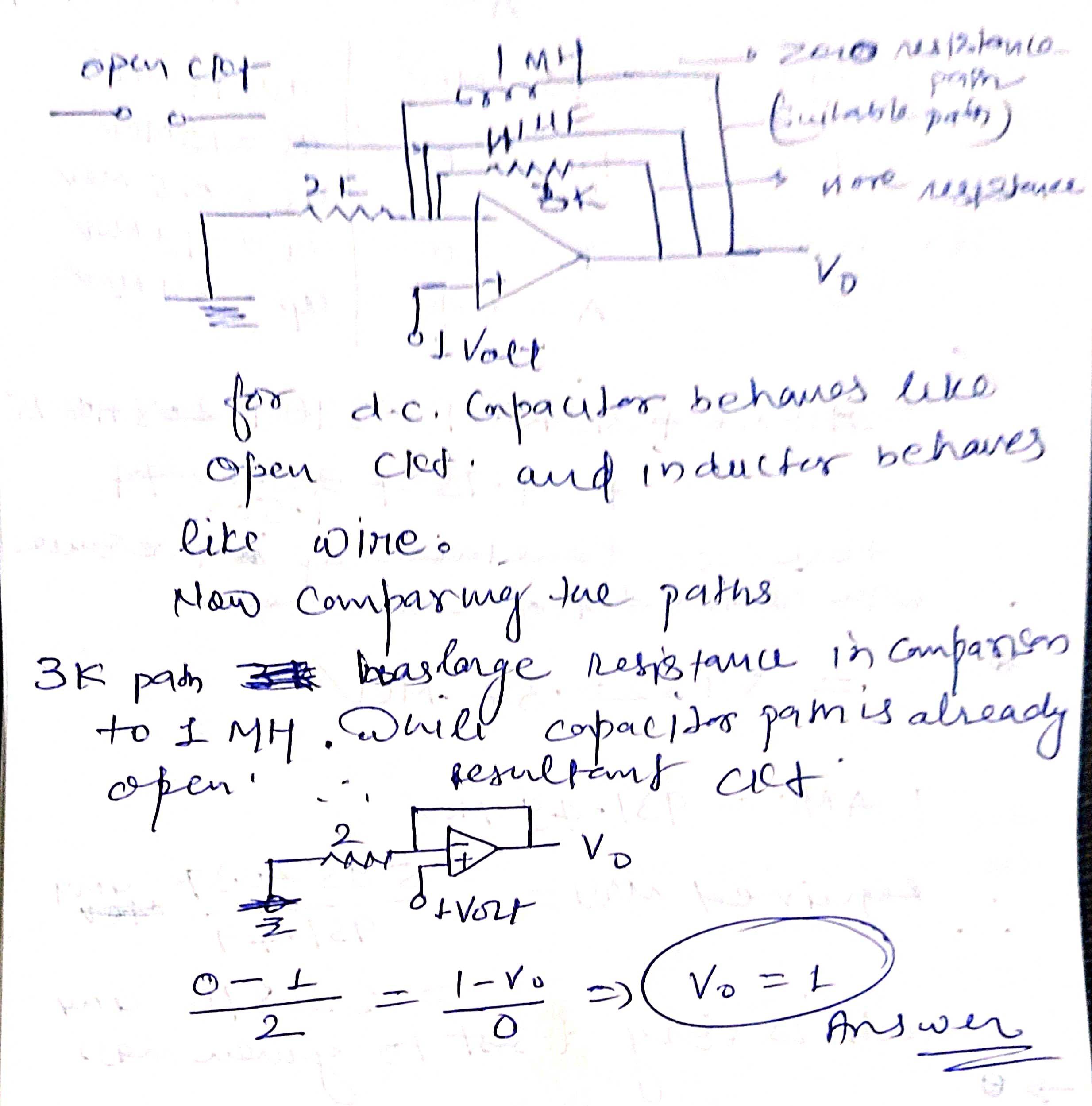

    Vo is 1V because, the inductor will act like a short circuit and capacitor will act as a open circuit. so the whole current passes through inductor because it will give zero resistance (short circuit).. therefore using KCL at V1 u will get Bi=1volt.
