Plz give a numerical example where transistor works in saturation mode

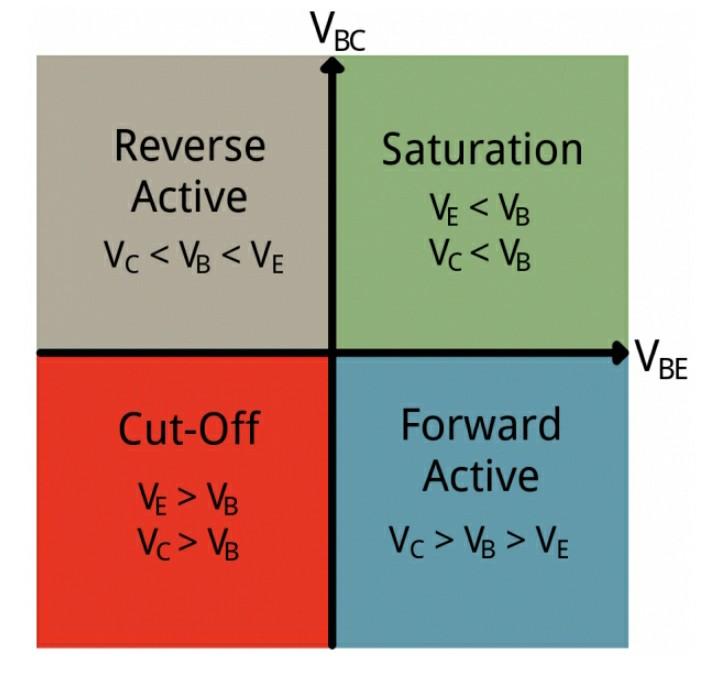

plz give a numerical example where transistor works in saturation mode.here it is working on normal active mode

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Chandra prakash best-answer

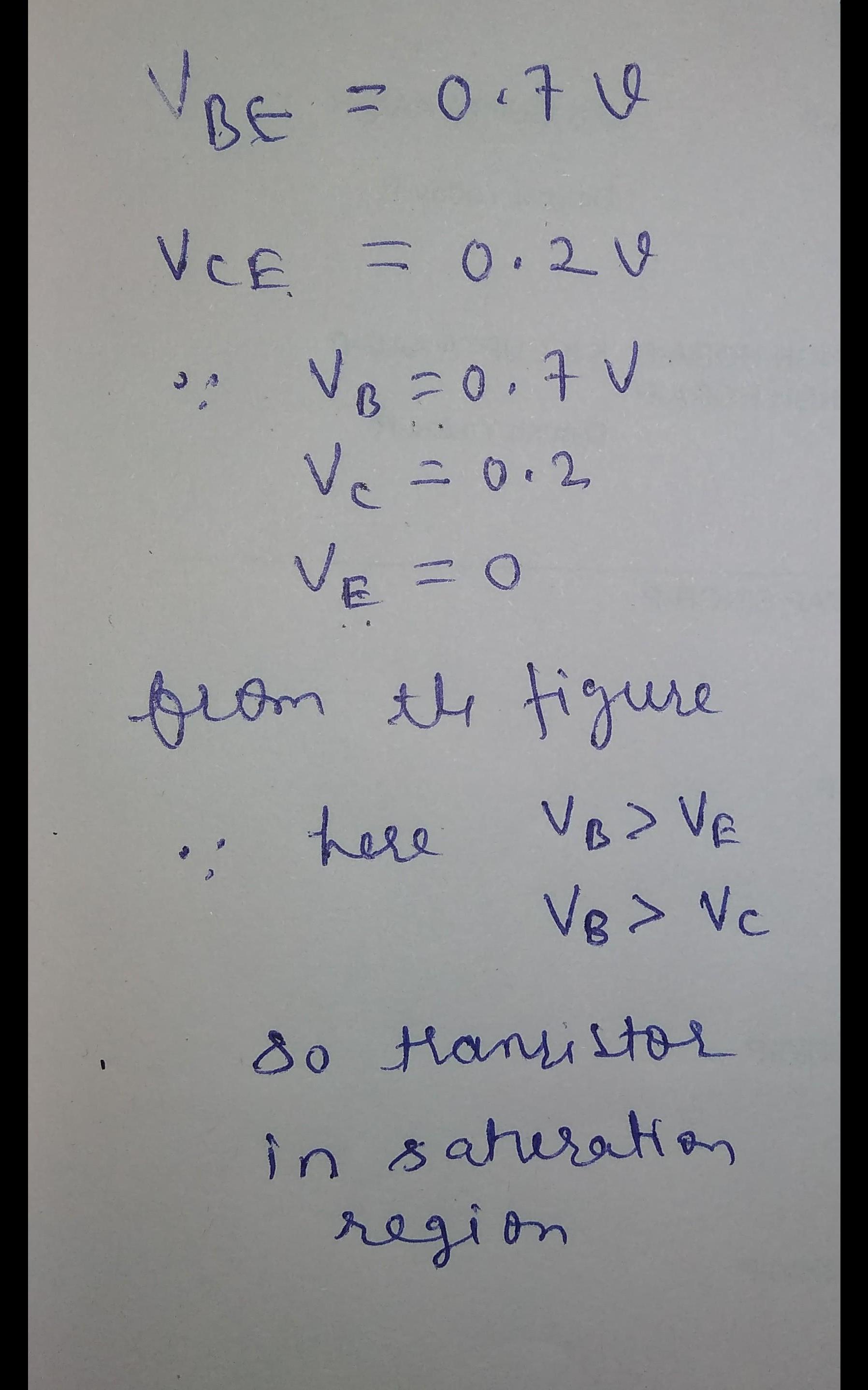

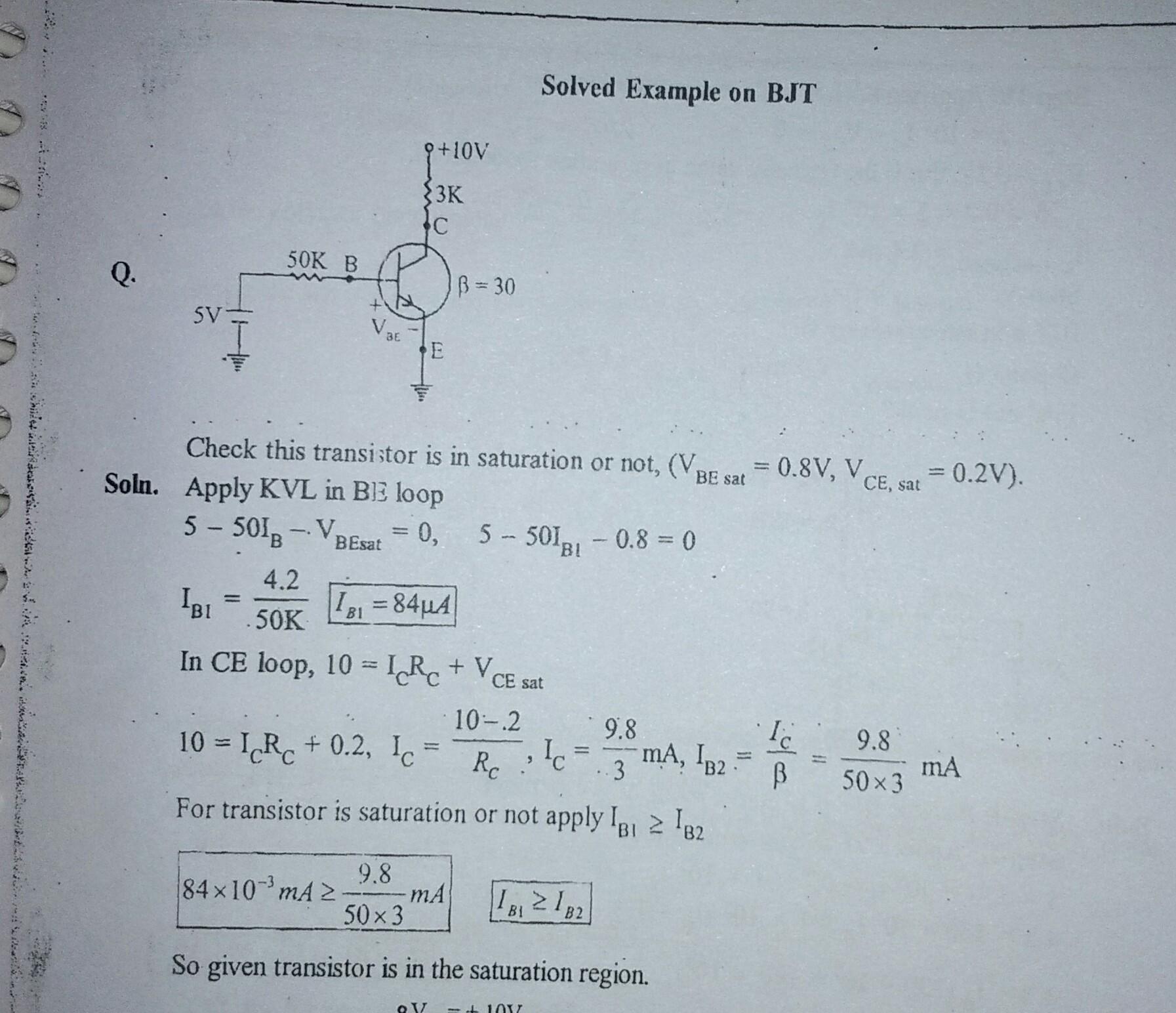

    see attached file I think is helpfull for you, for the transistor is saturation or not apply , IB1 is greater equle to IB2..
