Unayak posted an Question
May 01, 2020 • 03:24 am 30 points
  • CSIR NET
  • Physical Sciences

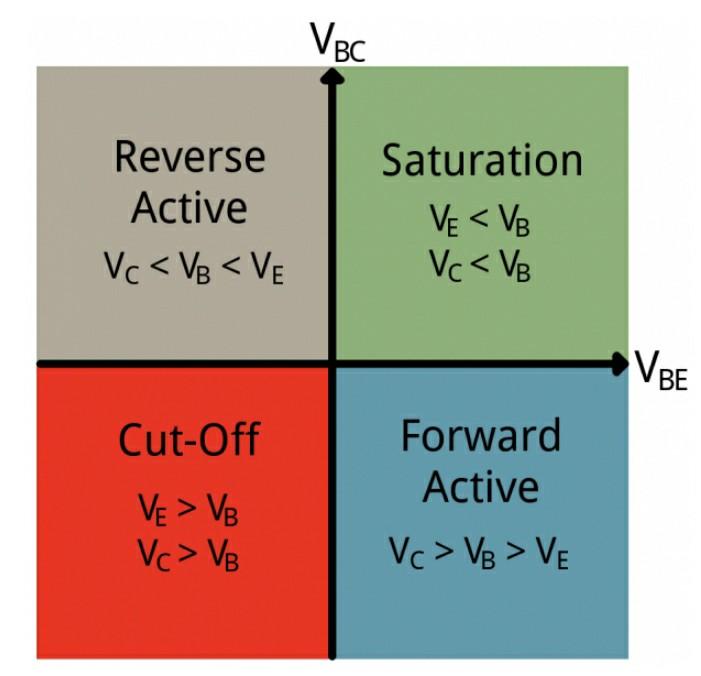

Plz give a numerical example where transistor works in saturation mode

plz give a numerical example where transistor works in saturation mode.here it is working on normal active mode

2 Answer(s) Answer Now
  • 0 Likes
  • 2 Comments
  • 0 Shares
  • comment-profile-img>
    Chandra prakash best-answer

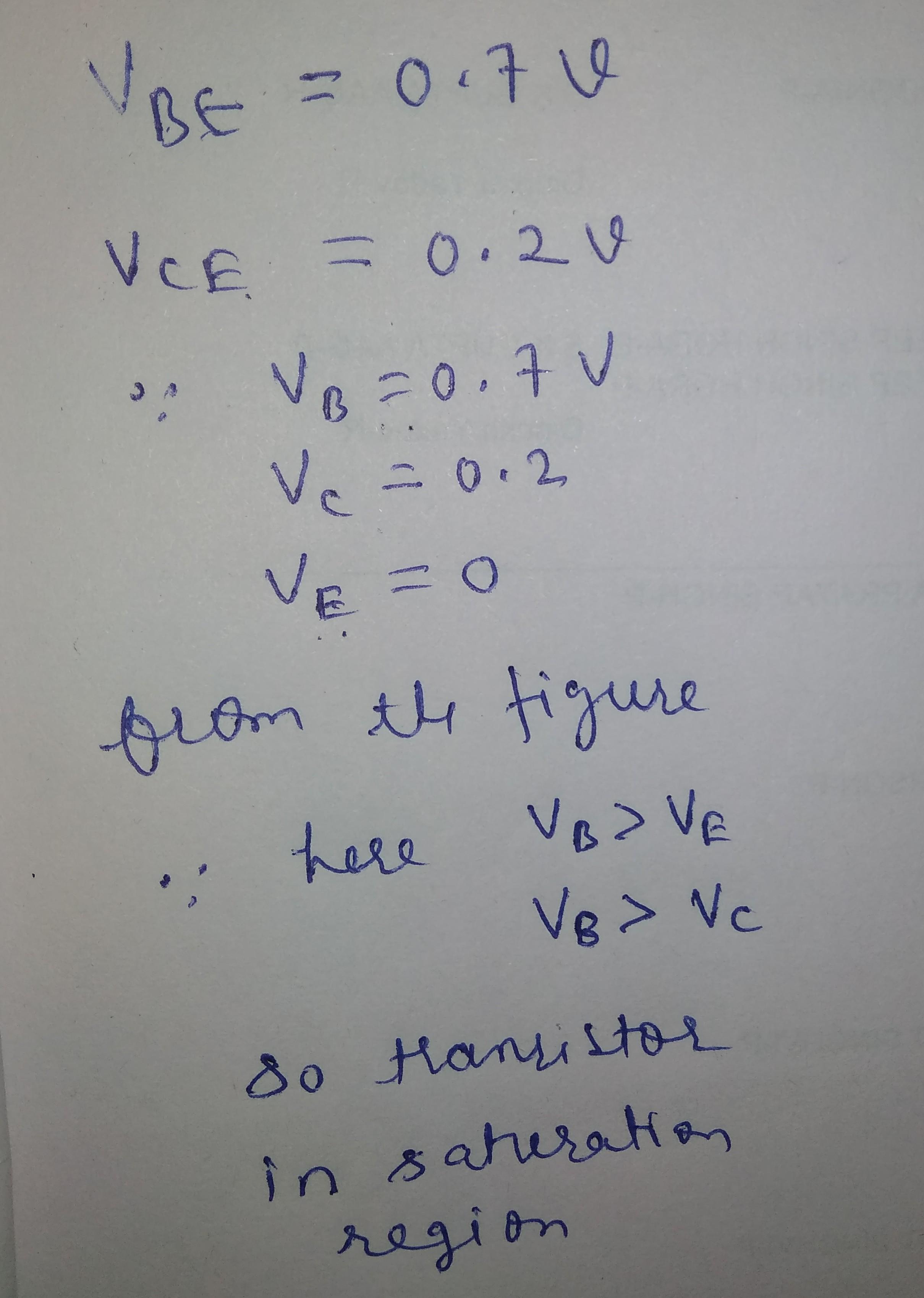

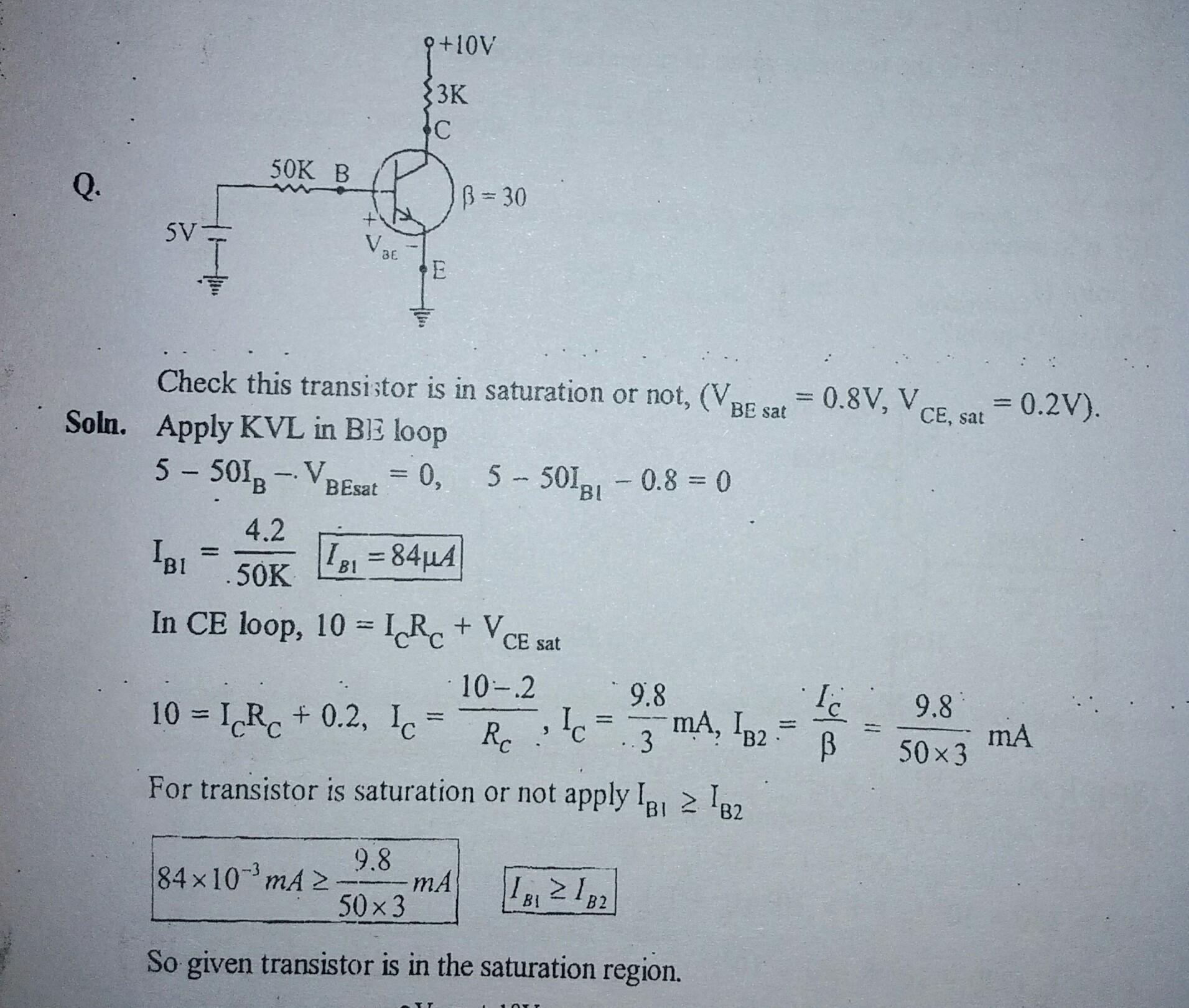

    see attached file I think is usefull for you , For transistor is saturation or not apply. IB1 is greater then equle IB2
