Q17. Consider the following circuit in which the current gain fae of the transistor is 100. +15VP 100 k2 9002 100 2 Which one of the following correctly represents the load line (collector current Ic with respect to collector-emitter voltage VcE) and Q-point of this circuit? (a) (6) 13 mA Q-point (2V,10 mA) 15 MA Q-point (2V,13 mA) 15V CE (C) (d) 13 mA 15 mA Q-point (7.5 V, 7.5 mA) -point (7.5V,6.5 mA) CE 15V CE 15V Ans: (a)
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Vaishnavi rajora thankyou

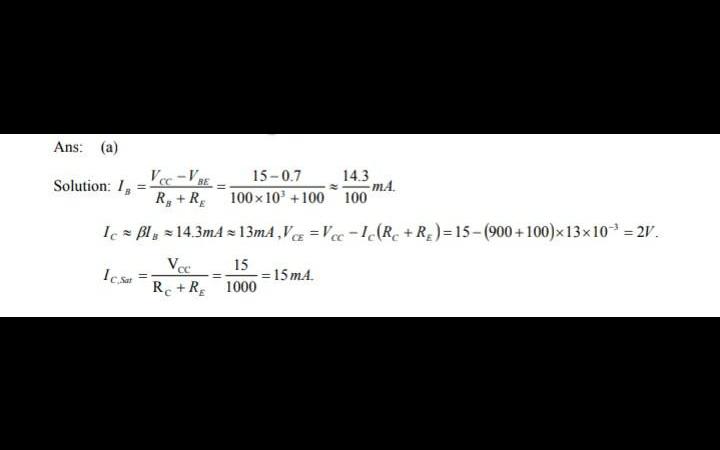

    solution:
    • cropped8212939857520409866.jpg
