Debanjana Adhikari posted an Question
June 02, 2020 • 15:05 pm 30 points
  • CSIR NET
  • Physical Sciences

Q40. a current i, flows through the primary coil of a transformer. the graph of i,() as a function of time t is shown in the figure below. ,0 3 which of the fol

Q40. A current i, flows through the primary coil of a transformer. The graph of i,() as a function of time t is shown in the figure below. ,0 3 Which of the following graphs represents the current is in the secondary coil? i, a) i,O i,0 3

2 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Ruby negi best-answer

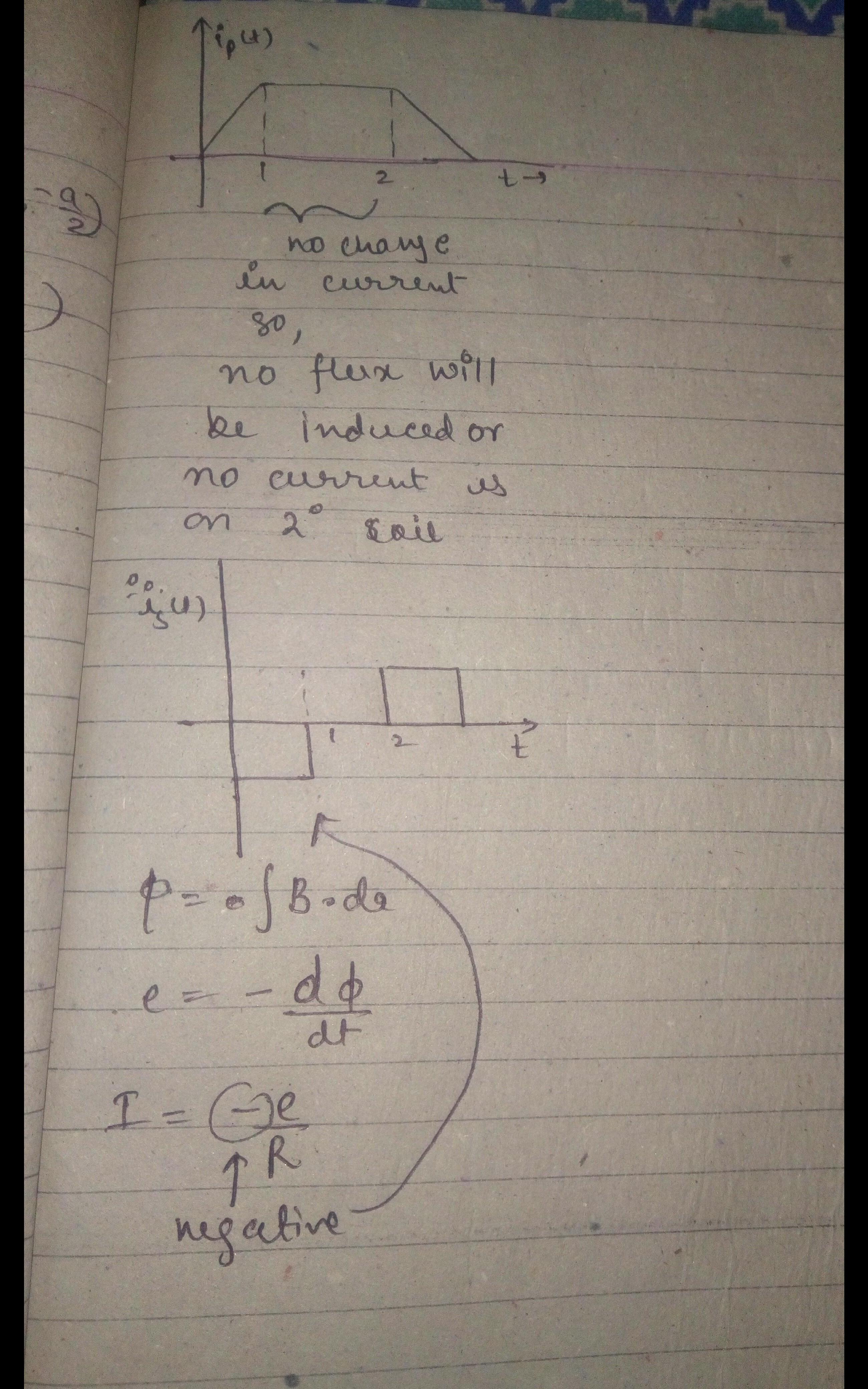

    this is the solution...

    eduncle-logo-app

    see the solution..

    eduncle-logo-app

    for any doubt

    eduncle-logo-app

    u can ask.

    eduncle-logo-app

    here in the first case, current in secendory is negative (I explained it in the page).

    eduncle-logo-app

    in the last case, current in the primary coil is already negative that's why it will be +be in the secondary coil..

    eduncle-logo-app

    nice explanation

    eduncle-logo-app

    👍

  • comment-profile-img>
    Dhairya sharma best-answer

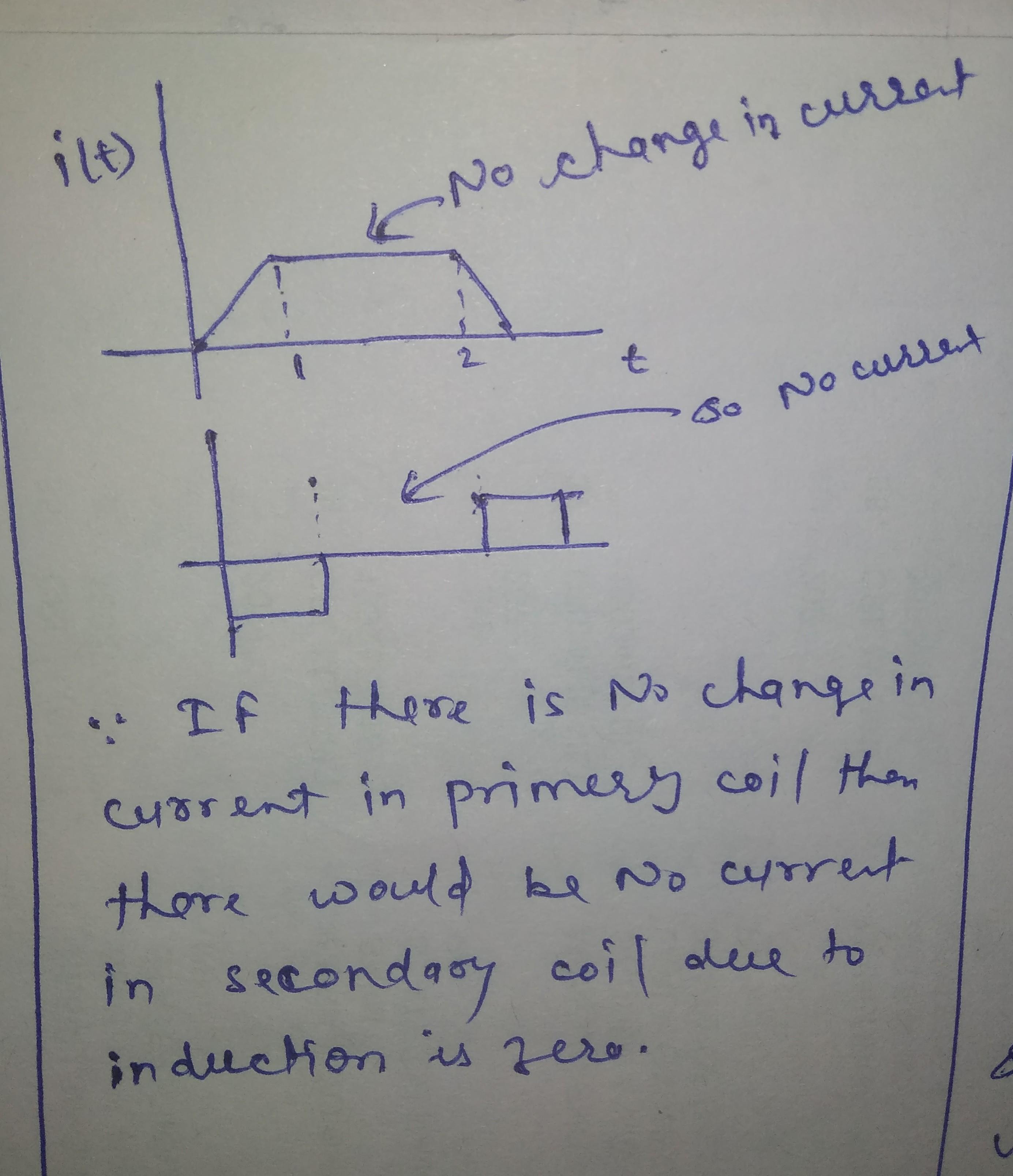

    see attached

    eduncle-logo-app

    there will be current in secondary coil if and only if primary coil has varying current.

    eduncle-logo-app

    dear it's the concept of em induction

    eduncle-logo-app

    see attached solution

    eduncle-logo-app

    still have any doubt...plz ask

    eduncle-logo-app

    dear.....hope u will get it
