Debanjana Adhikari posted an Question
May 27, 2020 • 04:39 am 30 points
  • CSIR NET
  • Physical Sciences

Q87. two uniformly charged insulating solid spheres charges +q and -q, respectively. the spheres are placed touching each other as shown a and b , both of radiu

Q87. Two uniformly charged insulating solid spheres charges +Q and -Q, respectively. The spheres are placed touching each other as shown A and B , both of radius a, carry total in the figure. If the potential at the centre of the sphere A is V and that at the centre of B is V, then the difference V-V, is - (a)- (b) - (c) (d) 47T6,a 2T6,a 27te,a 4T&%

3 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Chandra prakash best-answer

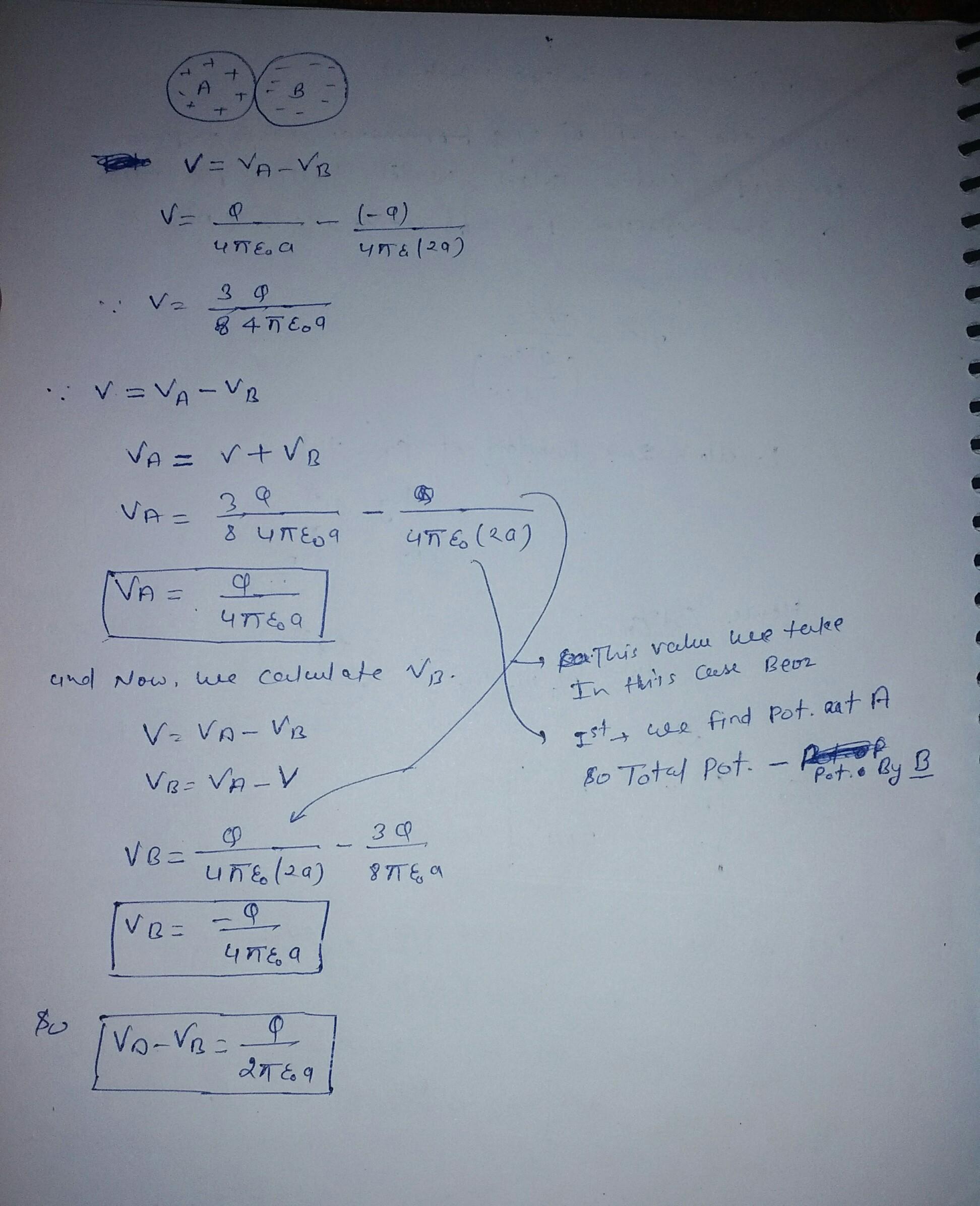

    see attached file... it's very helpful for you...

    eduncle-logo-app

    if you have any doubt regarding this prob u can ask

    eduncle-logo-app

    give response

  • comment-profile-img>
    Dhairya sharma best-answer

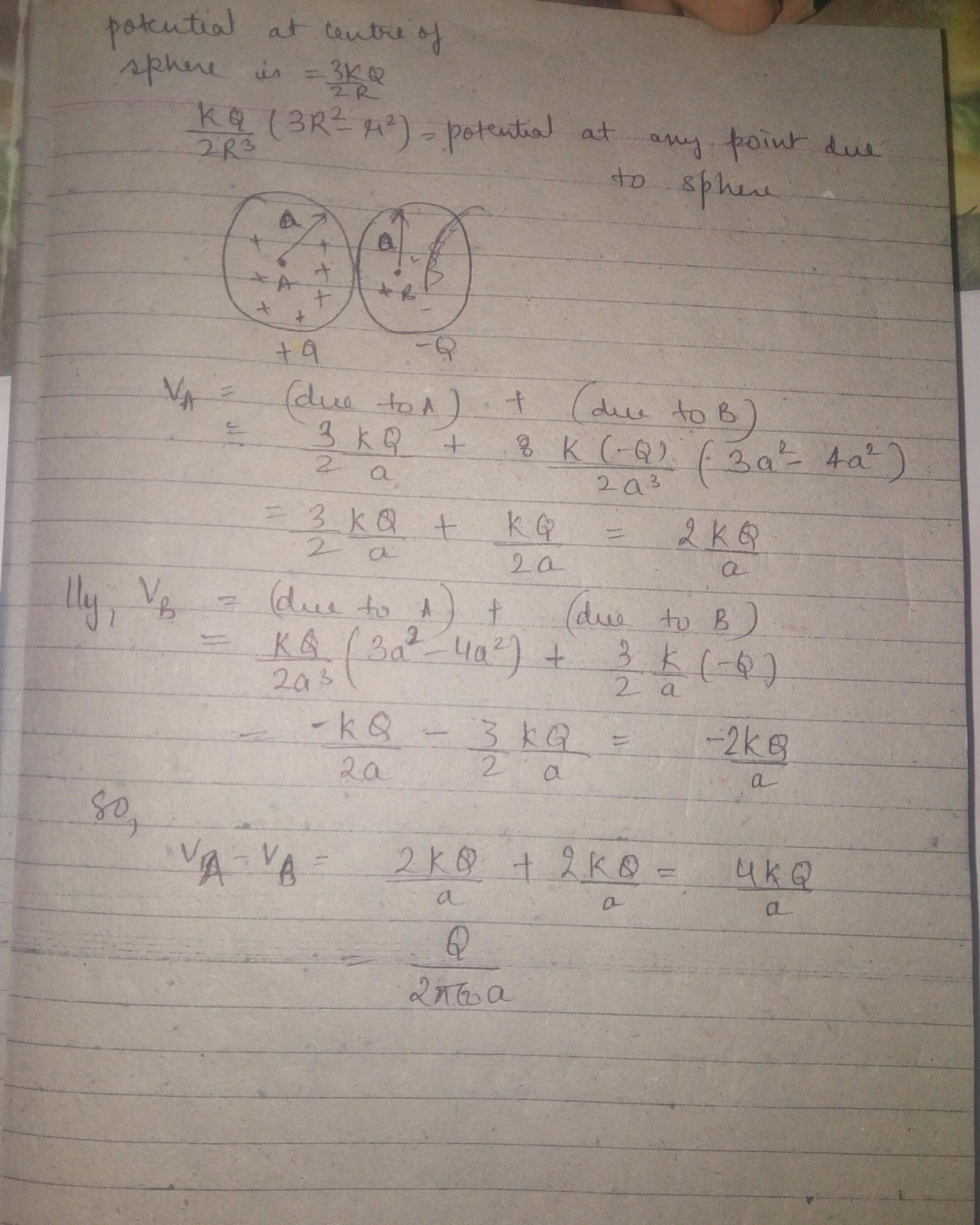

    dear I have attached two different and short methods for solving it.

    eduncle-logo-app

    i here we have to use the concept of potential due to entire system.

    eduncle-logo-app

    potential of sphere itself and due to spherical body as well.

    eduncle-logo-app

    good

    eduncle-logo-app

    tnqq chandra sir.

    eduncle-logo-app

    dear here in these two method second is empirical

    eduncle-logo-app

    it's not sure that we will get solution so go with first one

    eduncle-logo-app

    it's just an idea.

  • comment-profile-img>
    Ruby negi Best Answer

    option c is correct...

    eduncle-logo-app

    for any doubt you can ask..

    eduncle-logo-app

    remember the formulas of potential

    eduncle-logo-app

    due to inducting spherical shell

    eduncle-logo-app

    derive the formulas first then try to remember the formulas

    eduncle-logo-app

    I always Suggest you to make a notes so that it's is way for you to revise formulas

    eduncle-logo-app

    for any query please ask.
