The condition for the liquid and vapour phases of a fluid to be in equilibrium is given by the approximate equation (clausius-clayperon equation) where v,ap is

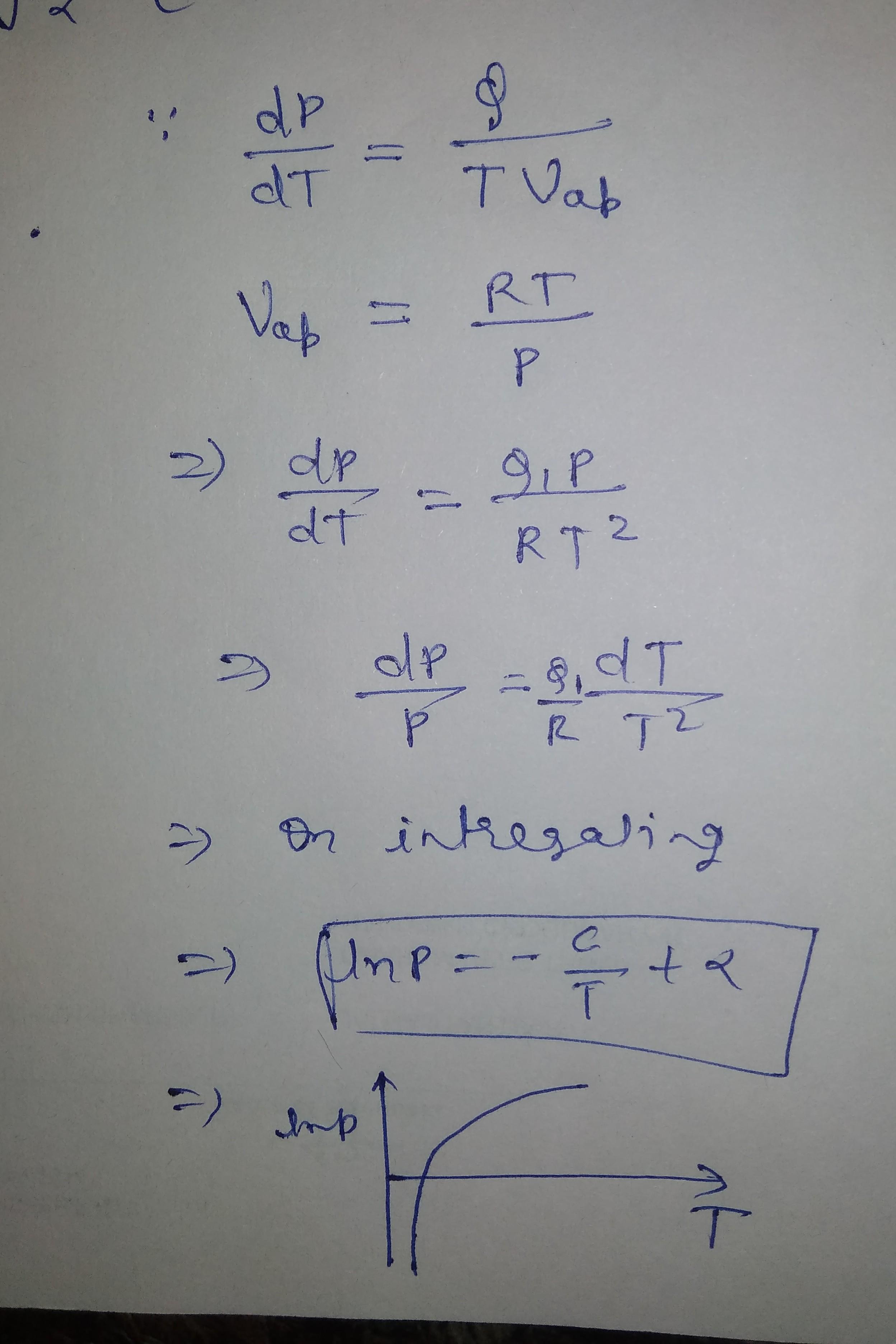

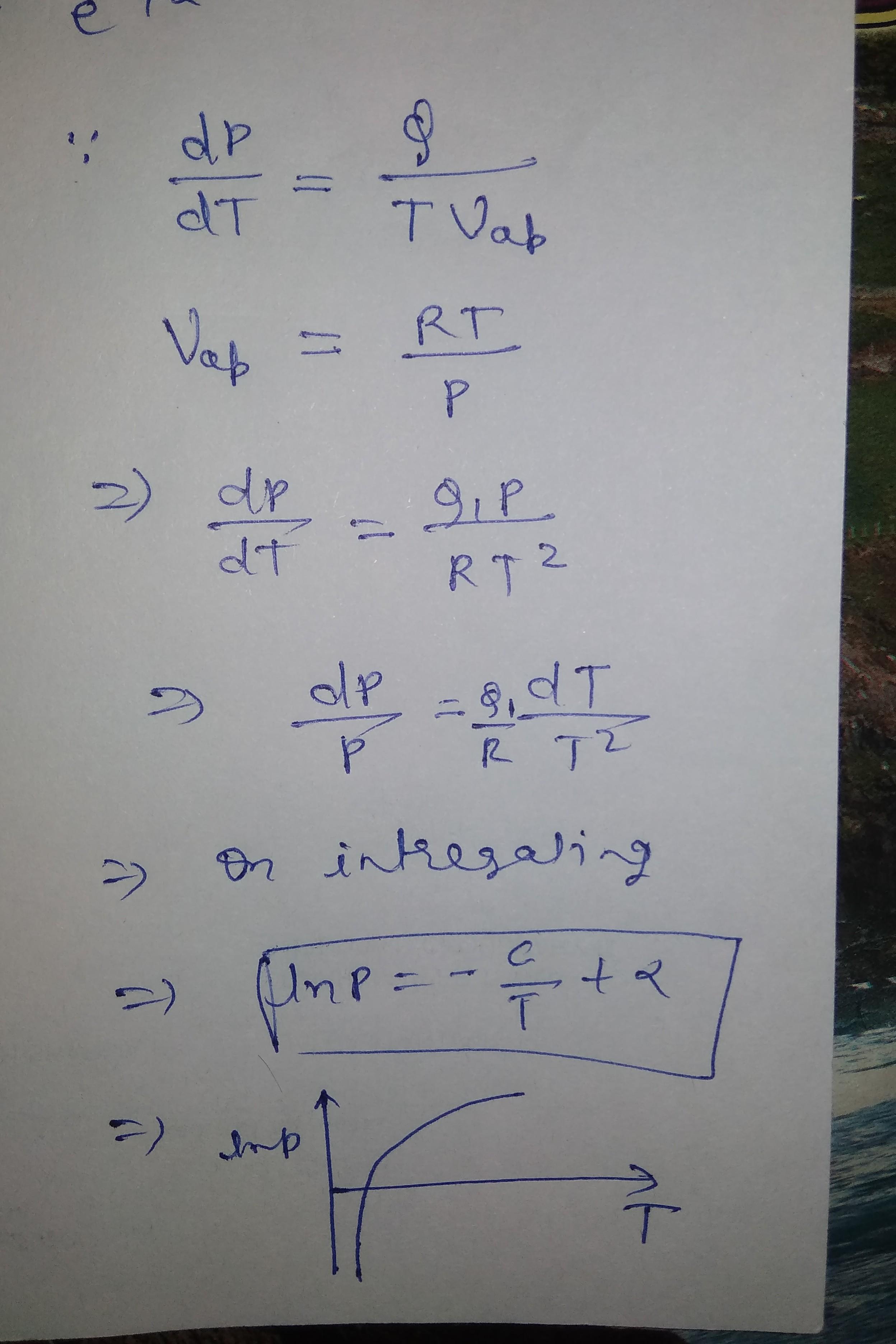

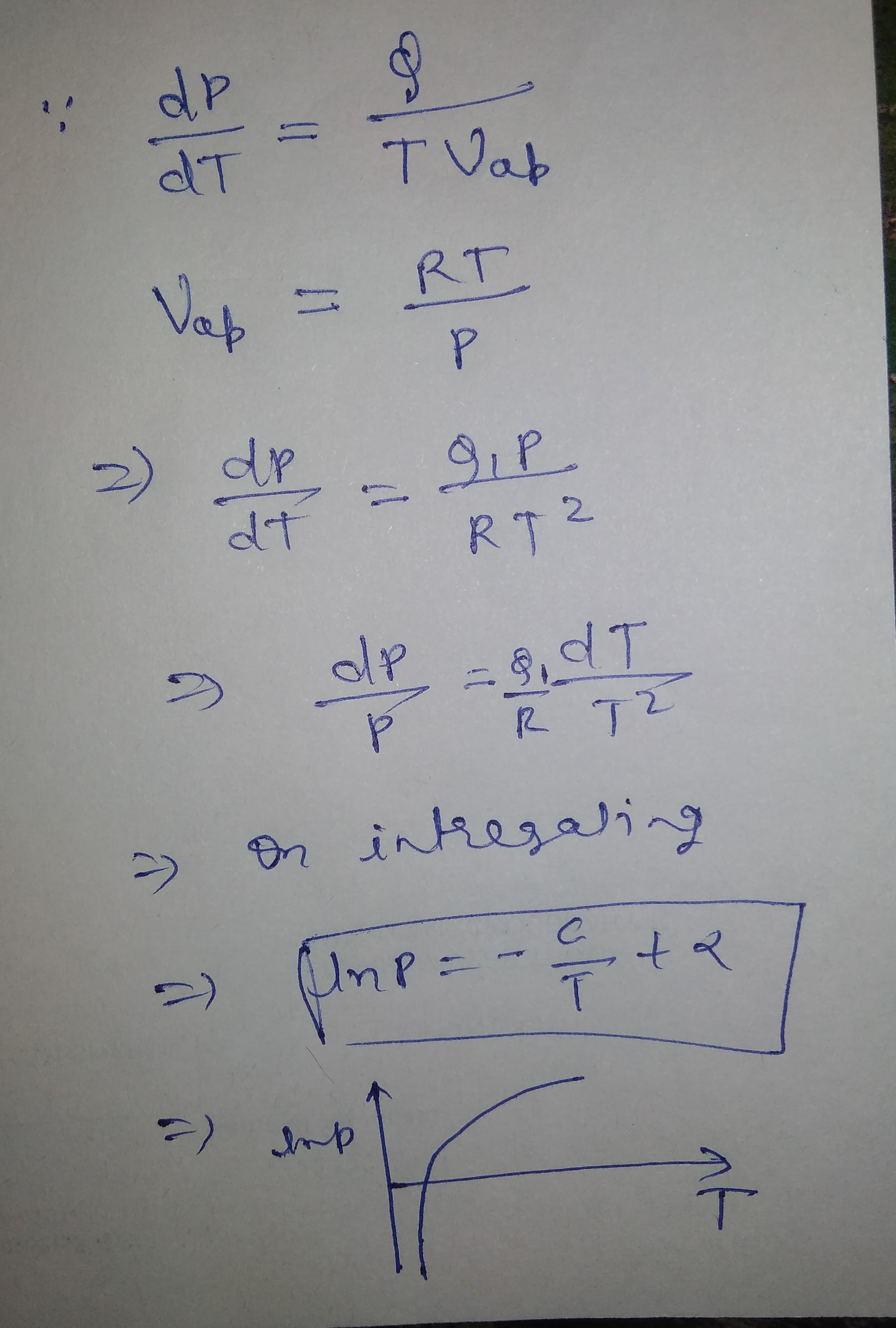

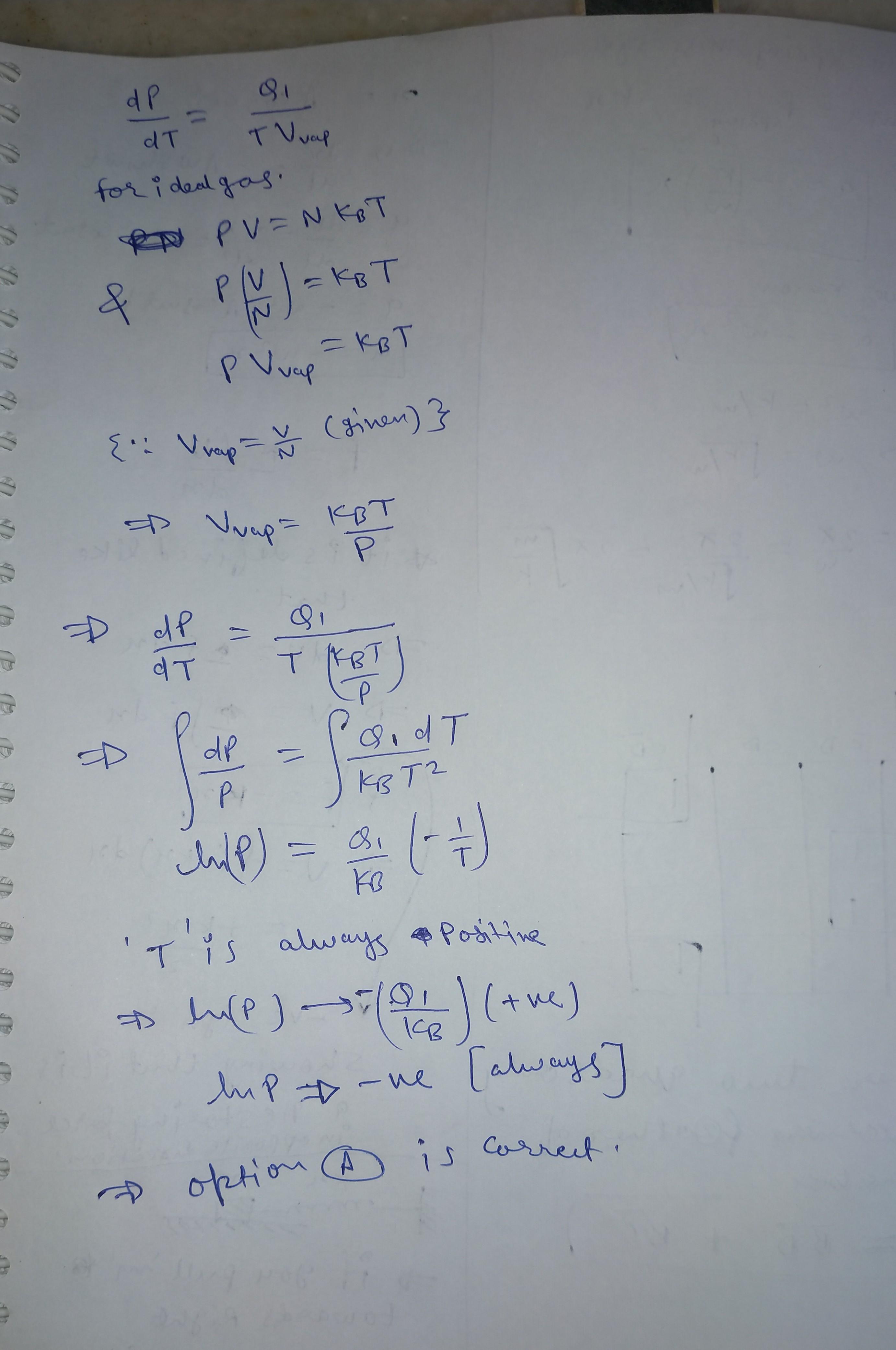

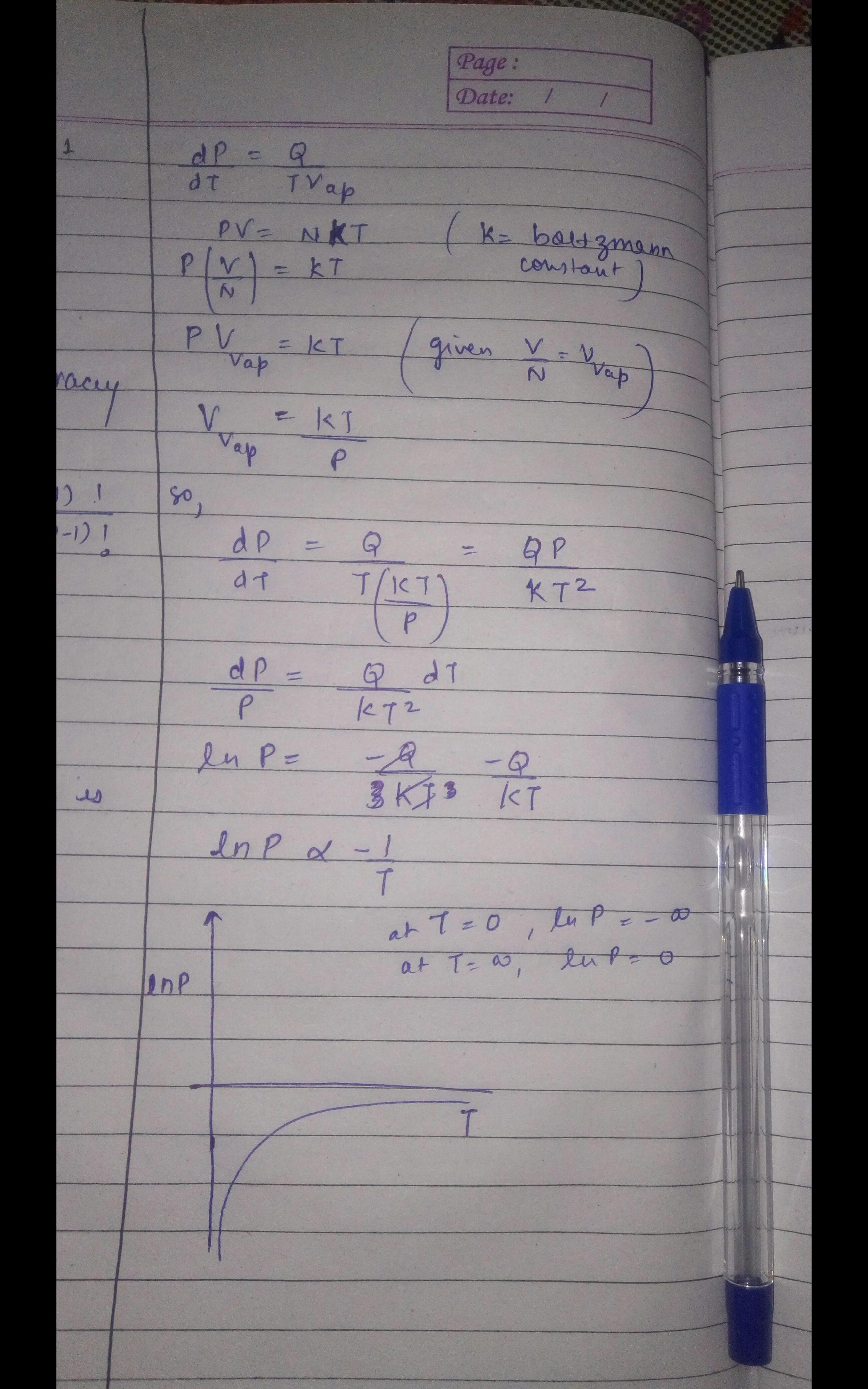

The condition for the liquid and vapour phases of a fluid to be in equilibrium is given by the approXimate equation (Clausius-Clayperon equation) where v,ap IS the dT 1v,vap volume per particle in the vapour phase, and Q, is the latent heat, which may be taken to be a constant. If the vapour obeys ideal gas law, which of the following plots is correct? (a) In P (6) In P| (c) In P (d) n P
