The geological map below shows a folded quartzite bed (hatched) in which the western limb is vertical, and the eastern limb strikes due north and dips 45° to th

1st part of answer is due to the difference in the depositional age of 2 beds but pls answer the 2nd and 3rd part.

2 Answer(s) Answer Now
  • 1 Likes
  • 4 Comments
  • 0 Shares
  • Shivam sharma

    And Eastern limb of fault south of fault is also vertical na ? Like western limb ?

  • comment-profile-img>
    Sajan sarthak

    very good question but imagination is highly required. Left limb is not displaced due to it is a verical dip slip fault not a strike slip.

    eduncle-logo-app

    Please compute the net slip on fault and trace the eastern limb of fold

    eduncle-logo-app

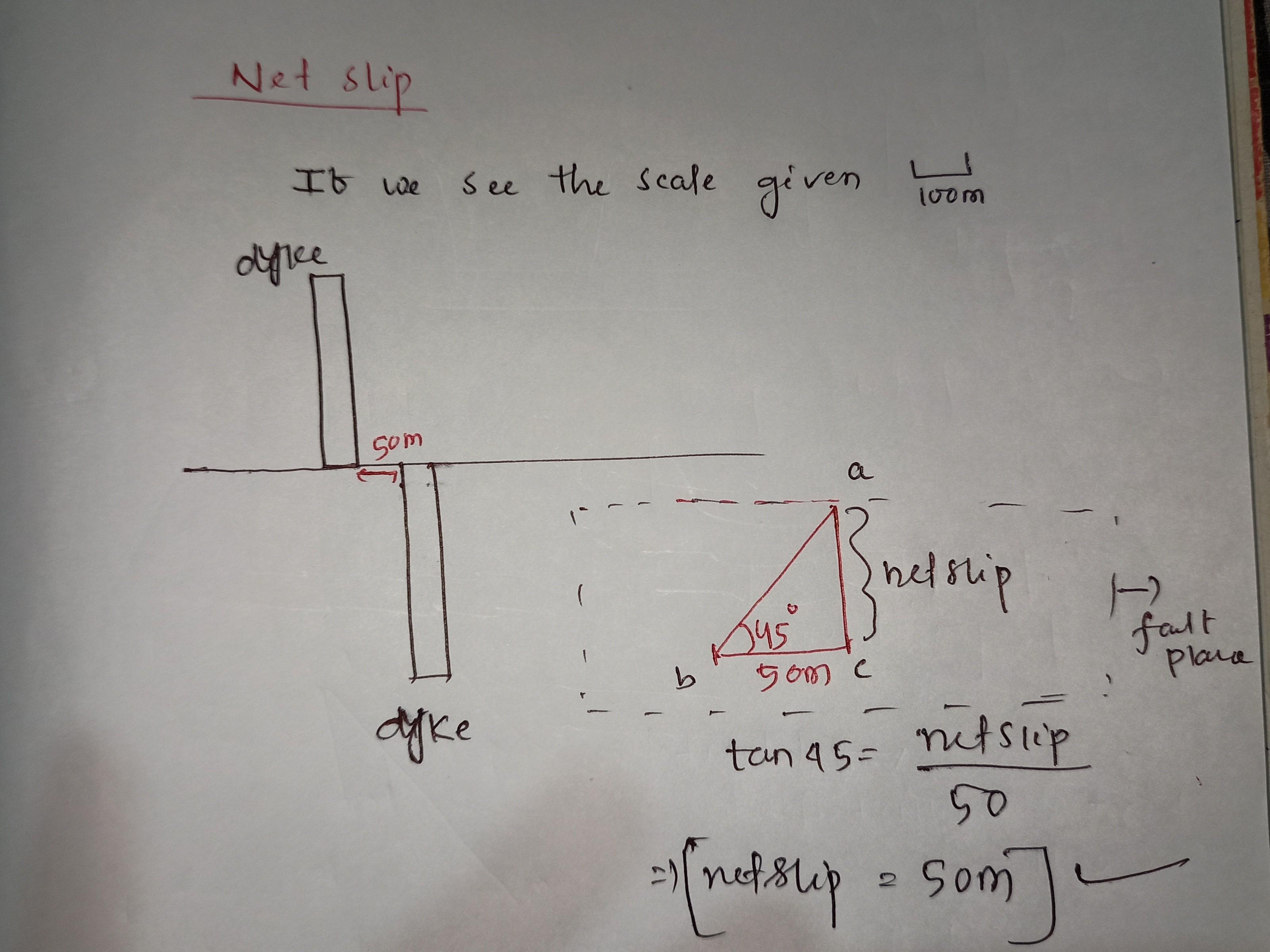

    from the fault trace I have calculated the netslip

    eduncle-logo-app

    means it is 0 ?

    eduncle-logo-app

    no it's 50 m
