Shivam Sharma posted an Question
August 30, 2020 • 16:52 pm 30 points
  • CSIR NET
  • Earth Sciences

The given p-t diagram shows the relative stability ranges of andalusite, sillimanite and kyanite. the difference in degrees of freedom at points x and y is _ 12

The given P-T diagram shows the relative stability ranges of andalusite, sillimanite and kyanite. The difference in degrees of freedom at points X and Y is _ 12 X 8 Kyanite Sillimanite 4 Andalusite 200 400 600 800 T (°C)

1 Answer(s) Answer Now
  • 1 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar

    Dear student, please mark this question as answered if I was able to clear your doubts. You can ask in case of any clarification you need.

  • comment-profile-img>
    Rahul kumar

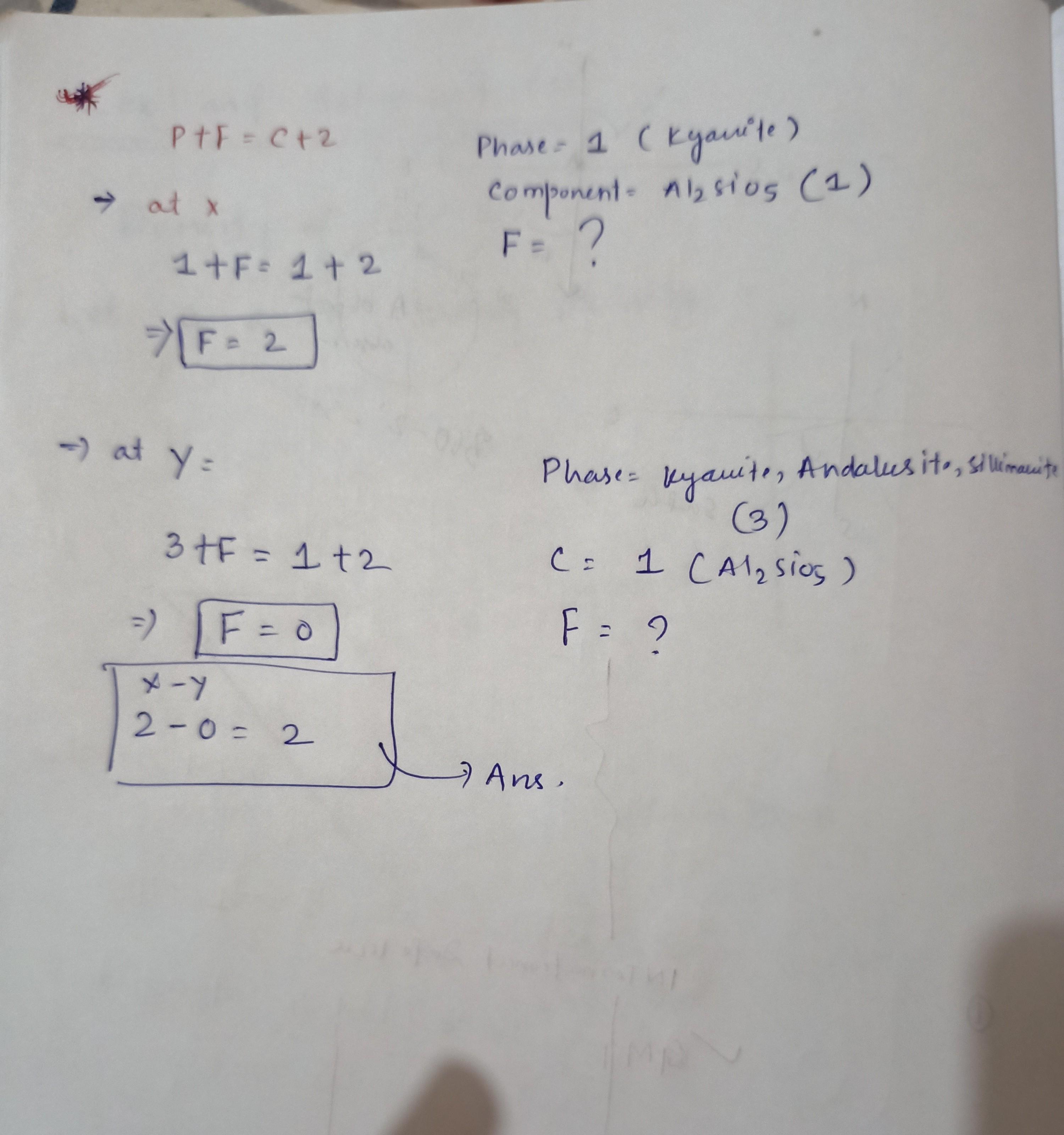

    Ans=2 At point X; c=1 (Al2SiO5) p=1 (kyanite) f=c-p+2=1-1+2=2 At point Y; c=1 (Al2SiO5) p=3 (kyanite, Andalusite, sillimanite), f=c-p+2=1-3+2=0 So, X-Y= 2-0 =2
