The transistor in the given circuit has he 352 and h r= 10002, the voltage and curretnt gan are respectively 10002 if the load resistance (a)-35 and + 35 (b) 35

The transistor in the given circuit has he 352 and h R= 10002, the voltage and curretnt gan are respectively 10002 If the load resistance (a)-35 and + 35 (b) 35 and 35 (C) 35 and 0.97 (d) 098 and 35 Vo R
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 7 Comments
  • Shares
  • Chandra dhawan

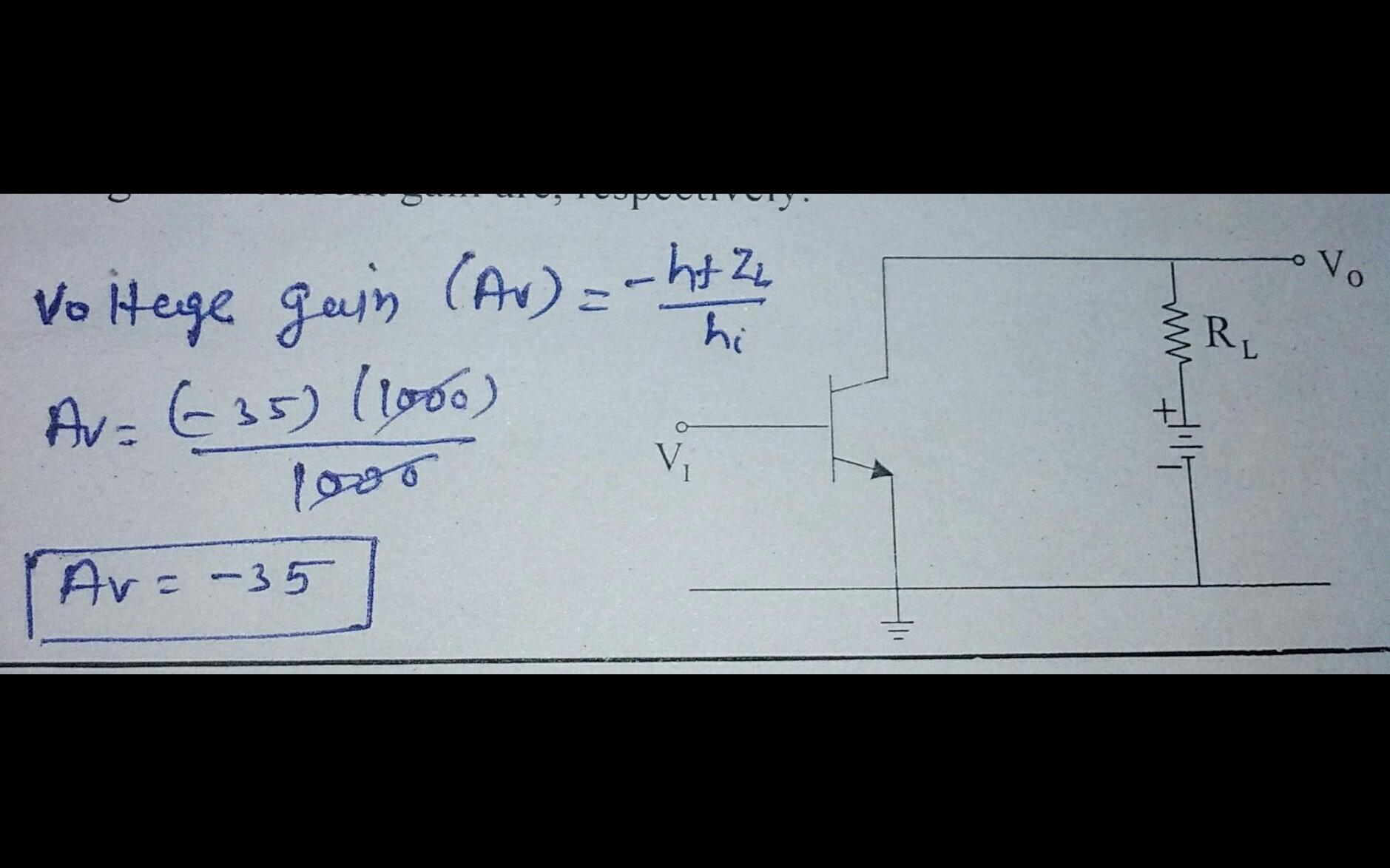

    see attached file
    • cropped-1493484059.jpg
    Likes(0) Reply(0)
  • Ruby negi
    remember Av formula..
    Likes(0) Reply(0)
  • Ruby negi thankyou
    voltage gain=(-hf*RL)/hi.. on putting values you will get -35... remember voltage gain Av is always negative. while Ai current gain is always positive
    Likes(1) Reply(0)
  • Abhishek singh

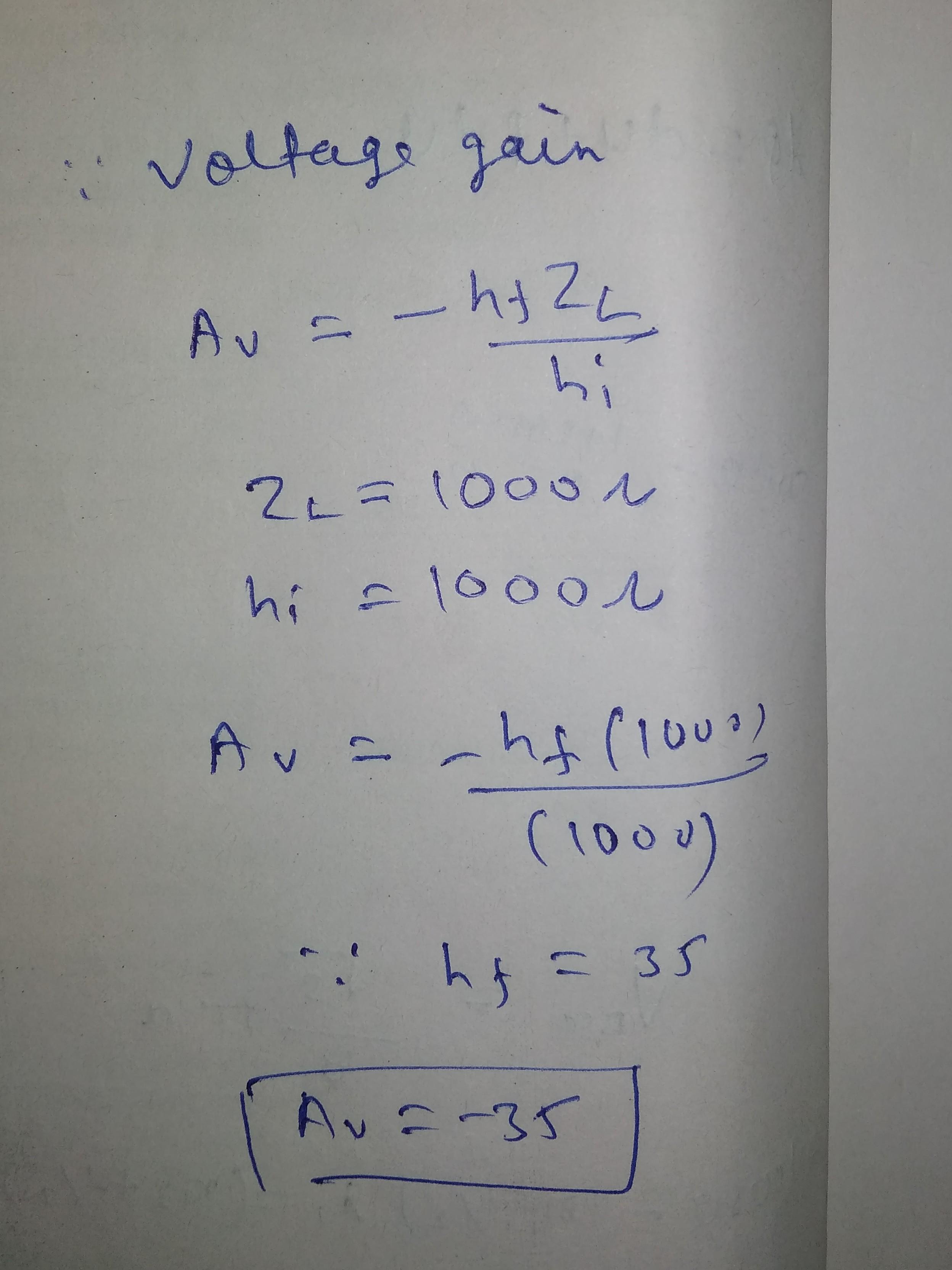

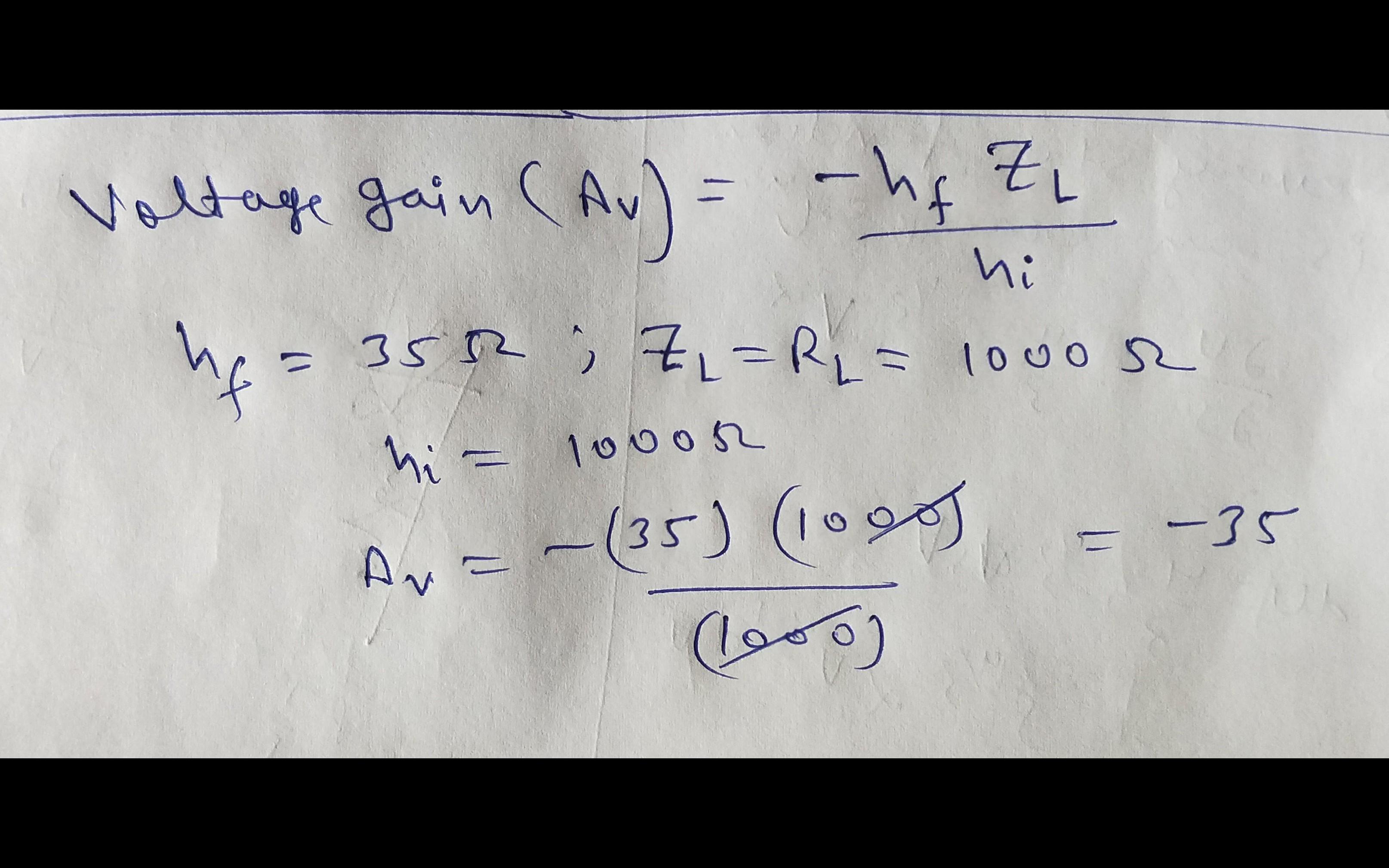

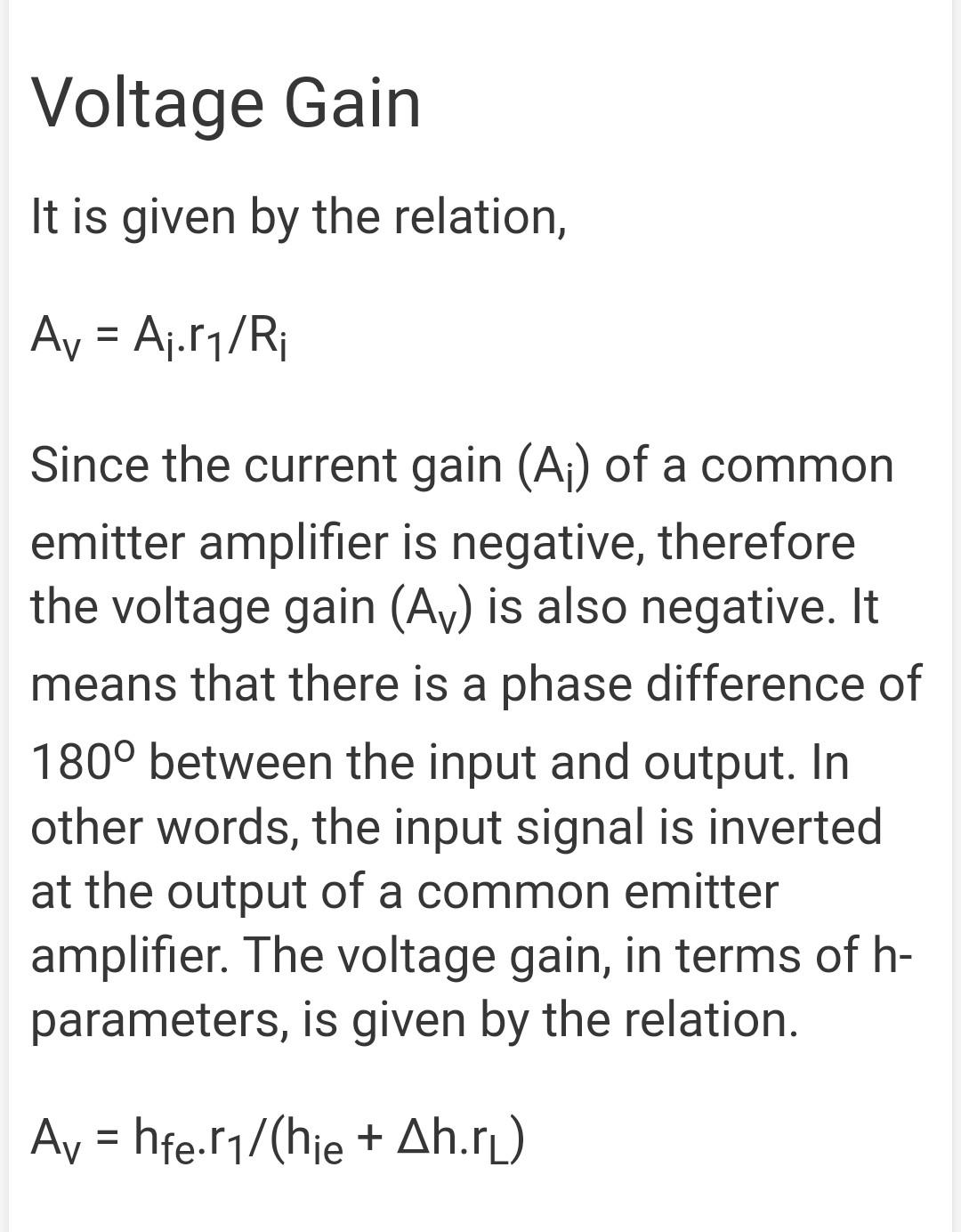

    voltage gain and current gain are related as follows. The solution is attached.
    • cropped8588839521002644753.jpg
    • cropped4084133730488517624.jpg
    Likes(1) Reply(0)
  • Dhairya sharma

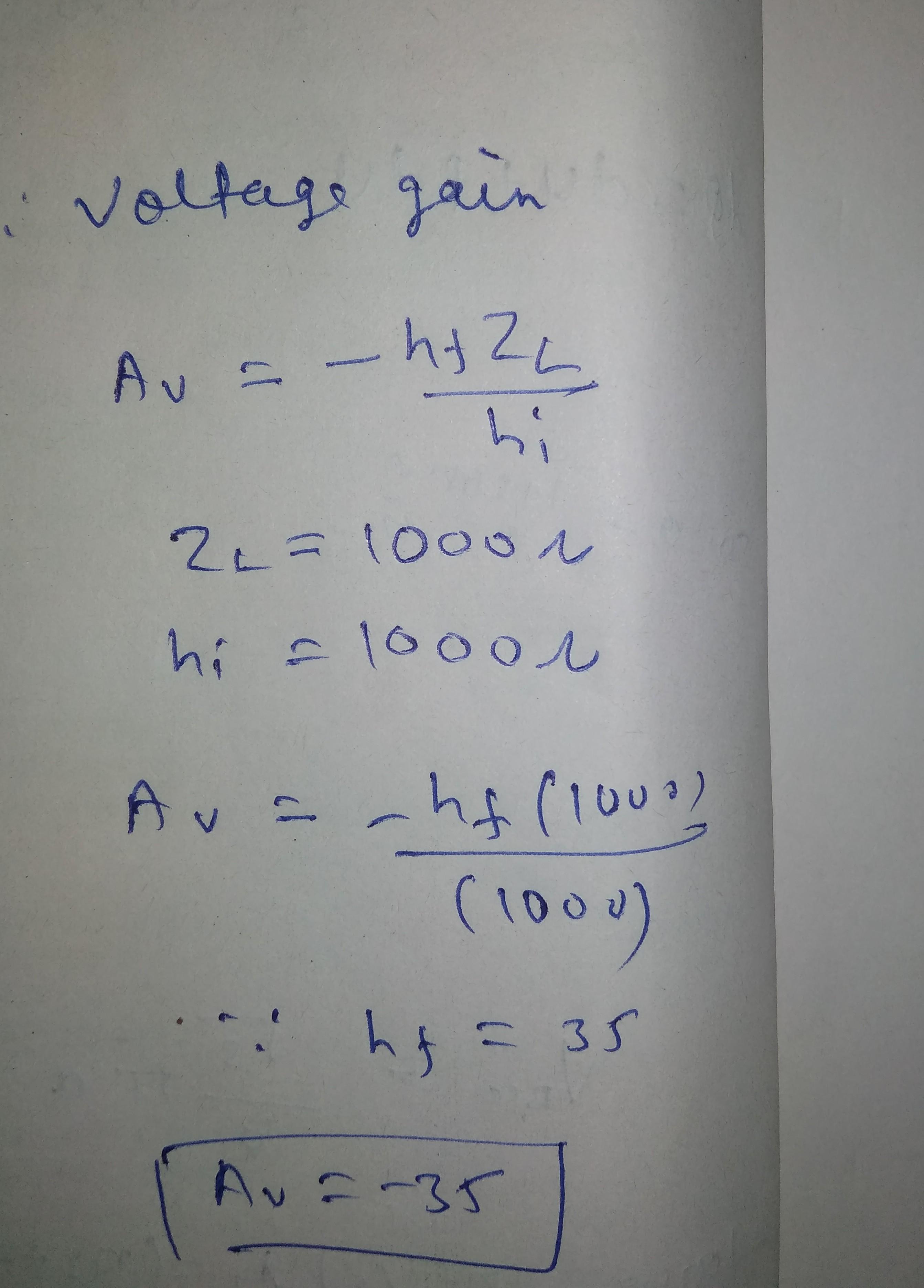

    solution: see concept and solutions
    • cropped8262176902053268616.jpg
    • cropped8011020301997666579.jpg
    Likes(0) Reply(0)
  • Dhairya sharma

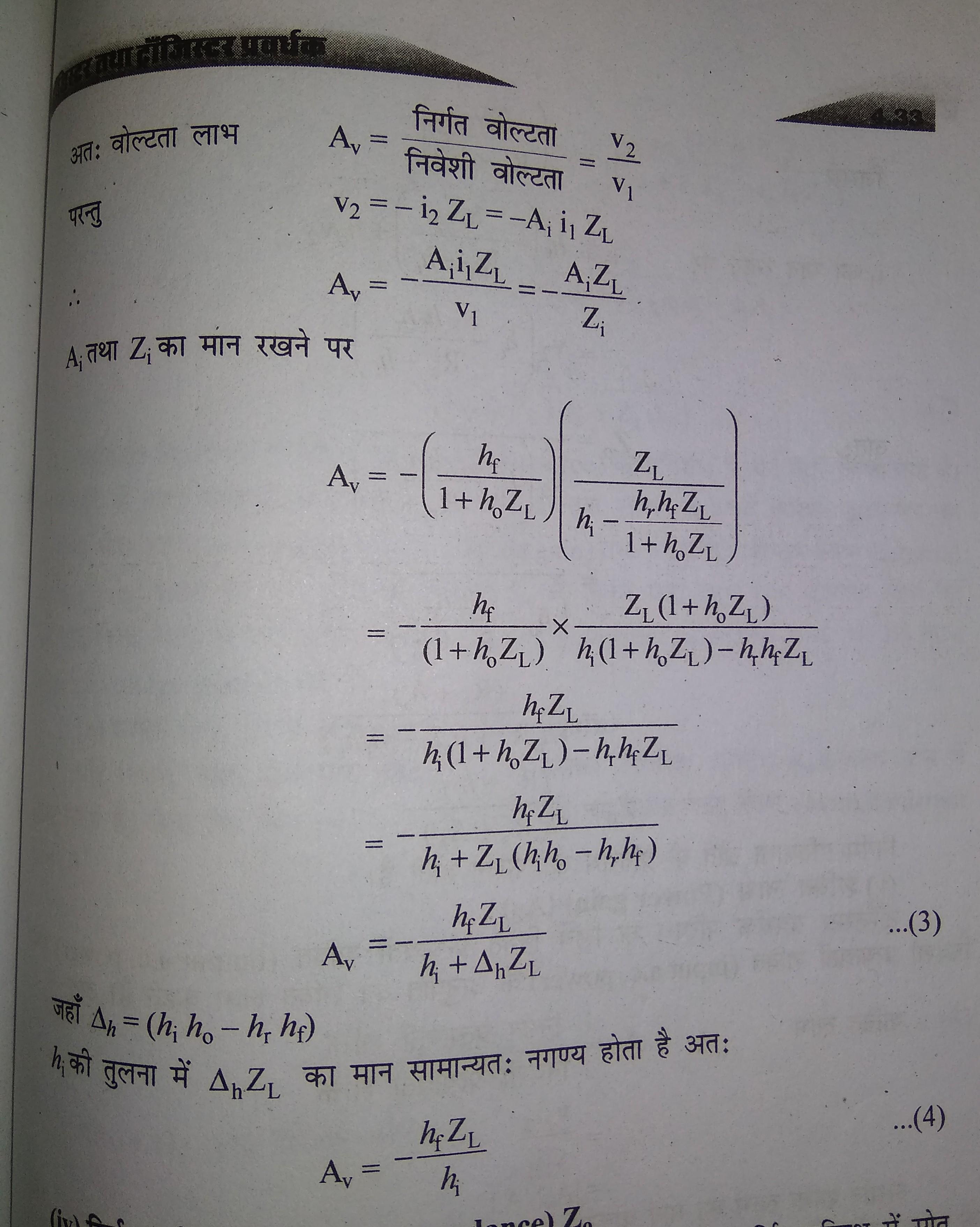

    concept theory and solution.
    • cropped2536739714170298301.jpg
    • cropped6564219387976222046.jpg
    Likes(0) Reply(0)
  • Dhairya sharma
    see formula and solution:
