The unit-cell of an orthorhombic mineral was compressed during deformation from 5 a to 4.5 a along the c-axis, with the other two dimensions remaining unaffecte

The unit-cell of an orthorhombic mineral was compressed during deformation from 5 A to 4.5 A along the c-axis, with the other two dimensions remaining unaffected. The absolute valuc of the shift in the position of the (001) peak in its XRD pattern is X-ray used = 1.5418 Å. For orthorhombic system: 1/d= Pl +FI + Pl2) 28. (Roumd off to 3 decimal places) (Wavelength of

2 Answer(s) Answer Now
  • 0 Likes
  • 5 Comments
  • 0 Shares
  • comment-profile-img>
    Rahul kumar

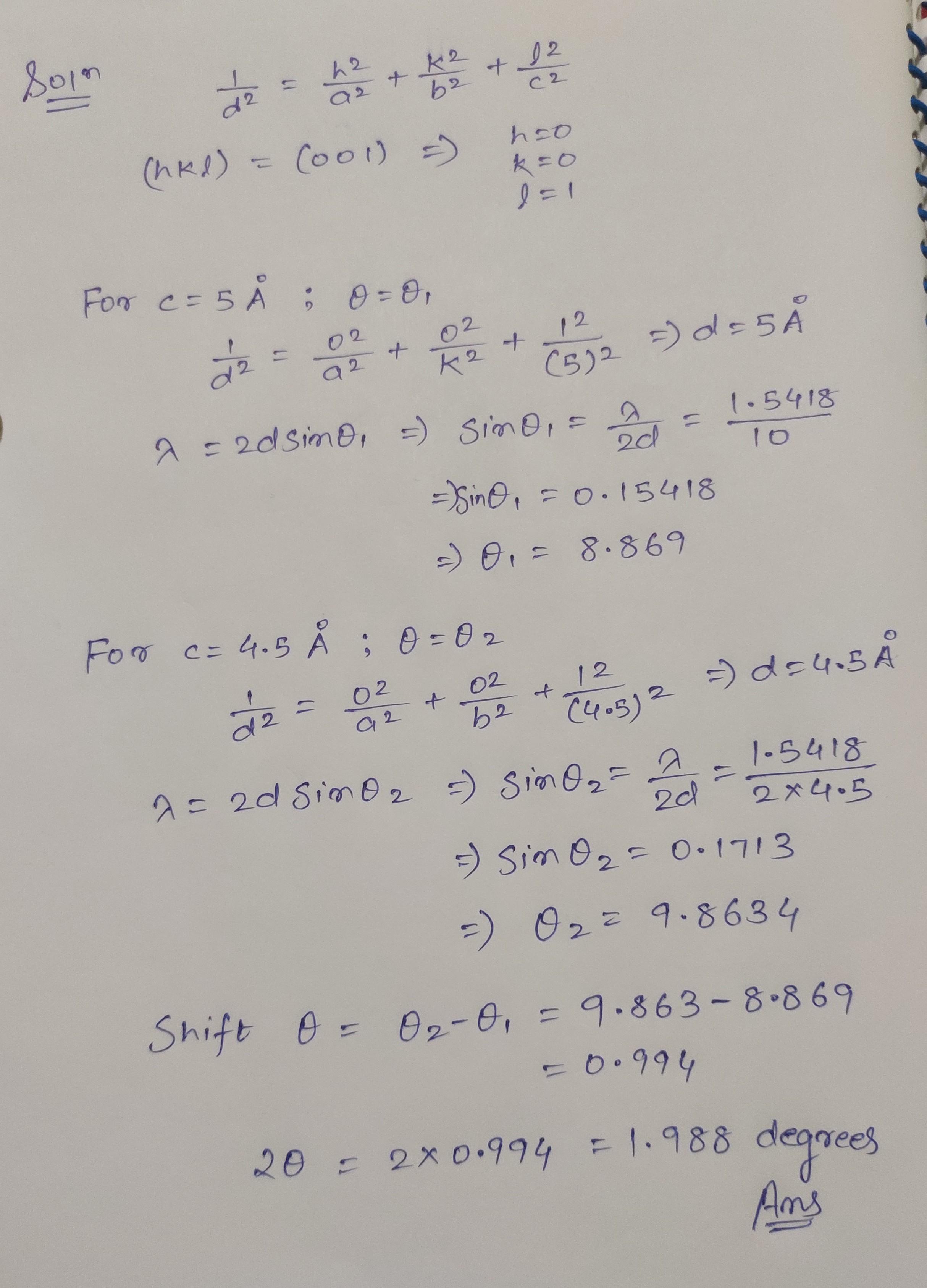

    Ans: 2(theta) shift = 1.988 degrees Please see the attached solution below. Fill free to ask if you have any further queries.

    eduncle-logo-app

    Dear Shivam, Kindly mark my comment as answered if you do not have any further queries.

  • Veer vikram singh Best Answer

    This question an be easily solved by applying Bragg equation

  • Veer vikram singh

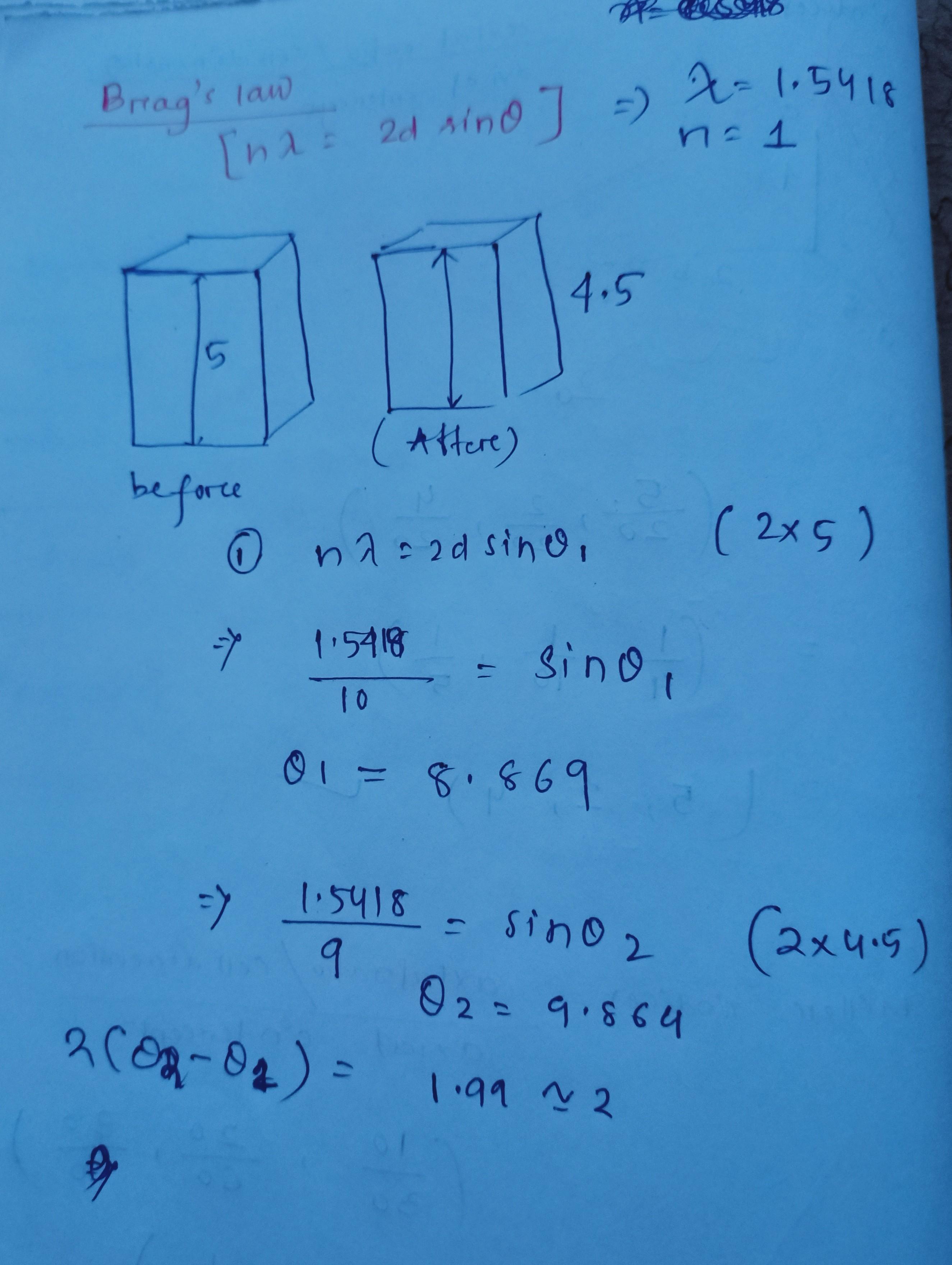

    Kindly see the solution attached.

    eduncle-logo-app

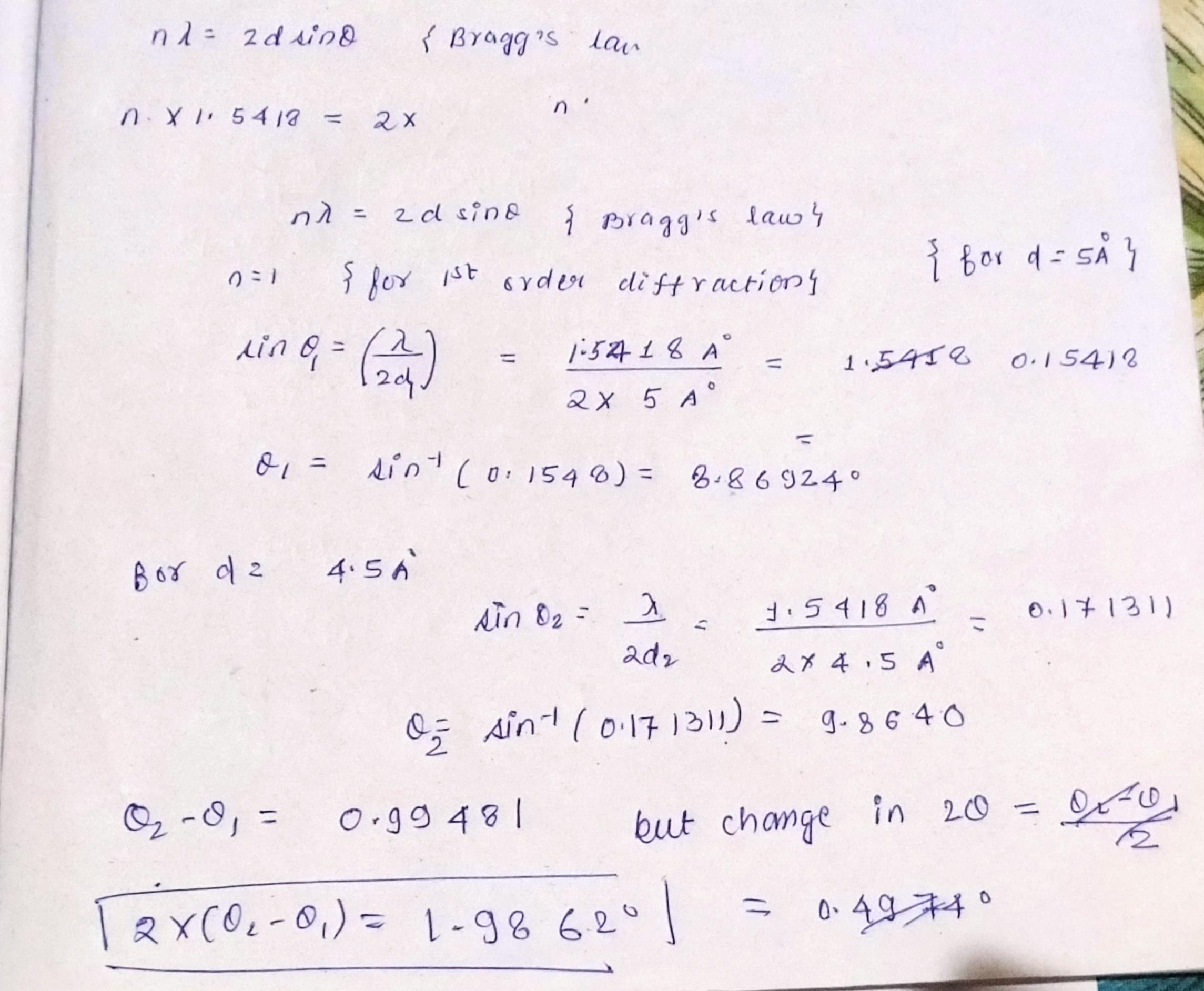

    This question can be easily solved by applying Bragg equation for 1st order diffraction
