Carson Asked a Question
June 30, 2020 6:11 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

10 2 points q10. find the cquivalent resistance between the terminals a and b: (a) 102 (b) 122 (c) 142 (d) 162 ao 102 402 152 www 5q 202 bo o (b) o (c) od)

10 2 points Q10. Find the cquivalent resistance between the terminals a and b: (a) 102 (b) 122 (c) 142 (d) 162 ao 102 402 152 www 5Q 202 bo O (b) O (c) Od)
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 2 Comments
  • Shares
  • Ghost. Best Answer

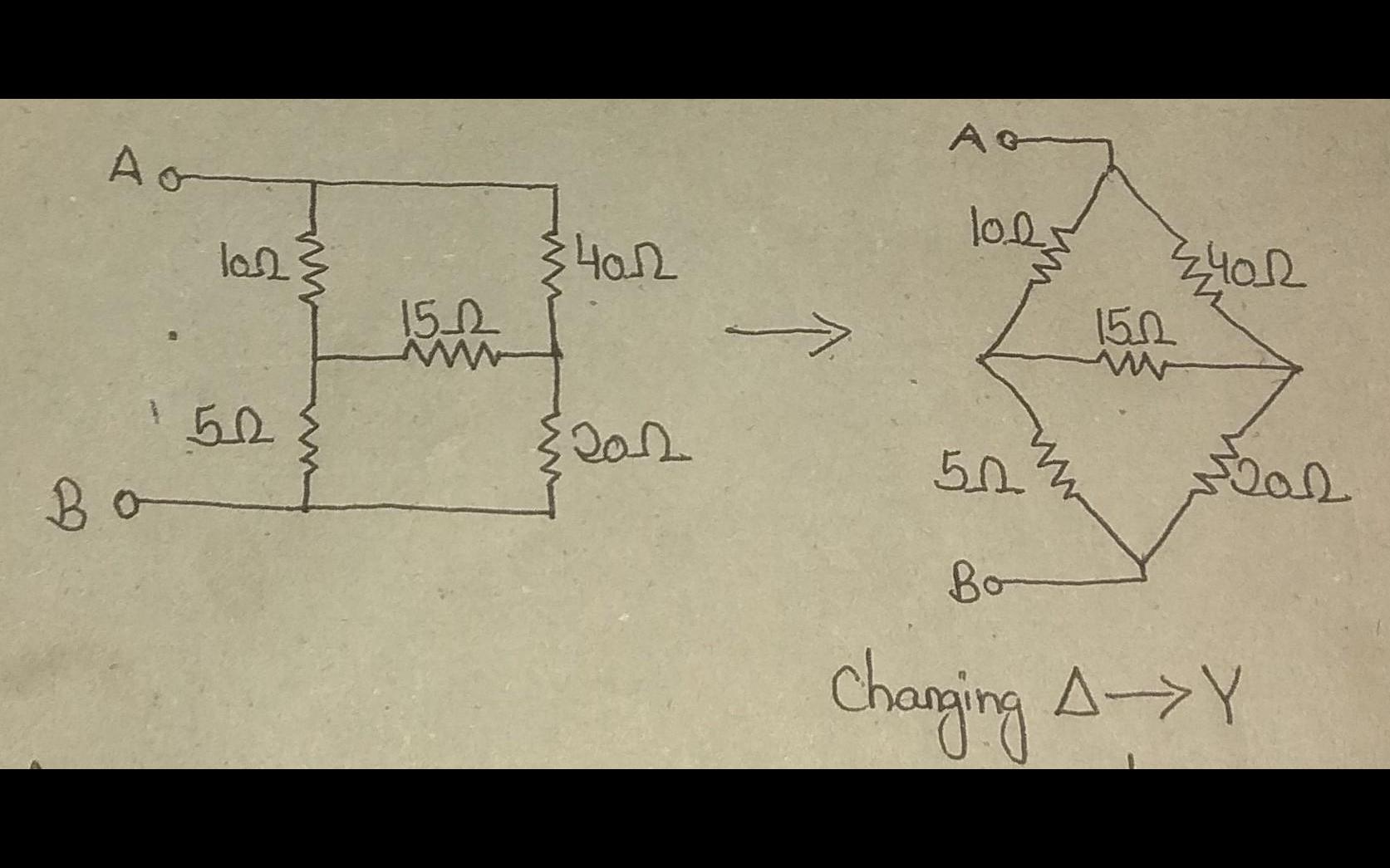

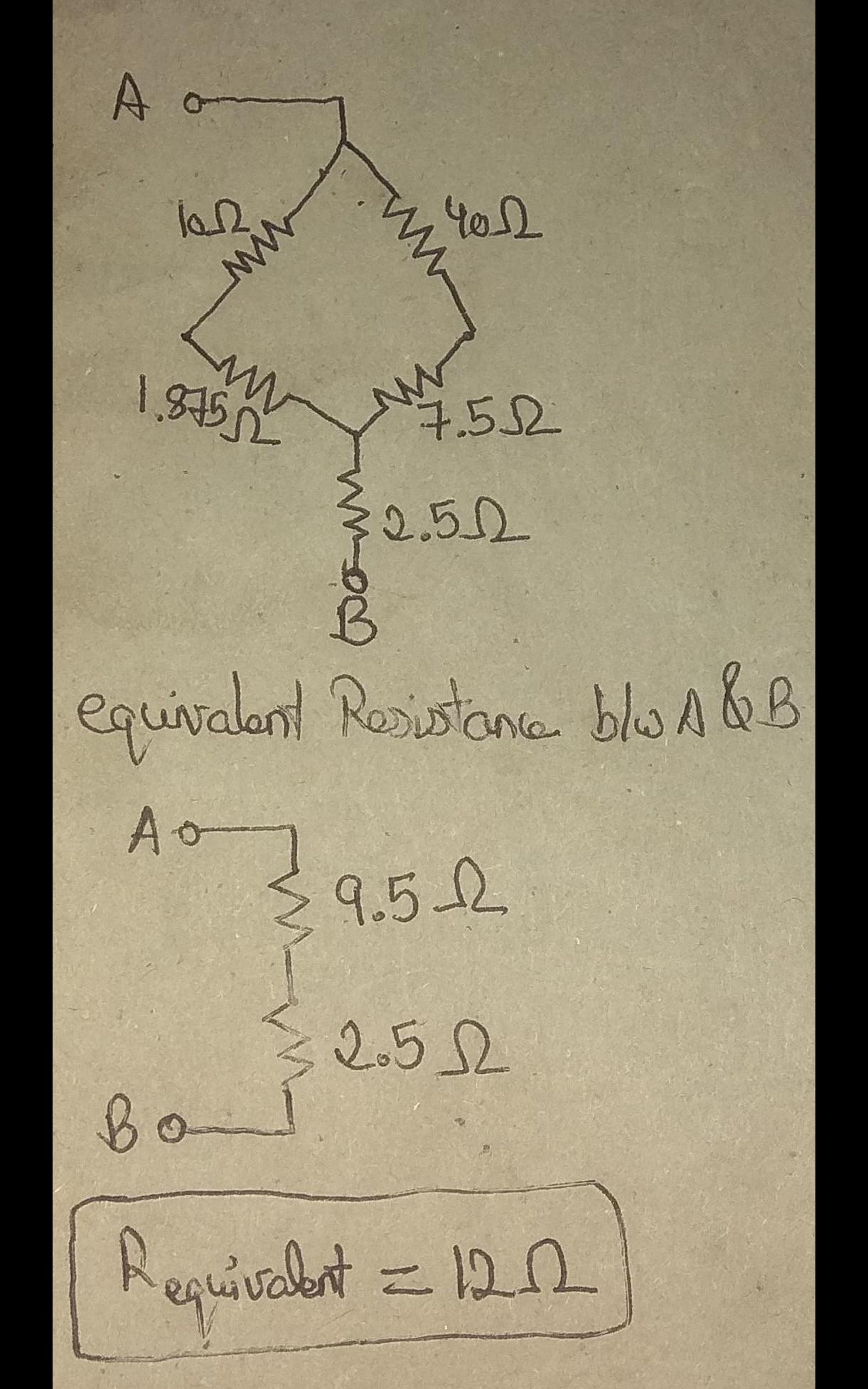

    option (b) is correct, equivalent resistance is 12ohm. i highly recommend you to read (Delta-wye) resistor networks. you can find it on khan academy website. here i am attaching so...
    Show more
    • cropped1315045814.jpg
    • cropped2122843032.jpg
    Likes(0) Reply(0)
  • Vaishnavi rajora
    option b is correct dear
    Likes(1) Reply(0)
