Sayan Patra Asked a Question
October 6, 2020 11:45 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

14 at the input of the which of the circuit shown in the figure. waveforms represents the output jlowing most closely? a sine wav of 5v amplitude is applied at

14 at the input of the Which of the circuit shown in the figure. waveforms represents the output Jlowing most closely? A sine wav of 5V amplitude is applied at th. ww V 1kS out 3V (a) 5V -5V (b) 5VT A TUT -3V (c) 5V UVUT -3V (d) nt3V A0.Ceno -5V IAM PH-20
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 2 Comments
  • Shares
  • Chandra dhawan

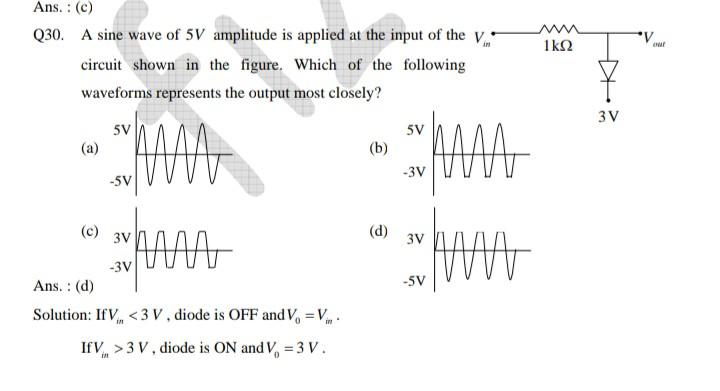

    see attachment
    • cropped8758042001473020696.jpg
    Likes(1) Reply(0)
  • Balram thankyou
    4 th is right ,because diode is in forward baise...
    Likes(1) Reply(0)
