Arindam paul Asked a Question
March 2, 2021 12:38 pmpts 30 pts
15. Consider the following circuit, with r =15.0 Q,R =102, and L =250 mH. What is the frequency fat which the amplitude of the output voltage is half that of the input voltage? Hint: the impedance of the inductor is XĻ = oL = 2n fL. V a. 35 Hz b. 11 Hz c. 5.5 Hz d. 1.1 Hz
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Eduncle thankyou

    Dear Arindam

    Greetings!!

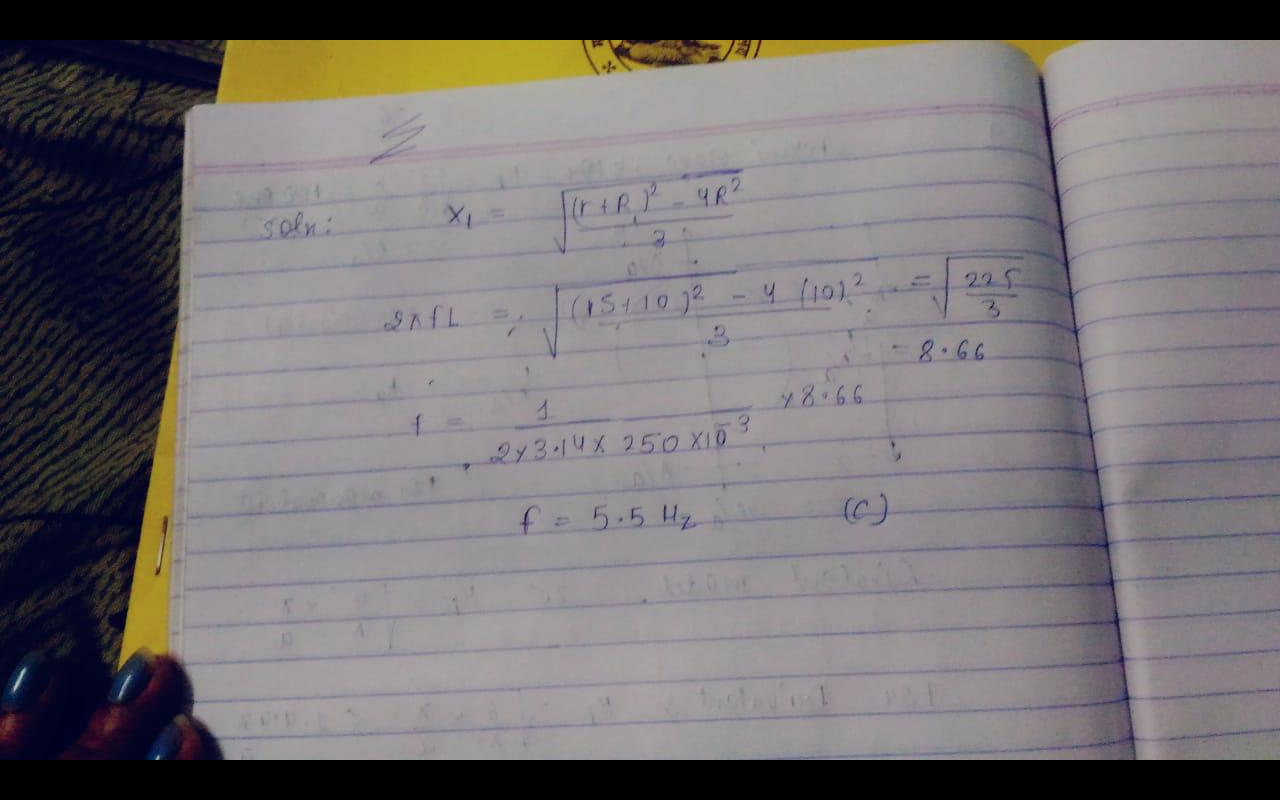

    Please find the attached solution

    Thank you for asking your query

    • MicrosoftTeams-image (8).png
    Likes(0) Reply(0)
