Amrutha T posted an Question
July 31, 2020 • 17:47 pm 30 points
  • IIT JAM
  • Physics (PH)

17 group i contains x- and y- components of the electric field and group li contains the type of polarization of light. group i group ii p. e, = cos(øt+ +kz) v2

how can I differentiate linearly polarised, unpolarised, elliptical polarised and circularly polarised. method please???

2 Answer(s) Answer Now
  • 0 Likes
  • 6 Comments
  • 0 Shares
  • comment-profile-img>
    Somnath Best Answer

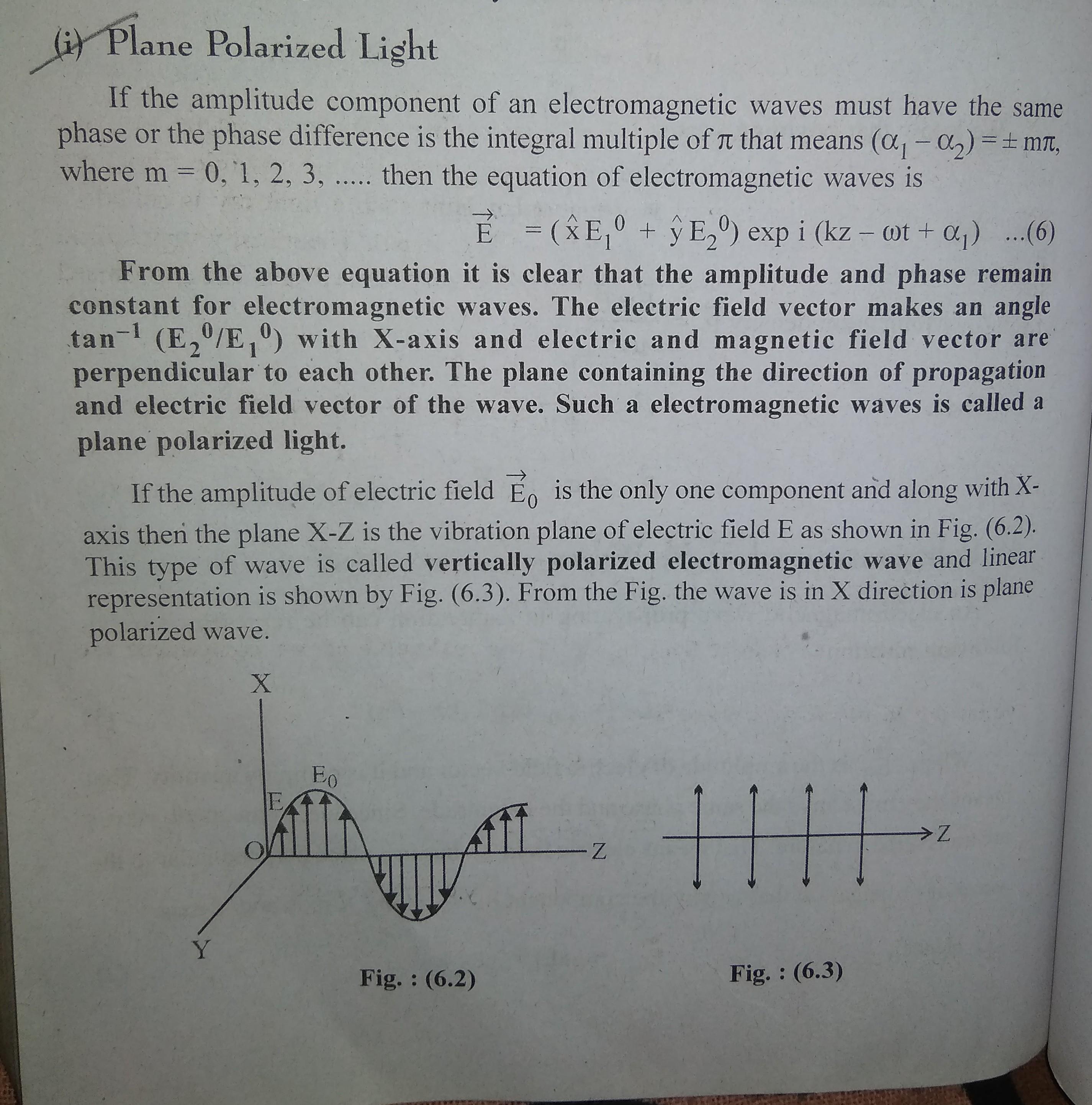

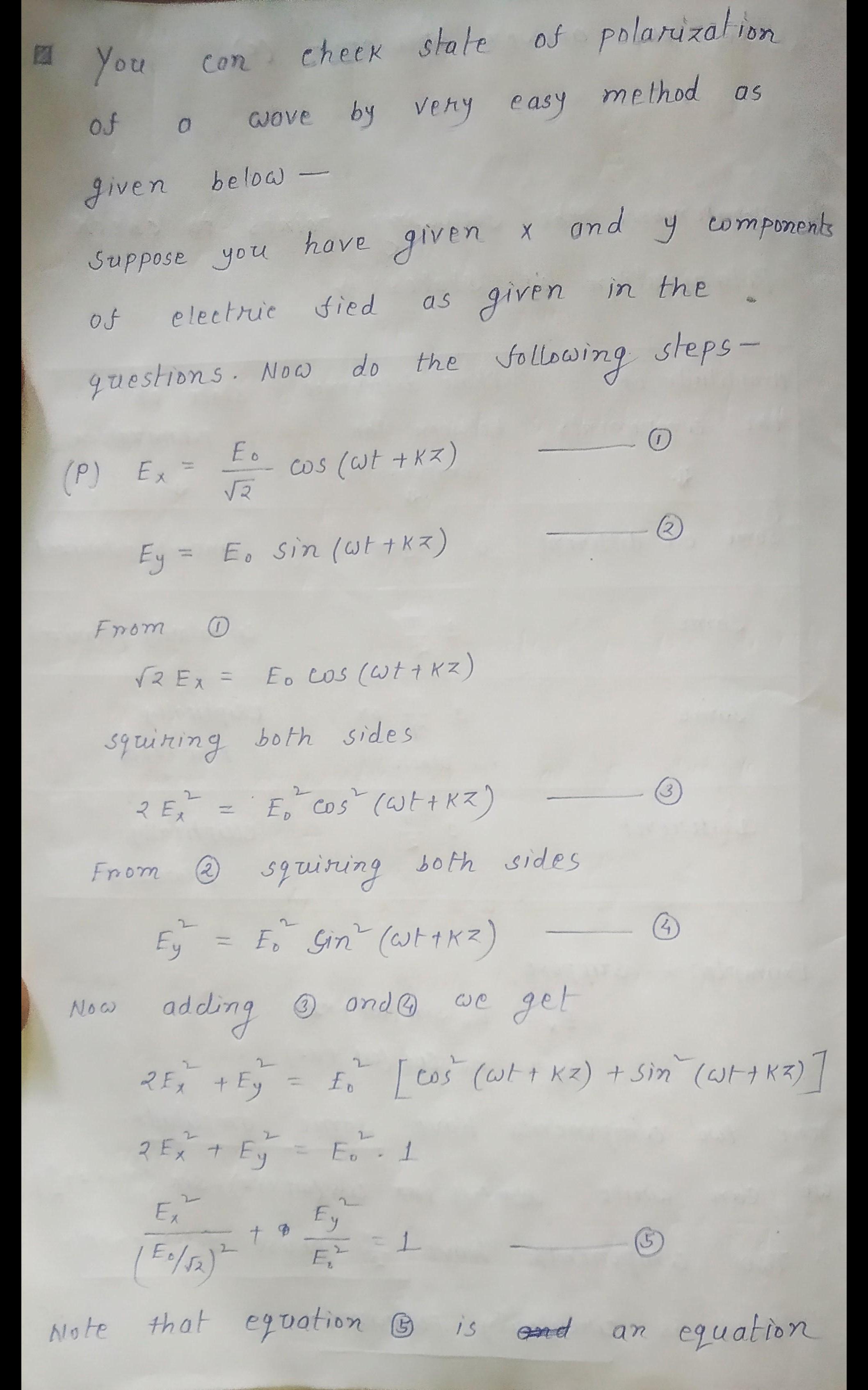

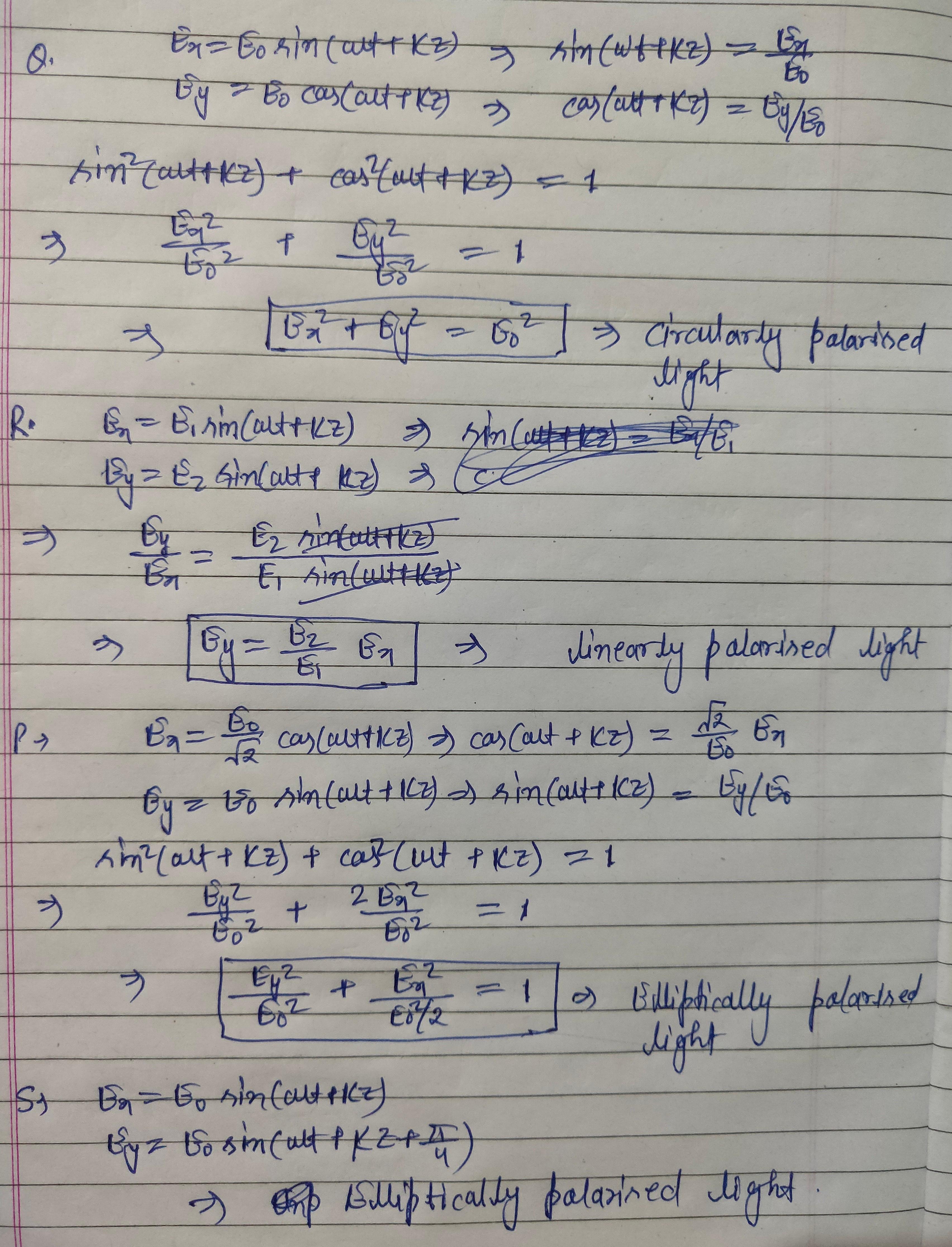

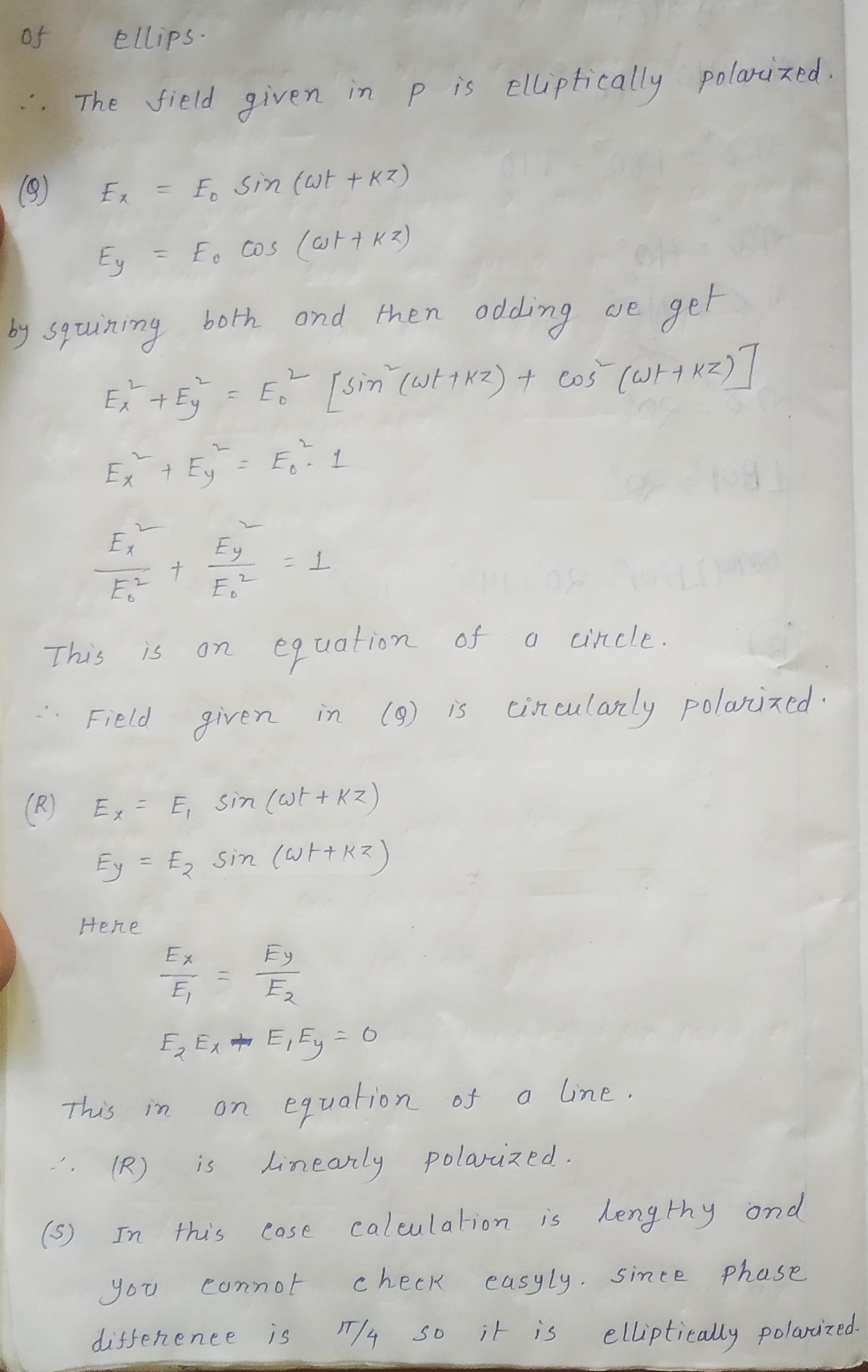

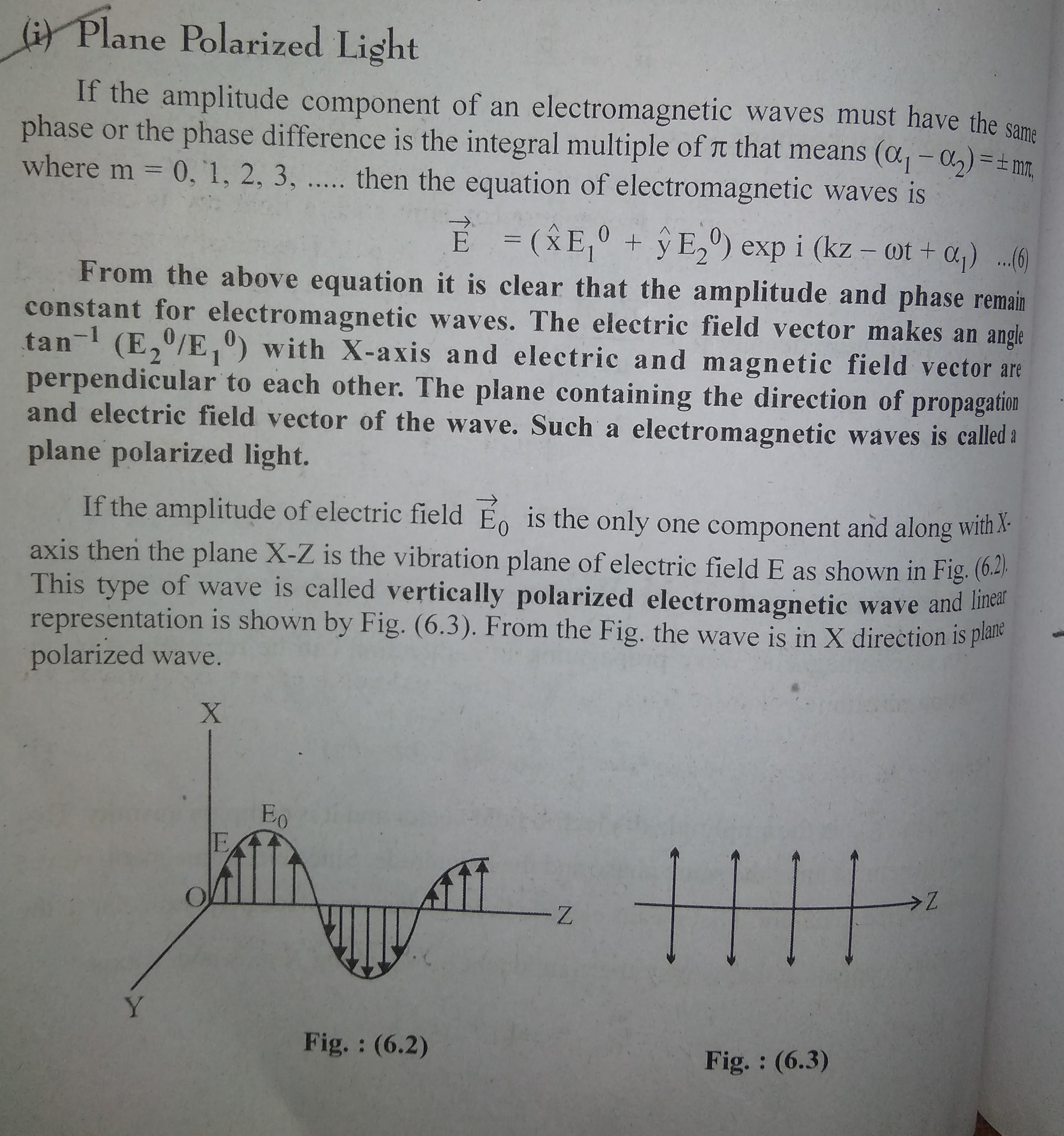

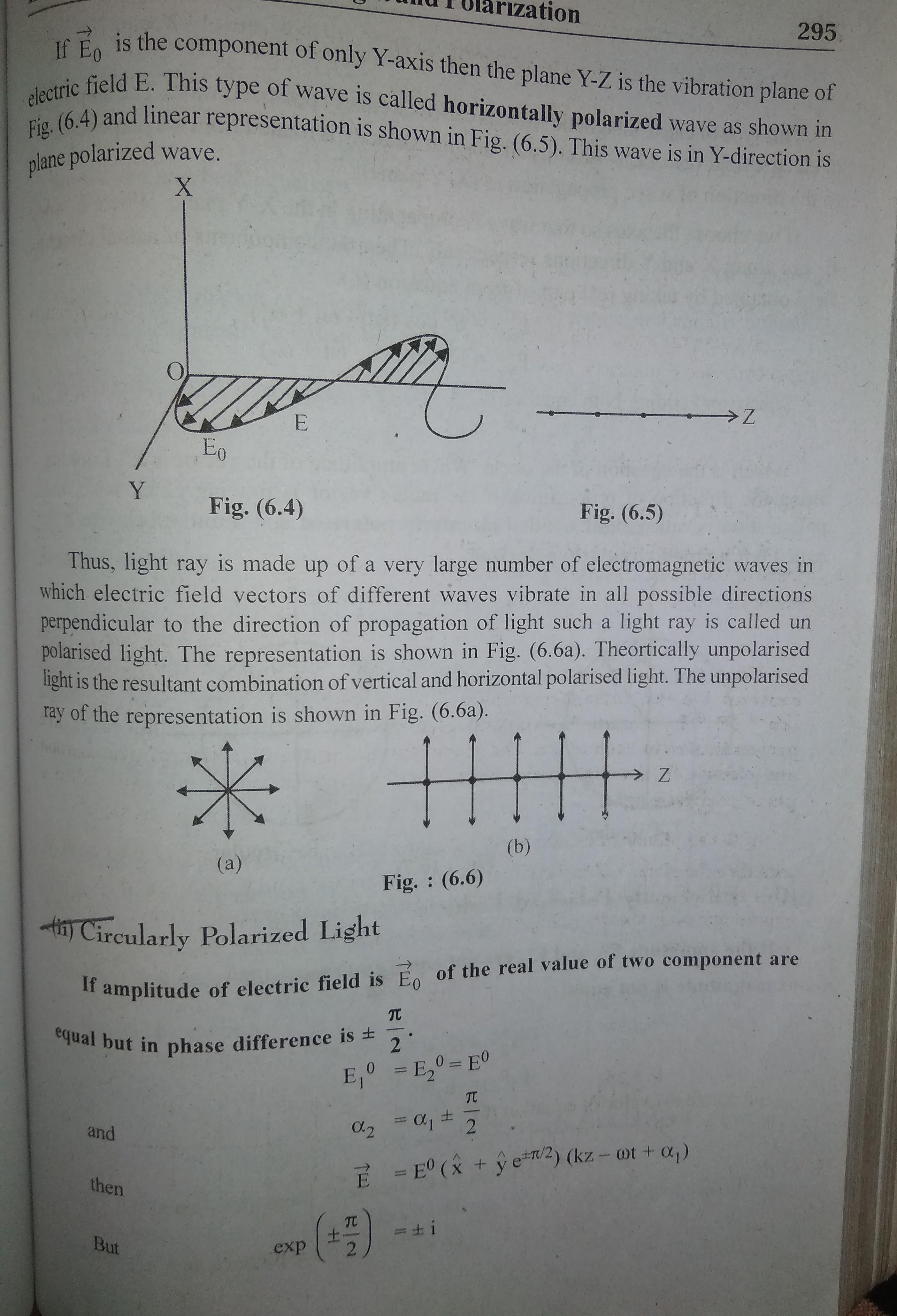

    You can check the states of polarization of a wave by very simple methods.I am attaching some image.In the first page a table is given if you can remember it then you can tell the states of polarization simply after seeing the comonents of the electric field(X and y component of E).If you don't want to remember the table then just see the next 2 pages to find the states of polarization by some easy mathematical steps.Hope it will help you a lot.Option C is the answer of the question you have attached.

  • comment-profile-img>
    Dhairya sharma

    if phase difference is 0 or π thrn they will be linearly polarised

    eduncle-logo-app

    but if frequency is not same then they will be unpolarized

  • comment-profile-img>
    Dhairya sharma

    if in both wave phase difference is π/2 then they are circularly polarized

    eduncle-logo-app

    but amplitude should be same otherwise they would be linearly polarized
