Shrabana adak Asked a Question
April 24, 2021 9:49 ampts 30 pts
18. A segment of a circuit is shown in figure V = 5V, Ve=4sin 2r V. The voltage V, is given by A 503V, 2H. (a) 3 8 cos 2 V (b) 32 sin 21 V (c) 16 sin 2r V (d) 16 cos 21 V
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Monika thankyou

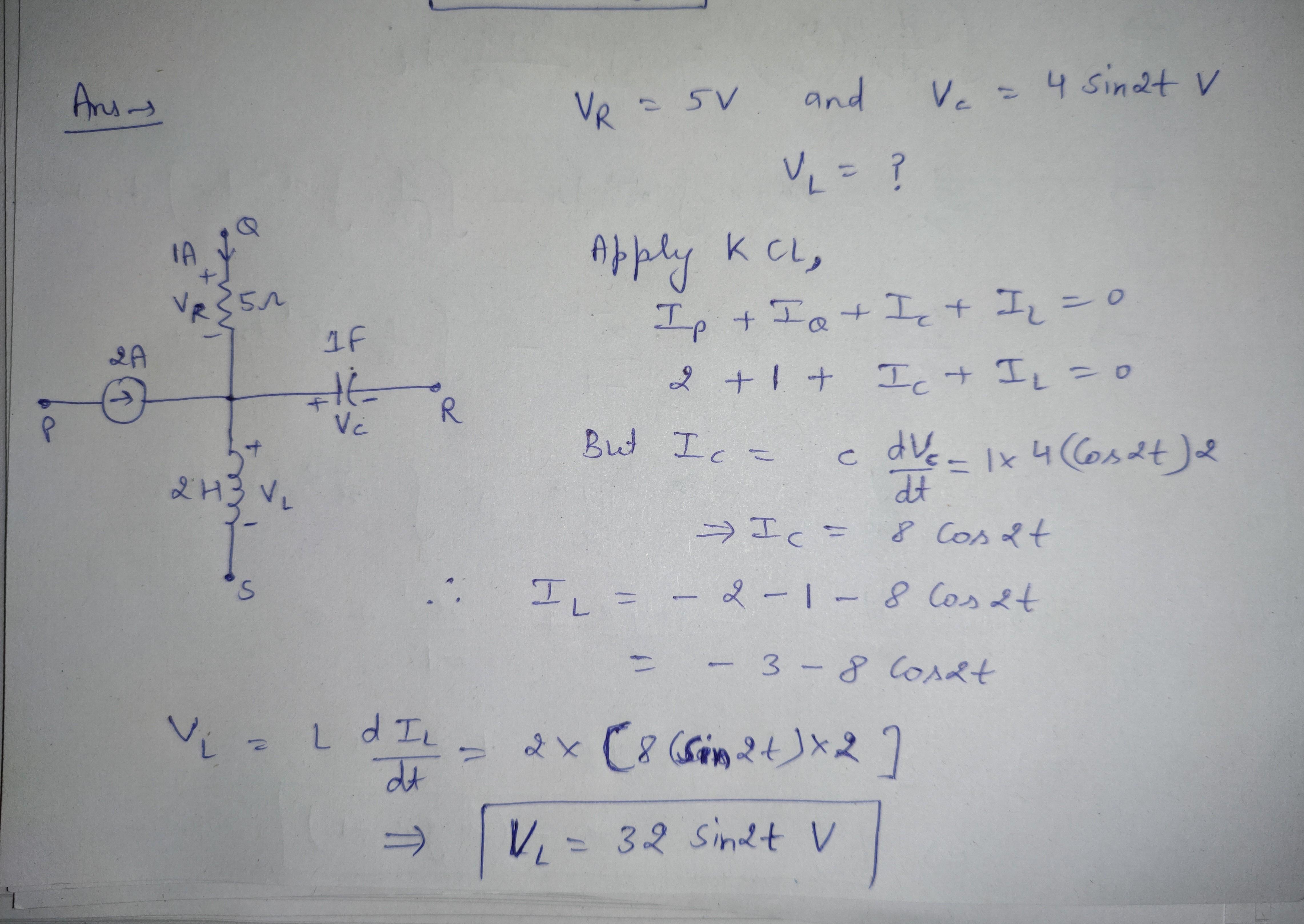

    option (b) is correct see the attachment
    • cropped494458754860841168.jpg
    Likes(0) Reply(0)
