Carson Asked a Question
June 30, 2020 6:48 pmpts 30 pts
2 points= In the circuit shown in the figure the Norton current /y and Norton resistance Ry as seen by the load between point A and B are respectively 22 w 22 w 15 (a) 2.04, 2.202 b) 3.04, 3.32 (c) 4.04, 3.32 (d) 2.04, 3.32
  • 2 Answer(s)
  • 0 Likes
  • 4 Comments
  • Shares
  • Ruby negi Best Answer
    option b is correct....

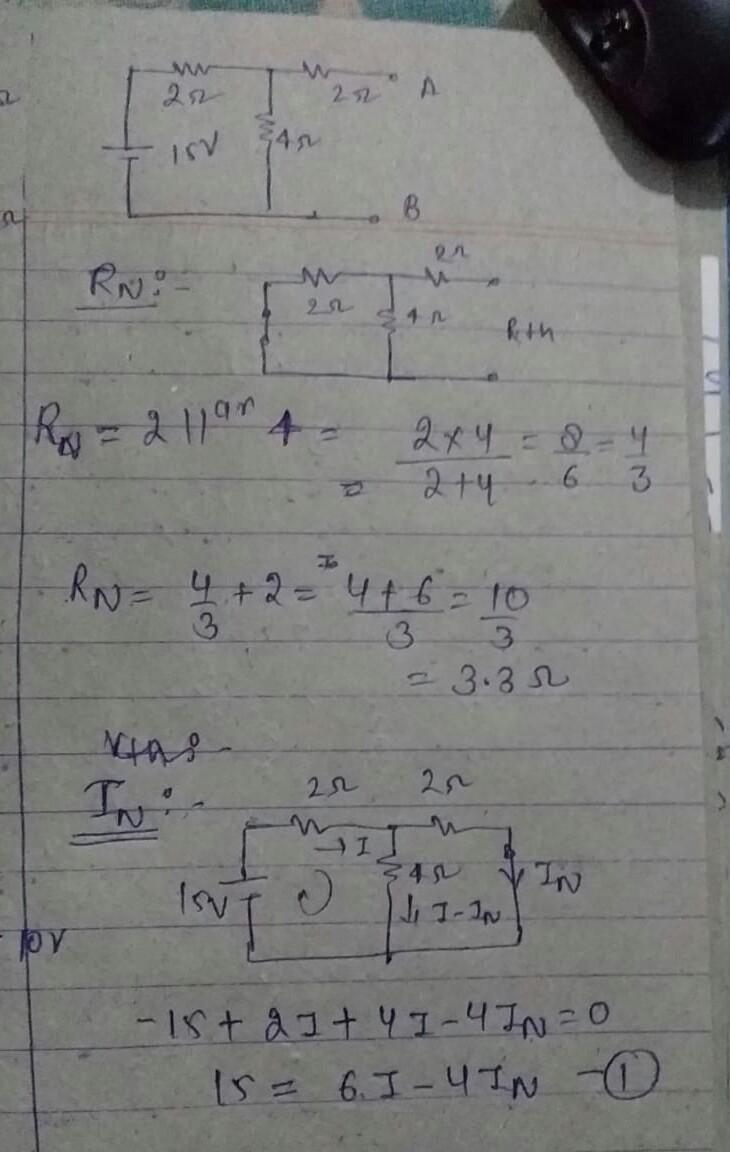

    • cropped-1856281506.jpg
    • cropped810061202.jpg
    Likes(1) Reply(2)
    Ruby negi
    for any doubt u can ask.
  • Chandra dhawan thankyou
    see attached file it's very helpful for you dear

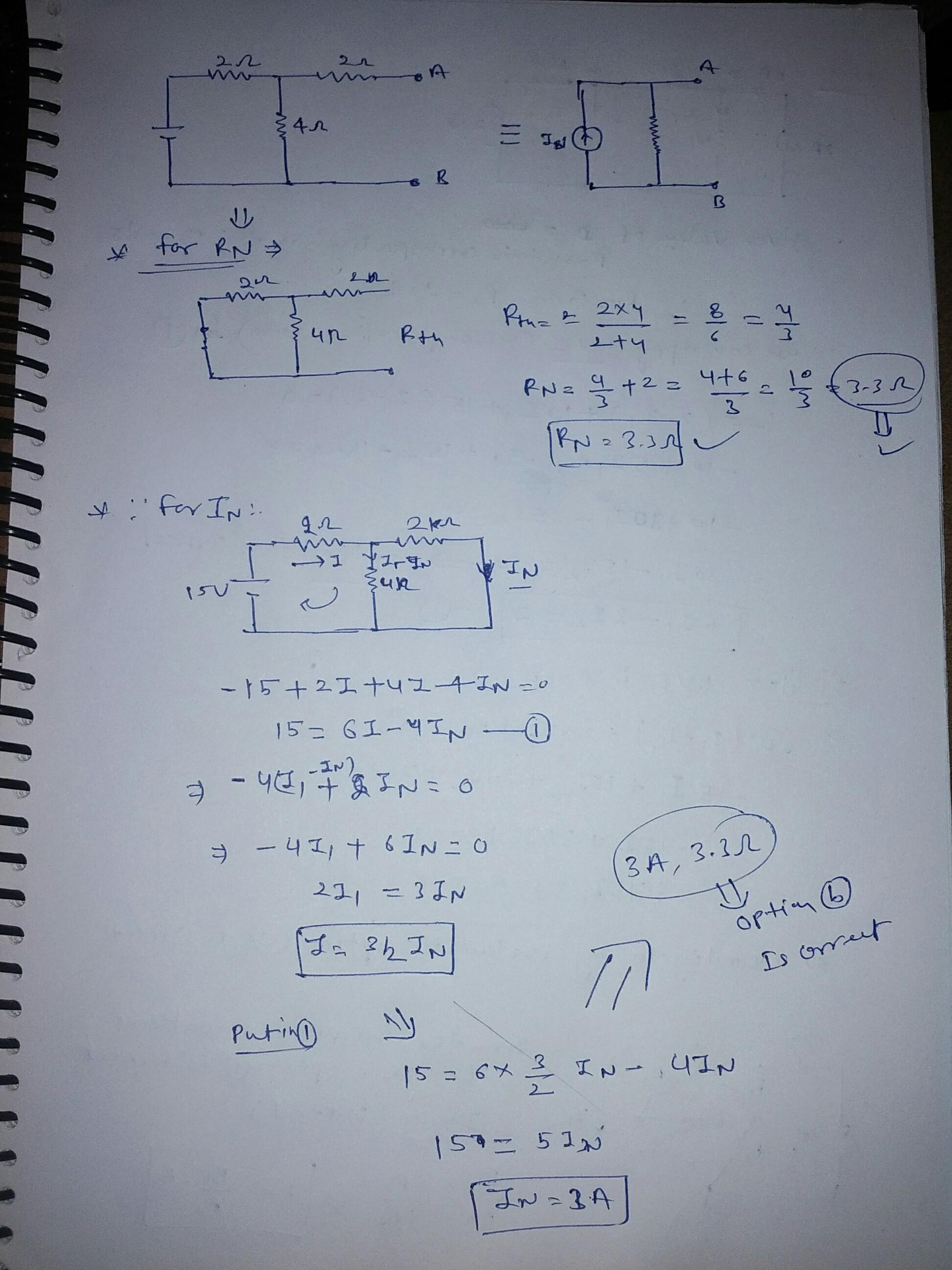

    • cropped747074472.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    see attached file it's very helpful for you
  • Ruby negi
    option b is correct
    Likes(1) Reply(0)
  • Vaishnavi rajora
    see

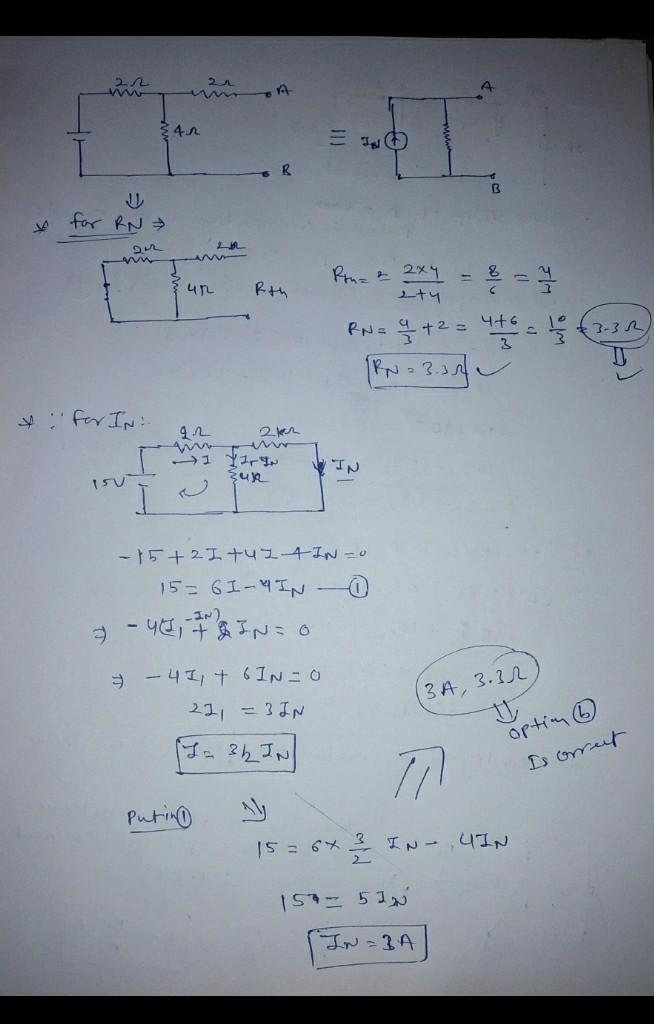

    • cropped1177767911807727472.jpg
    Likes(1) Reply(0)
