2 points q7. in the circuit shown in the figure the norton current /y and norton resistance ry as seen by the load between point a and b are respectively 22 www

2 points Q7. In the circuit shown in the figure the Norton current /y and Norton resistance Ry as seen by the load between point A and B are respectively 22 www 12.4 42 330 (a) 44, 22 b) 84, 222 (c) 84, 3S2 (d) 44, 32 O O O (c) O(d)

1 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • comment-profile-img>
    Dhairya sharma

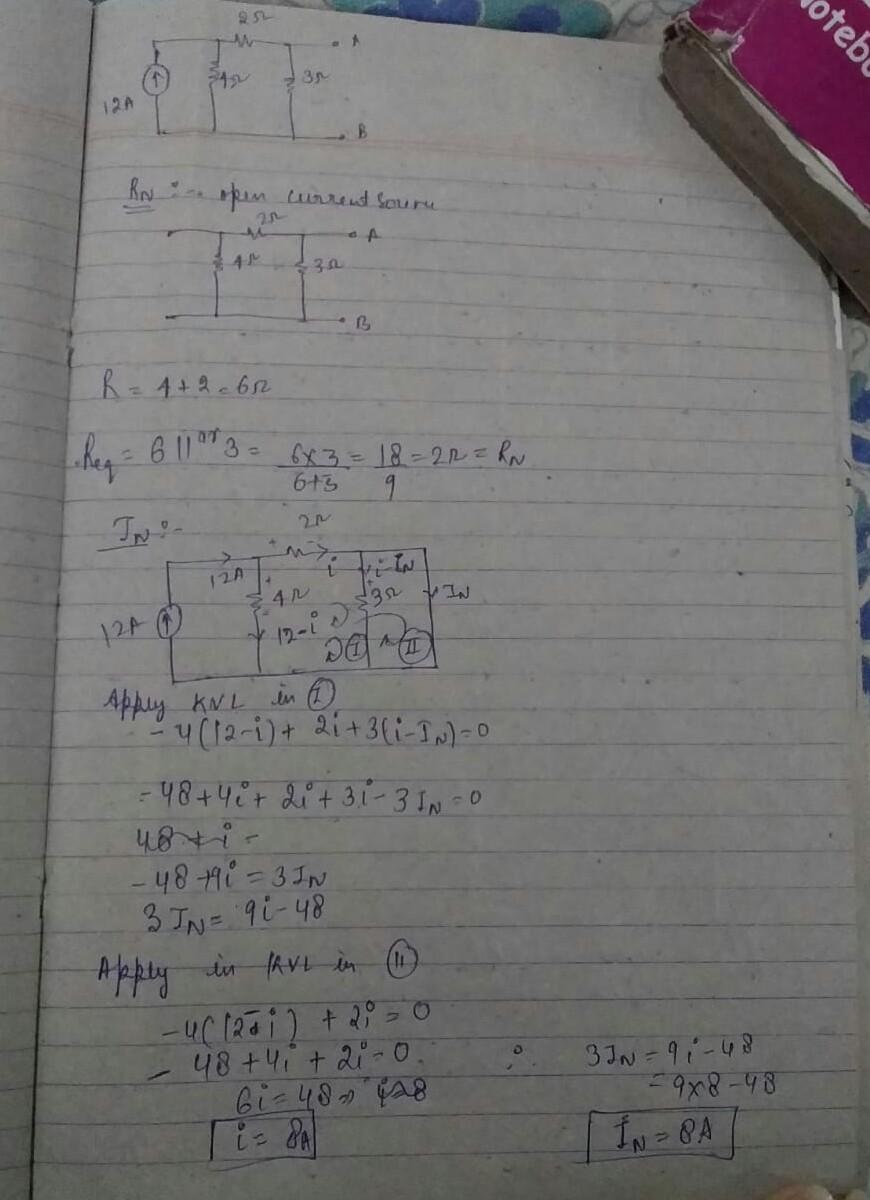

    option b is correct.. In this prob I would like to suggest you u... first of all I try to solve R equalent and after this.. u can apply kvl rule and find current.. so ultimately u get the answer.. like tubby ma'am already did it ...best regards...

  • comment-profile-img>
    Chandra prakash

    option b is correct.. In this prob I would like to suggest you u... first of all I try to solve R equalent and after this.. u can apply kvl rule and find current.. so ultimately u get the answer.. like tubby ma'am already did it ...best regards...
