23) calculate the current through the circuit and the potential difference across the diode shown in figure (45-e1). the drift current for the diode is 20 ua. 5

23) Calculate the current through the circuit and the potential difference across the diode shown in figure (45-E1). The drift current for the diode is 20 uA. 5.0 V 29.)
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 3 Comments
  • Shares
  • Ruby negi thankyou
    current in the circuit is equal to drift current and for potential difference across diode is 5-(20*20*10^-6) is equal to approximately 5V.
    Likes(1) Reply(0)
  • Chandra dhawan

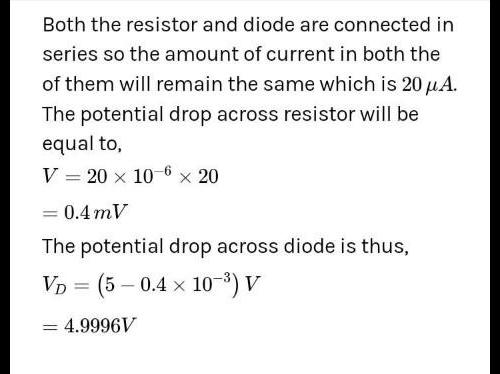

    see attached file it's very helpful for you dear
    • cropped-1620160641.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    see attached file it's very helpful for you
  • Ruby negi

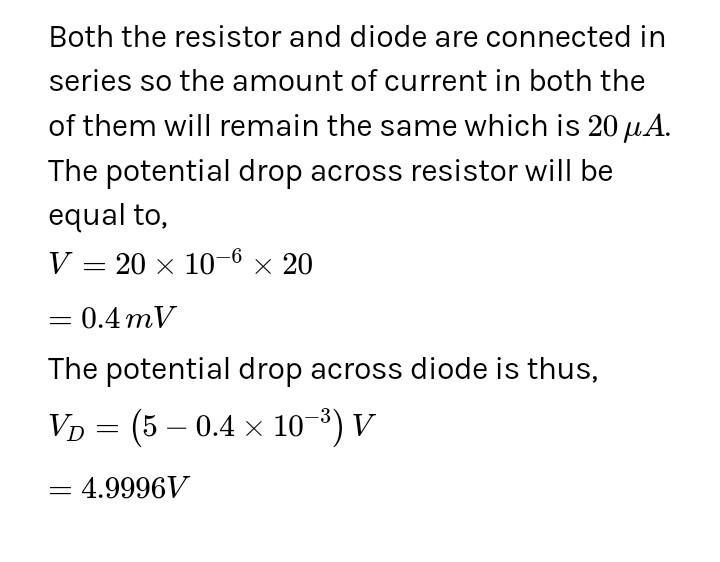

    see this also. .
    • cropped-421705888.jpg
    Likes(1) Reply(0)
