Reetu Asked a Question
January 23, 2020 11:19 ampts 15 pts
  • IIT JAM
  • Physics (PH)

29. An n-p-n transistor is connected in a circuit as shown in the figure. If lc=1mA, B= 50, VBE=07 V and the current through R, is 10 Ig. where la s current. Th

29. An n-p-n transistor is connected in a circuit as shown in the figure. If lc=1mA, B= 50, VBE=07 V and the current through R, is 10 Ig. where la s current. Then, the ratio R,/R is 0 lg, where Ig is the base 6V 3 25K R2 -Vc Vog-3V -V-0.5V oc 0.5 K 1 ortt uods uo (b) 0.25 (d) 0.275 (a) 0.375 (c) 0.5
  • 1 Answer(s)
Answer Now
  • 0 Likes
  • 1 Comments
  • Shares
  • Eduncle Best Answer

    Dear Reetu,

    Greetings!!

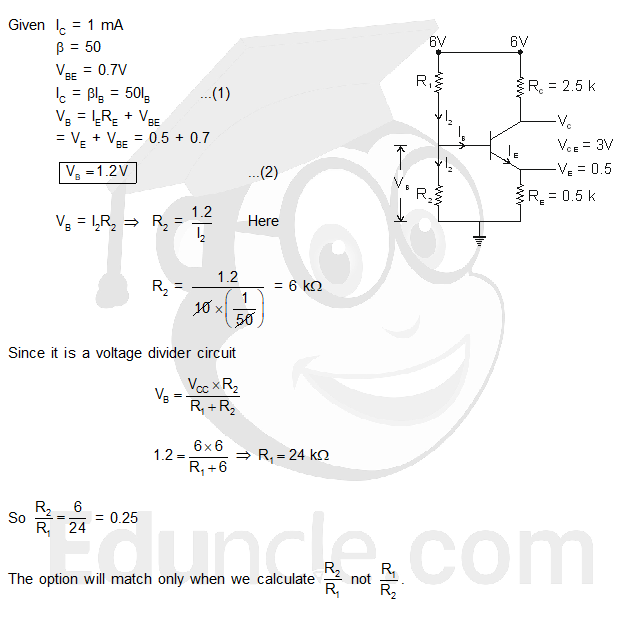

    Refer the attached image for solution.

    Thank you for asking your query.

    • ph281.PNG
    Likes(0) Reply(0)
