Carson Asked a Question
June 30, 2020 6:33 pmpts 30 pts
3 2 points Q3. Let I and h represent currents in the 102 and 202 resistance respectively. The correct expression describing Kirchoff's voltage loop law in one of the following loops is, (a) 30/,-101, =10 (b)-15/, +20/, = -20 (c) 30/,-15/, = 10 (d) 157, 351, = -20 a 102 202 w 2A 52 152 20 V O () (b) O() O () Clear selection
  • 2 Answer(s)
  • 0 Likes
  • 3 Comments
  • Shares
  • Dhairya sharma

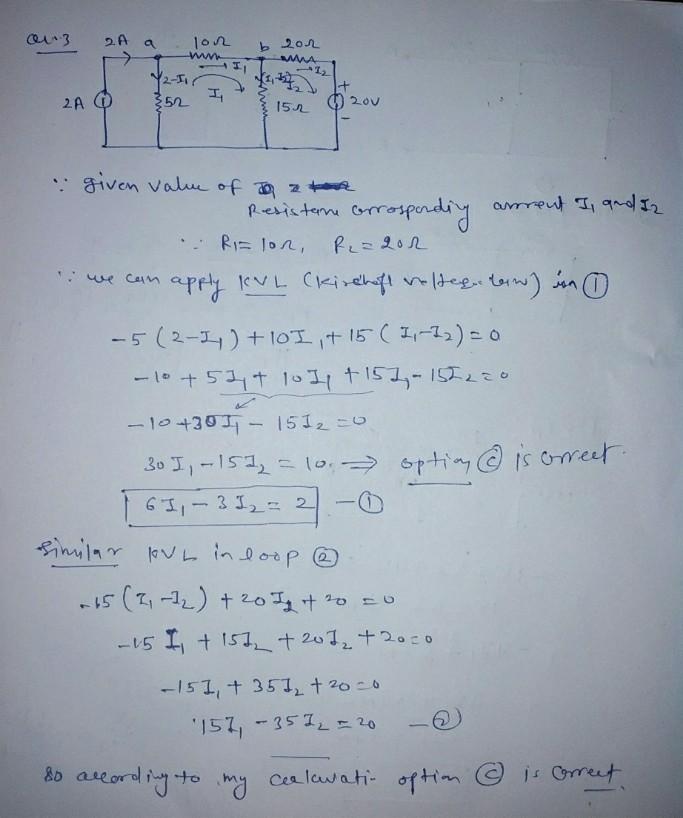

    see attached
    • cropped8088953856624705561.jpg
    Likes(1) Reply(0)
  • Chandra dhawan thankyou
    see attached file it's very helpful for you dear
    Likes(1) Reply(0)
  • Ruby negi Best Answer

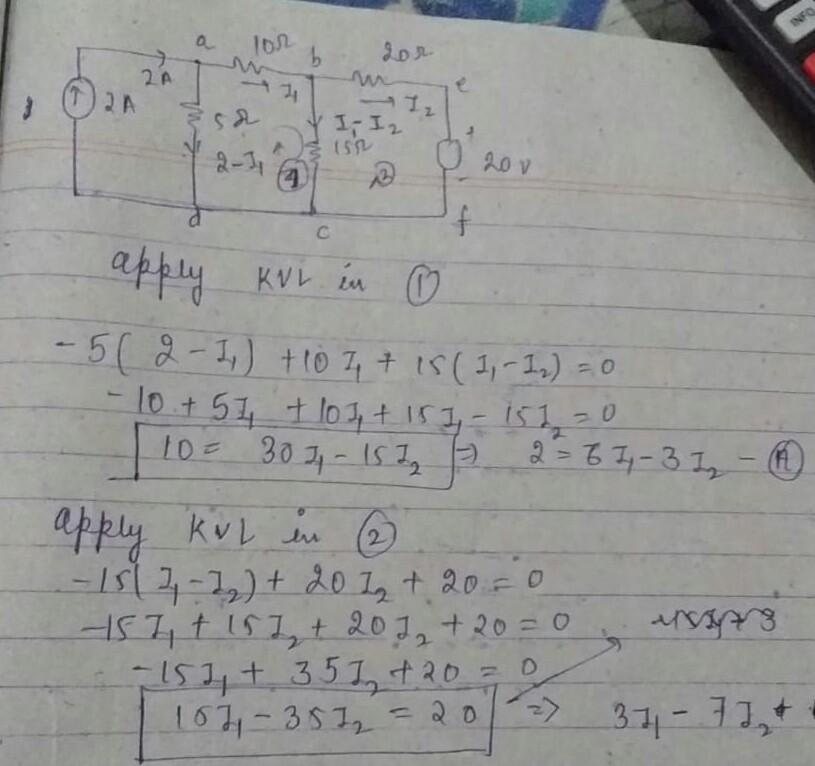

    u can match ur ans..
    • cropped-991397379.jpg
    Likes(1) Reply(1)
    Ruby negi
    feel free to ask..
