Aditi agrawal Asked a Question
May 11, 2020 5:25 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

please help solving it.

(3.) Which of the following truth table for the given logic is true? X (B) xY Z (A) 0 0 0 O 0 1 1 o1 1 1 1 0 111 1 1 1 111 (D) xyz xy z 0 01 o 1 0 1 0 o (C) 0 0 0 o 1 1 1 0 1 110 1 1 0 . The simplified logic expression for the following logic diagram is A B D C Y = AC(A B) (B) (D) Y =C(A+ B) +BA (A) (C) Y AC Y = ABC
  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 5 Comments
  • Shares
  • Ruby negi Best Answer

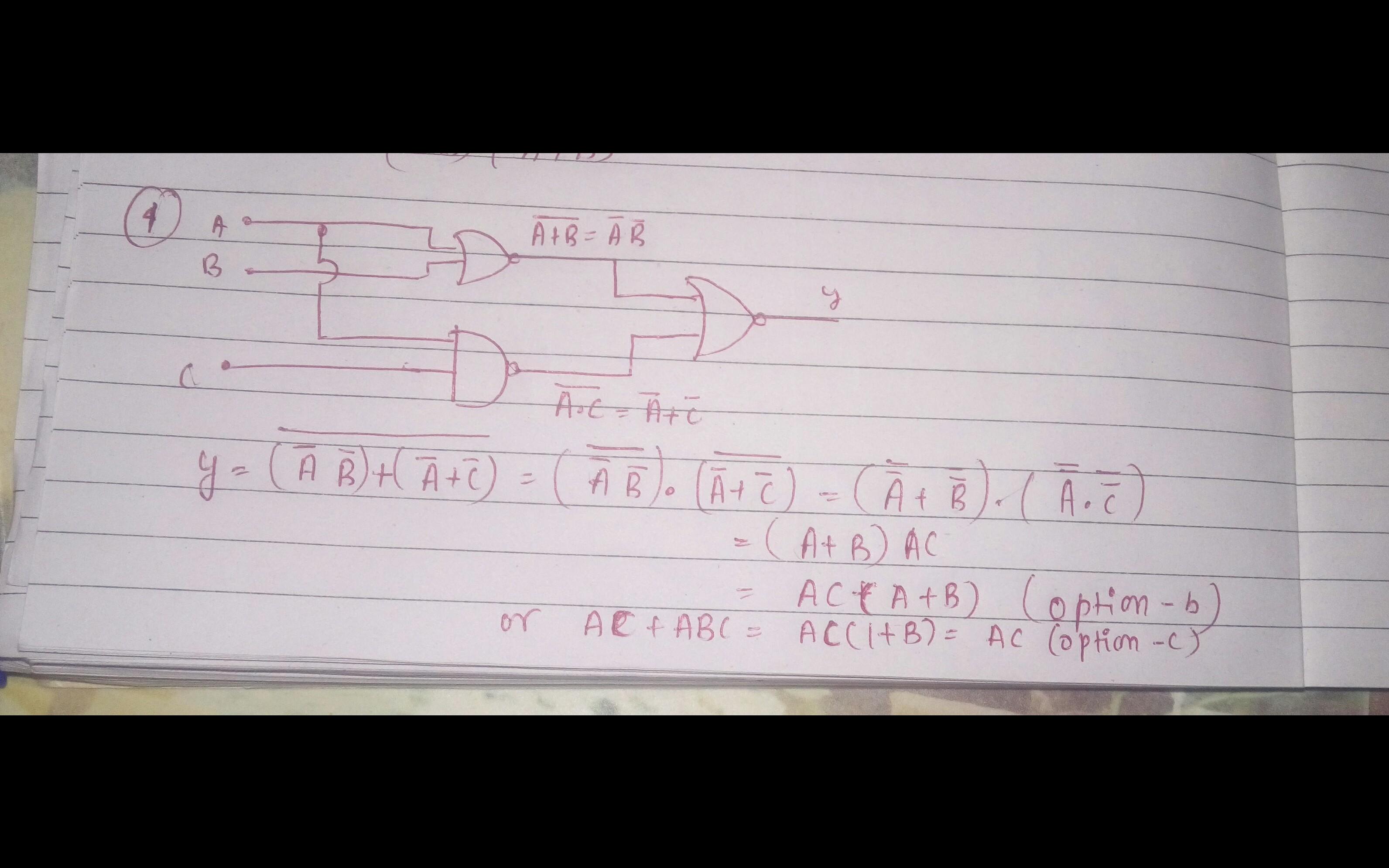

    if this is msq type then option b,c is correct but if it is McQ then you have to tick that option which is final ans means option c is correct...
    • cropped340420100.jpg
    Likes(1) Reply(0)
  • Ruby negi

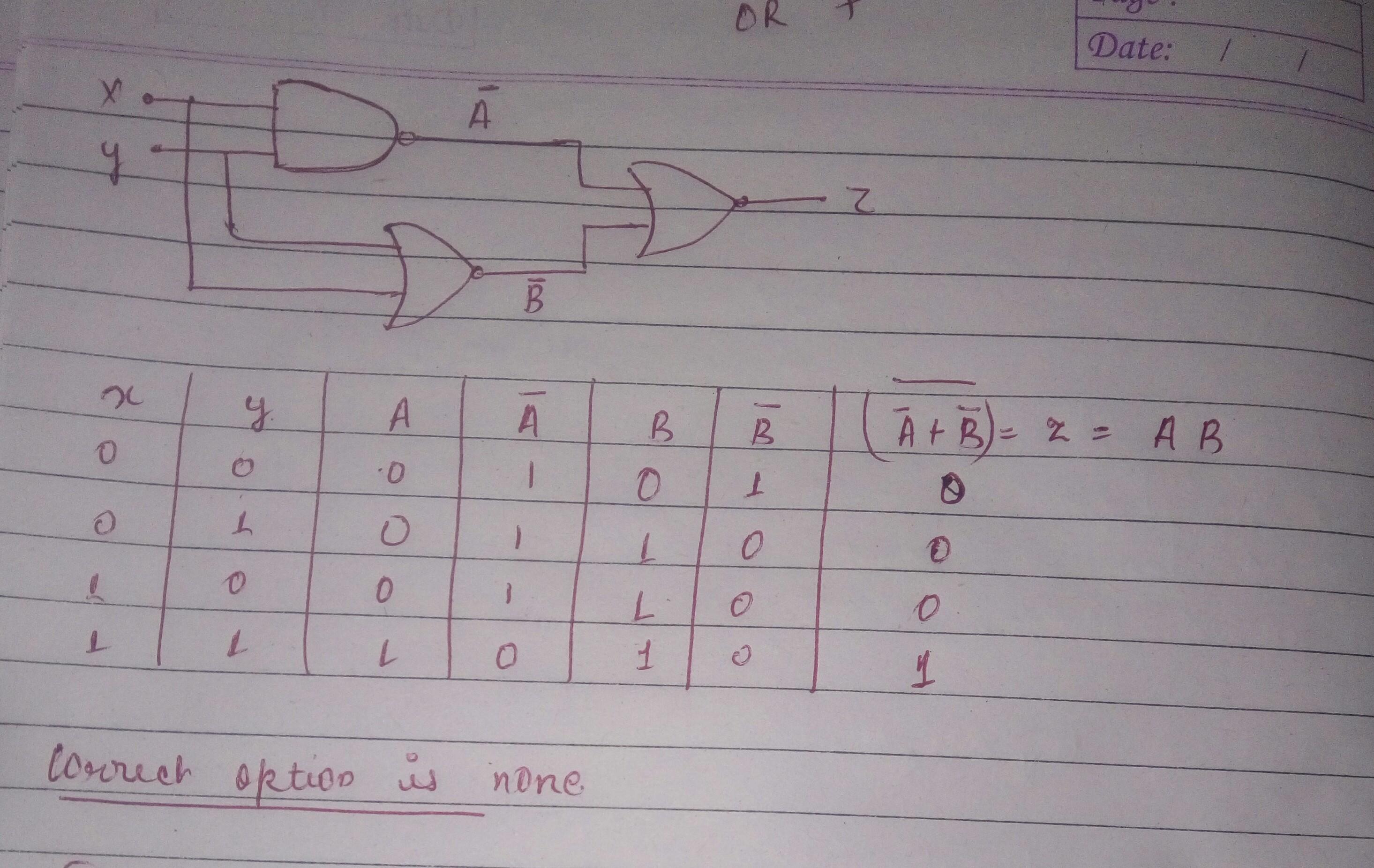

    no option is matching ..
    • cropped-66302260.jpg
    Likes(0) Reply(0)
  • Abhishek singh

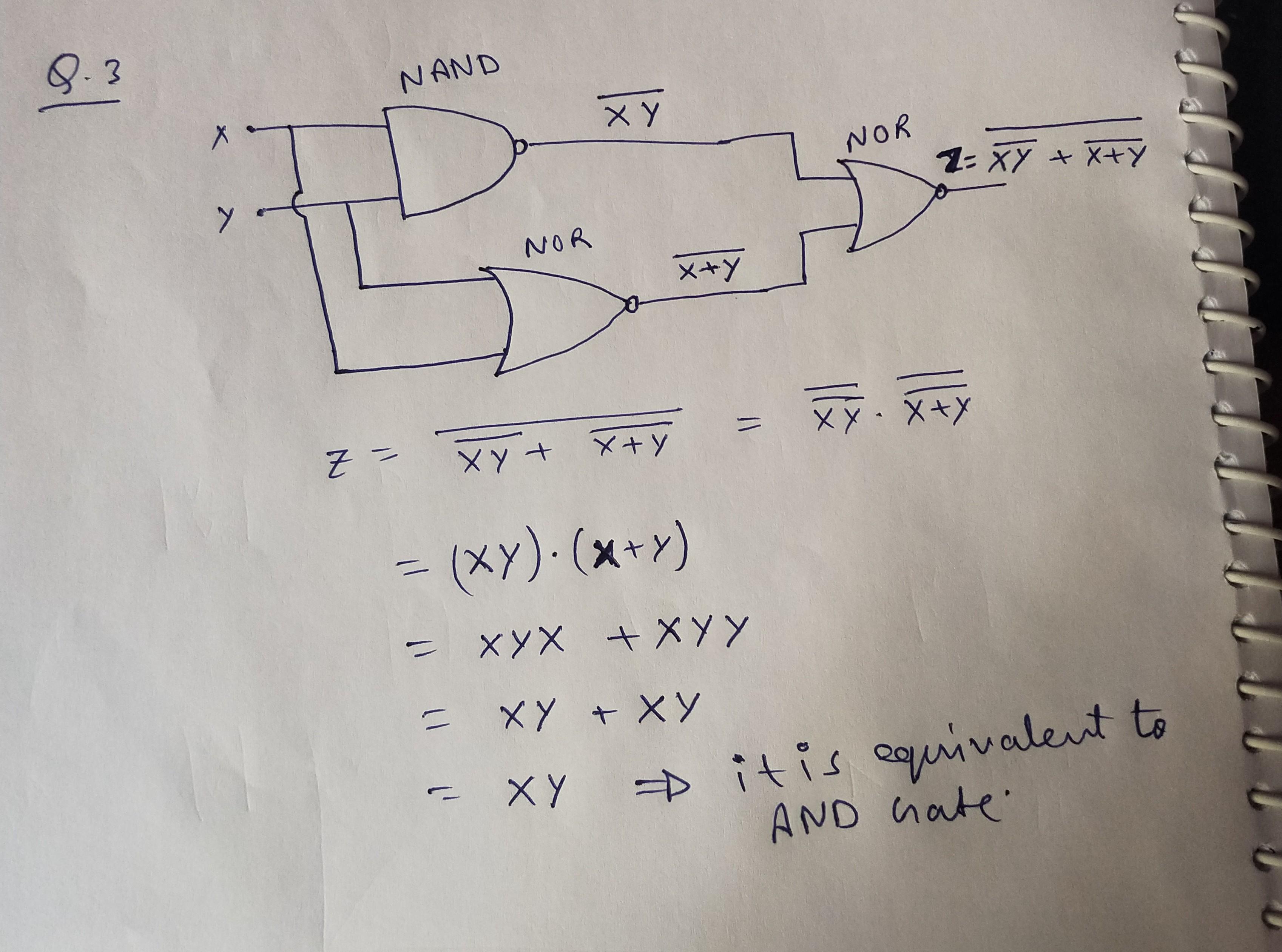

    This logic circuit is equivalent to an simple AND gate. it is the shortest and most efficient method. see the solution for better understanding. unfortunately, no Option is matchin...
    Show more
    • cropped5892359404302037615.jpg
    Likes(0) Reply(0)
  • Somnath thankyou

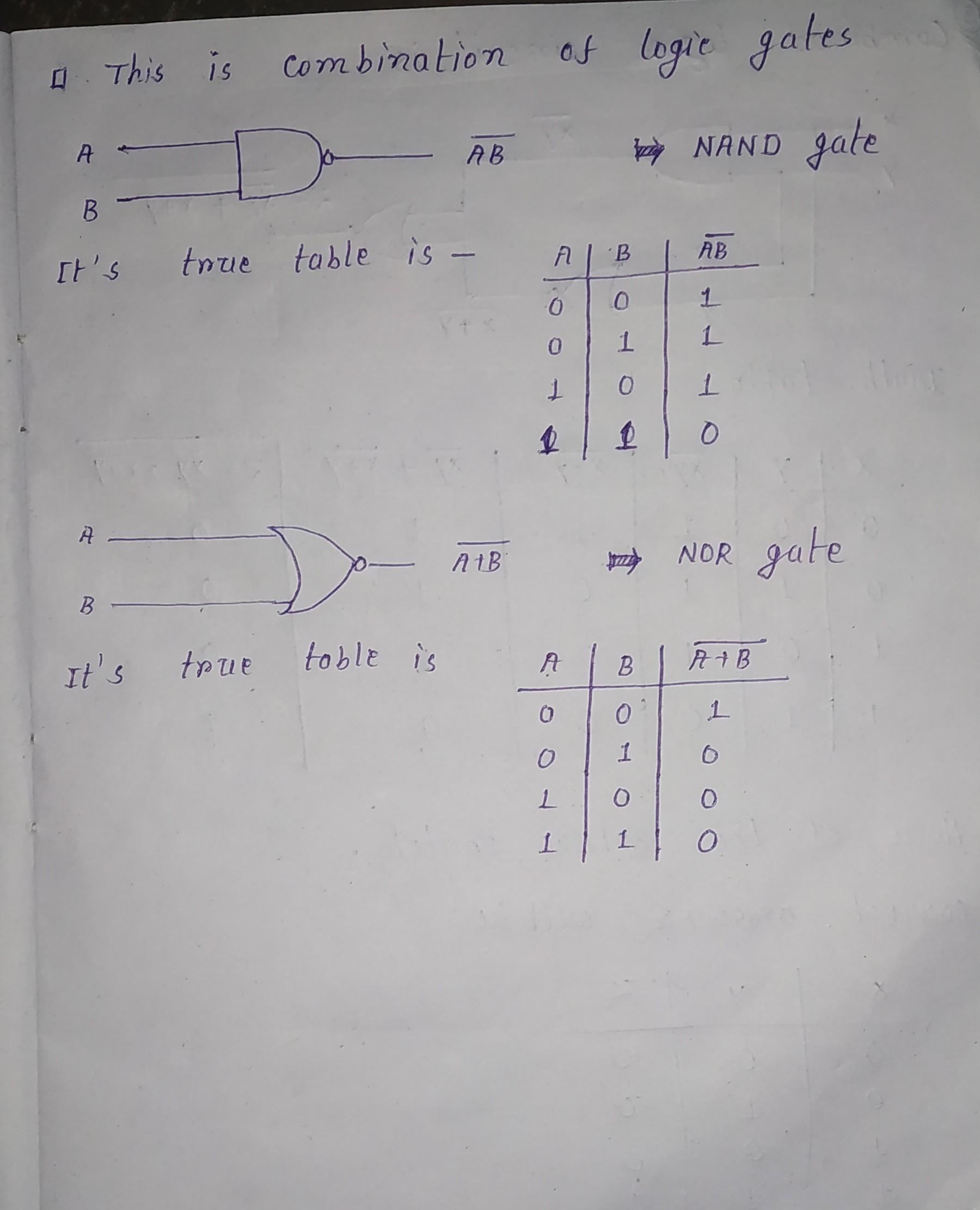

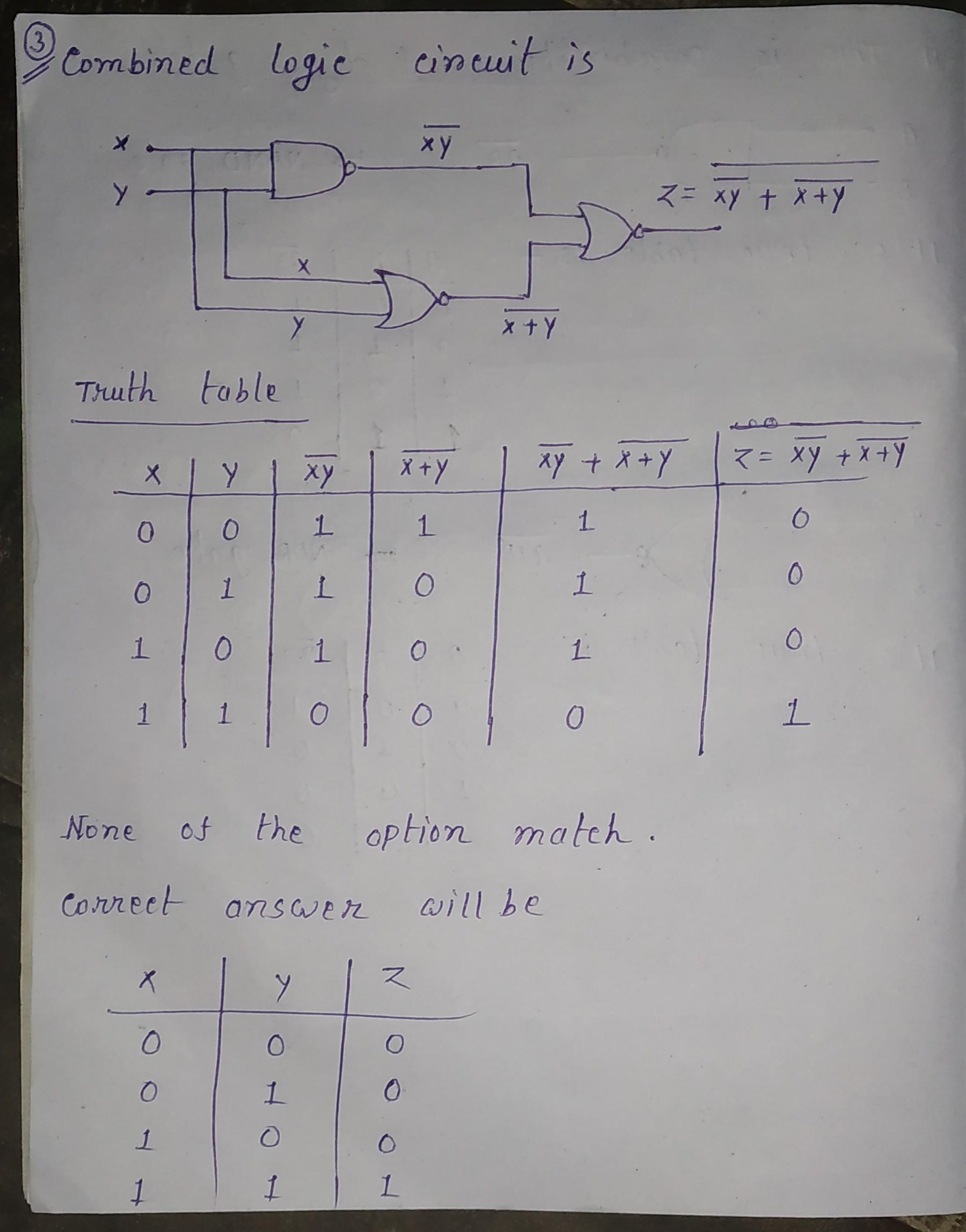

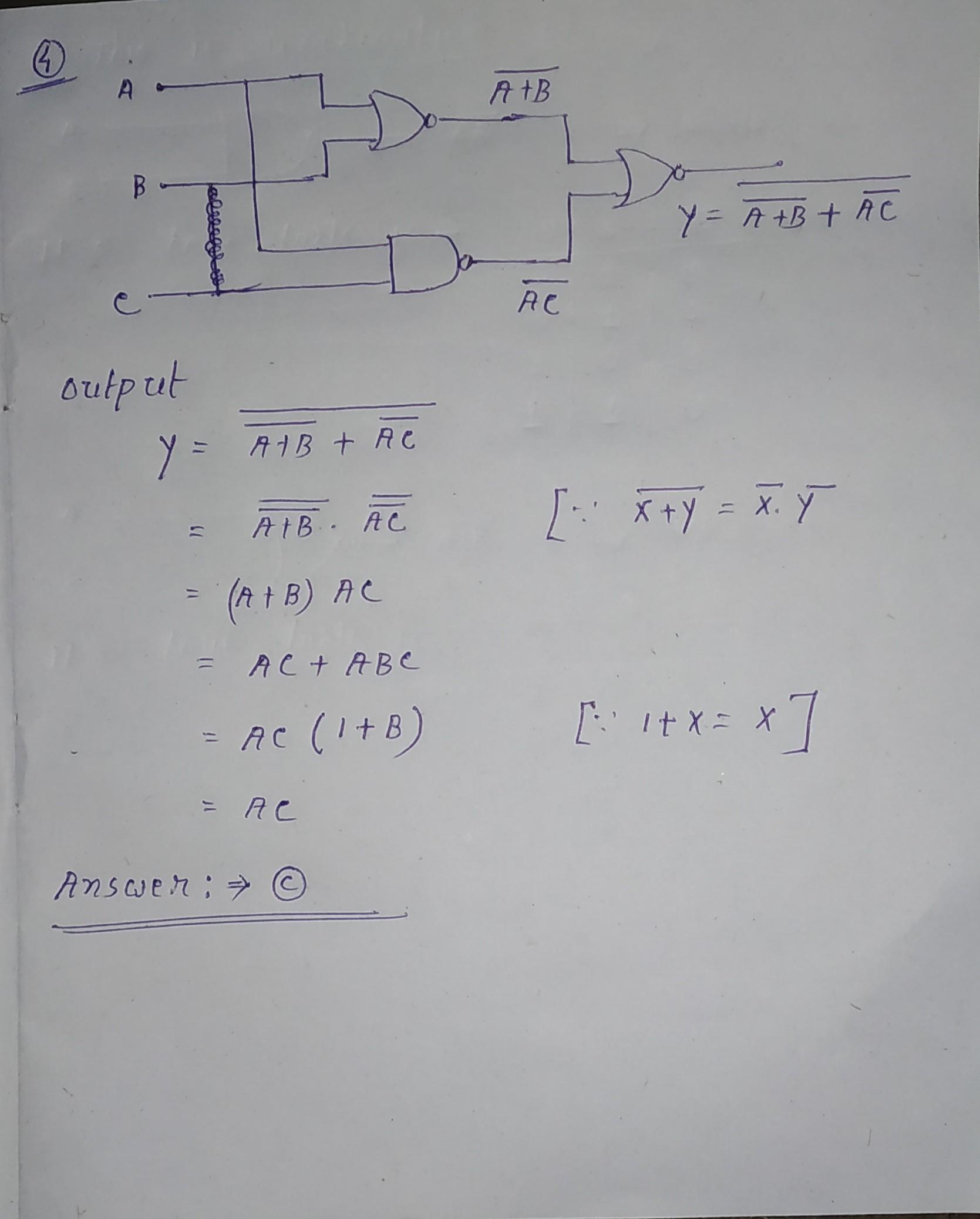

    Logic gate used in problem 3 and 4 are NAND and NOR gates. None of the options are correct in 3. See the attachment for full solution. Answer of problem 4 is C.
    • cropped8827267060624454324.jpg
    • cropped7462719536574087126.jpg
    • cropped3420490494350642450.jpg
    Likes(0) Reply(0)
  • Dhairya sharma thankyou

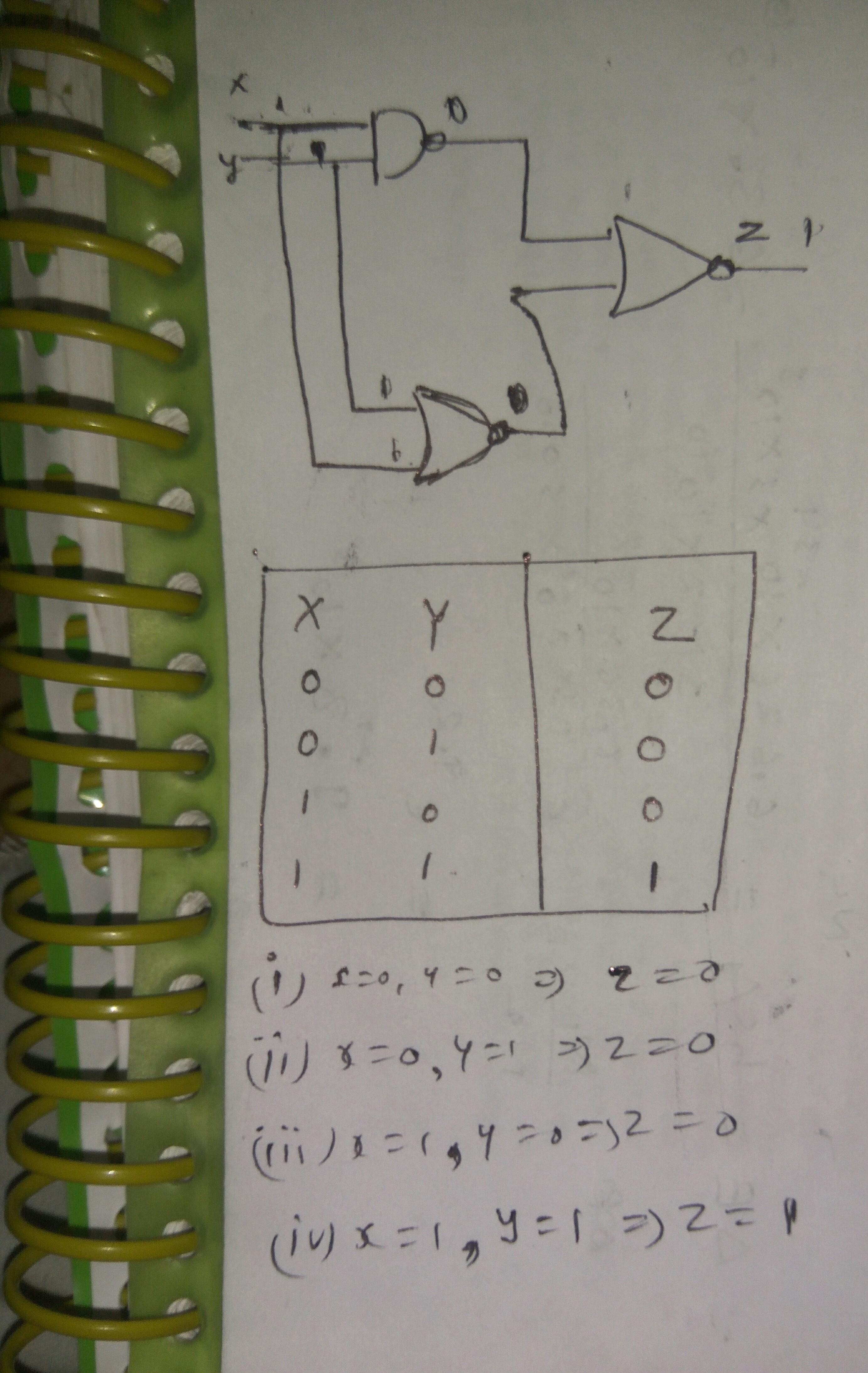

    dear in this CASe we will get this table. because upper one is nand and the rest are nor gates so the only possible combination is i'm showing to you. hope it's clear to yoy.
    • cropped-1469249787.jpg
    Likes(0) Reply(0)
