Vibhuti Asked a Question
June 12, 2020 5:21 pmpts 30 pts
31. Consider the situation shown in figure (5-E14). Both he pulleys and the string are light and all the surfaces are frictionless. (a) Find the acceleration of the mass M. mass M. (b) Find the tension in the string. (c) Calculate the force exerted by the clamp on the pulley A in the figure. 2 M B MO
  • 1 Answer(s)
  • 0 Likes
  • 6 Comments
  • Shares
  • Vaishnavi rajora
    and when mass which string has to will be double then tension will string will double....because tring will feel stretched....
    Likes(2) Reply(0)
  • Vaishnavi rajora Best Answer
    dear.....bcoz acceleration is due to Mass M which is suspended.....but the other mass is 2M which is twice time heavy.......so acceleration will be half....becoz due to double mass...
    Show more
    Likes(2) Reply(3)
    Chandra dhawan
    yes ma'am
  • Chandra dhawan
    hope you got it dear...i suggest uh in this type of prob 1st of all u should draw the free body diagram after then thinking about prob....
    Likes(2) Reply(0)
  • Chandra dhawan
    see attached file it's very helpful for you dear
    Likes(2) Reply(1)
    Chandra dhawan
    it's complete explanation dear see it
  • Vaishnavi rajora
    see attached.

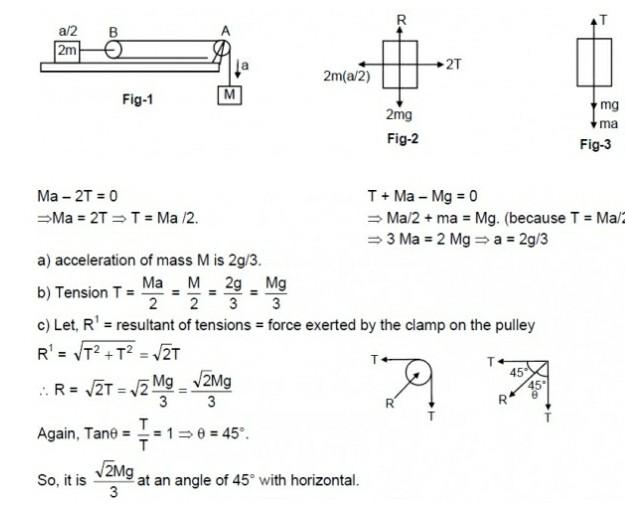

    • cropped7171390862672938990.jpg
    Likes(1) Reply(4)
    Vaishnavi rajora
    it will provide u complete explanation.
  • Vaishnavi rajora
    see attached.

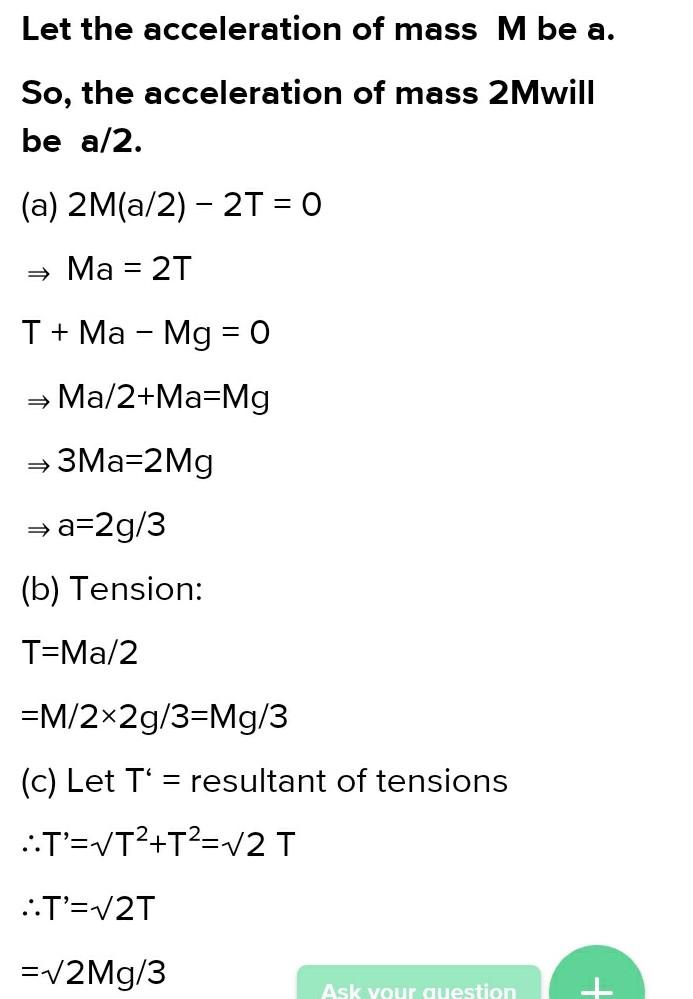

    • cropped7765631252828926645.jpg

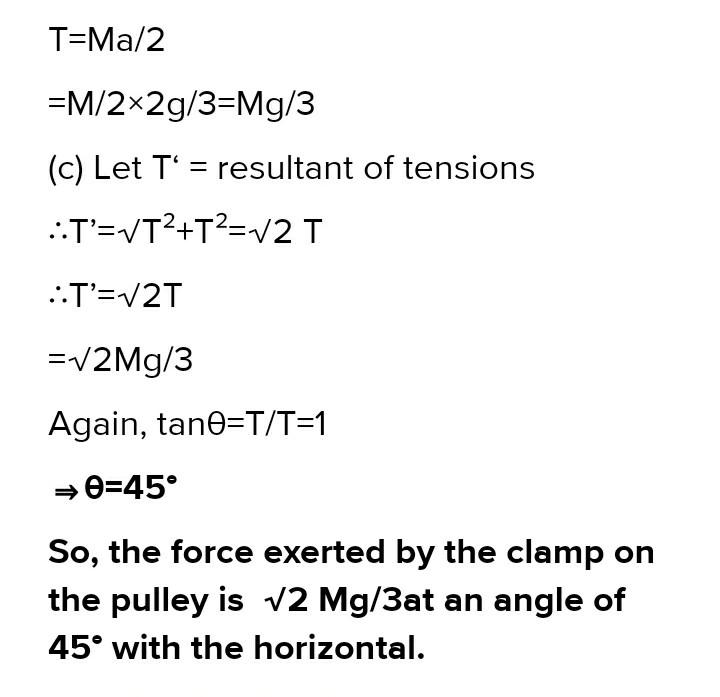

    • cropped1755529815388475222.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    yes ma'am
