4 2 points For the circuit shown in the figure the Thevenin voltage V and Thevenin resistance Ru as seen by the load resistance R(=1ks2) are respectively (a) 15V, 1k2 (b) 30V, 4kQ (c) 20V, 2k2 (d) 107, 5kQ Q4. 2ks2 wW 2k2 ww 20/ 10/ O b) O (d)
  • 3 Answer(s)
  • 0 Likes
  • 4 Comments
  • Shares
  • Ruby negi Best Answer
    solution...option a is correct..

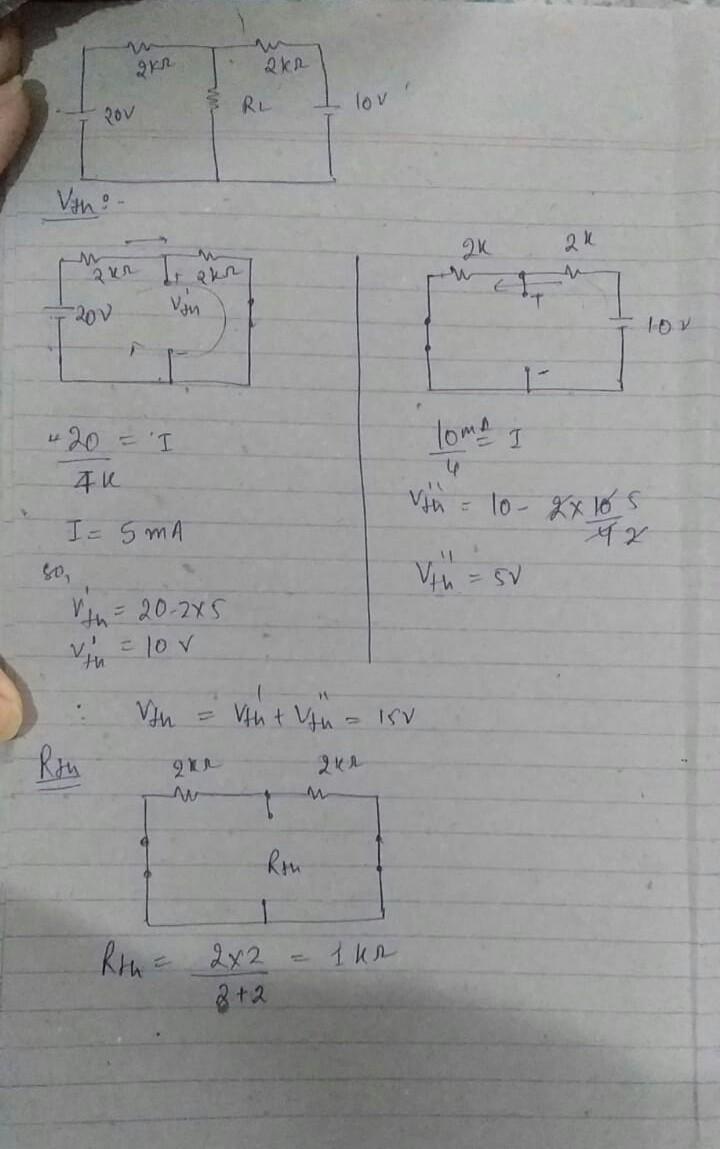

    • cropped943699981.jpg
    Likes(1) Reply(2)
    Ruby negi
    feel free to ask
  • Chandra dhawan thankyou
    dear see attached file it's very helpful for you ..

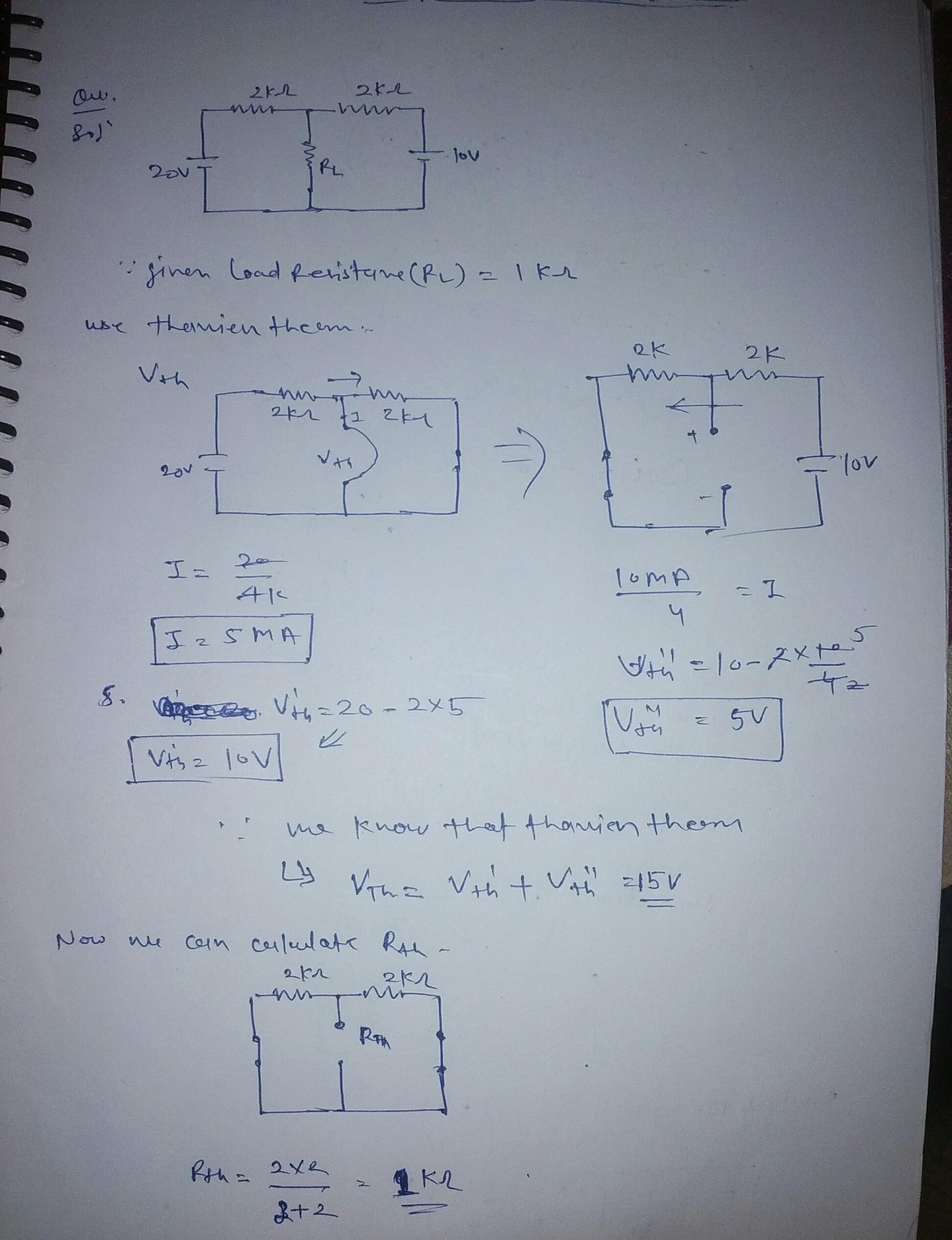

    • cropped-1009386618.jpg
    Likes(1) Reply(1)
    Chandra dhawan
    go through the solution..
  • Mahak thankyou
    correct option is a ,check the attached solution

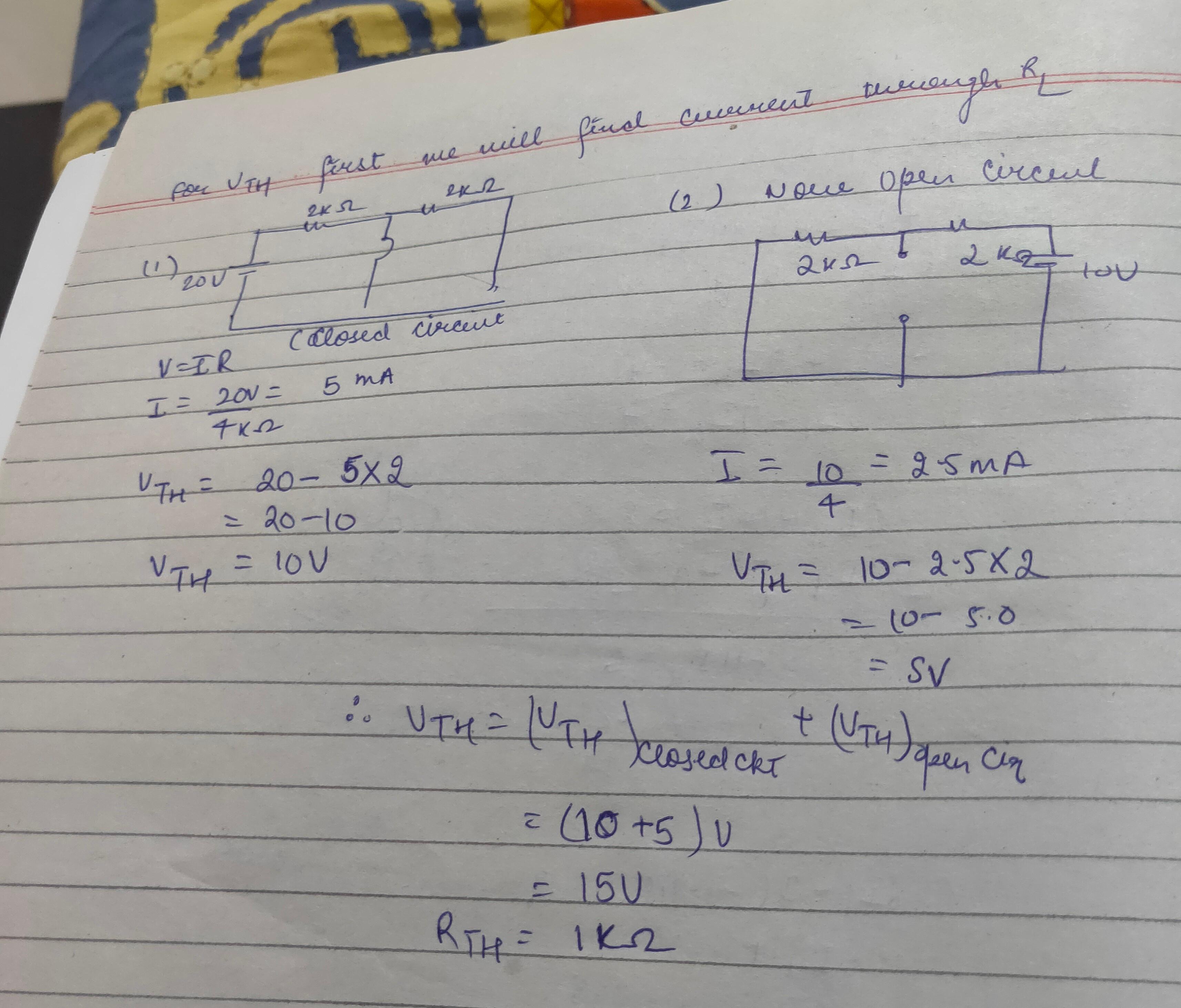

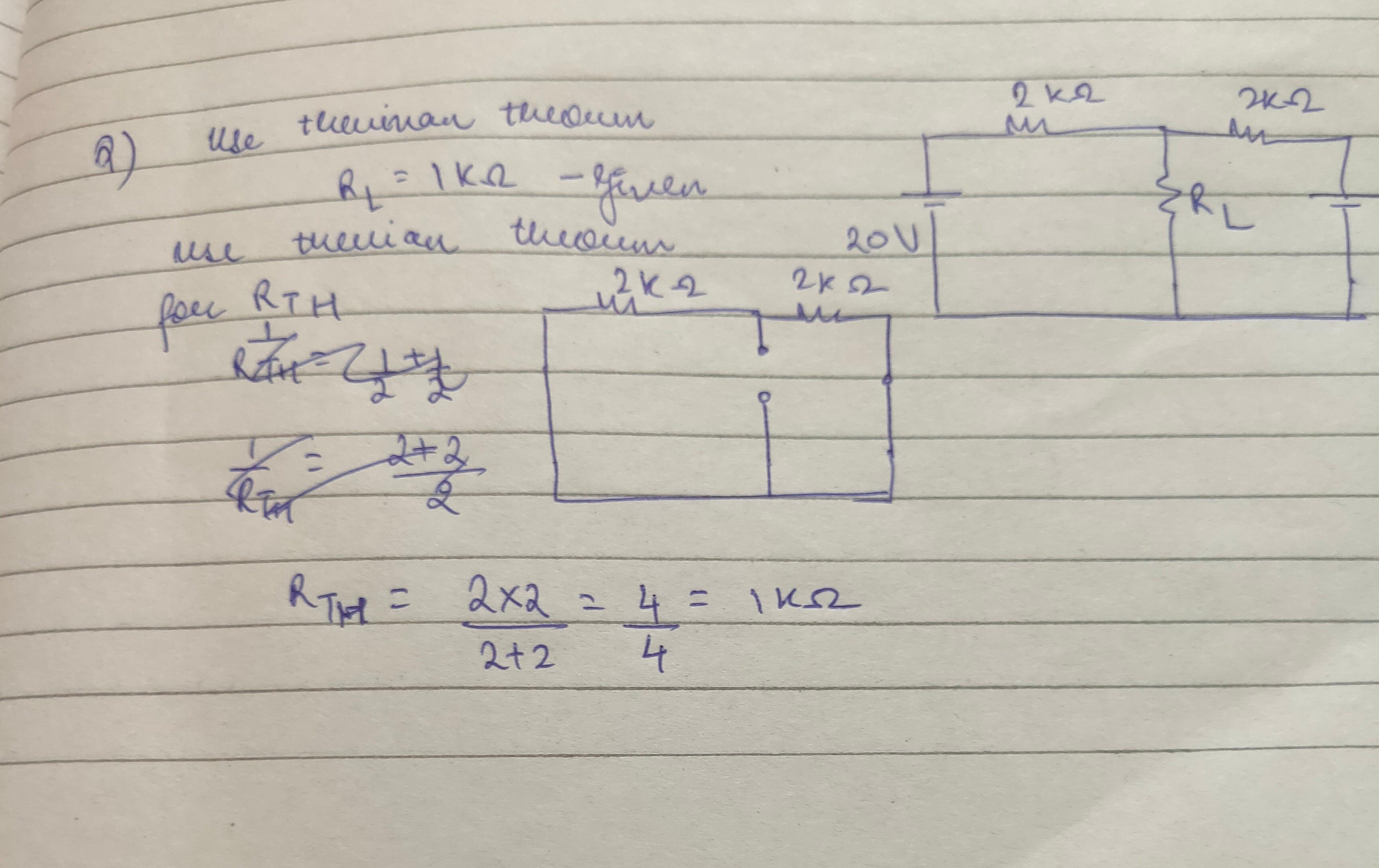

    • cropped7874431725302427705.jpg
    • cropped4885644170188004289.jpg
    Likes(0) Reply(0)
  • Chandra dhawan
    I hope you got it dear... best regards
