Pradeep Asked a Question
November 14, 2020 11:14 pmpts 30 pts
|4.6 Consider a thick biconvex lens whose magnitudes of the ra- dii of curvature of the first and second surfaces are 45 and 30 cm, respectively. The thickness of the lens is 5 cm, and the refractive index of the material that it is made of is 1.5. For an object of height 1 cm at distance of 90 cm from the first surface, determine the position and size of the image. Draw the ray diagram for the axial point of the object.
  • 1 Answer(s)
  • 0 Likes
  • 1 Comments
  • Shares
  • Monika thankyou
    see the attachment

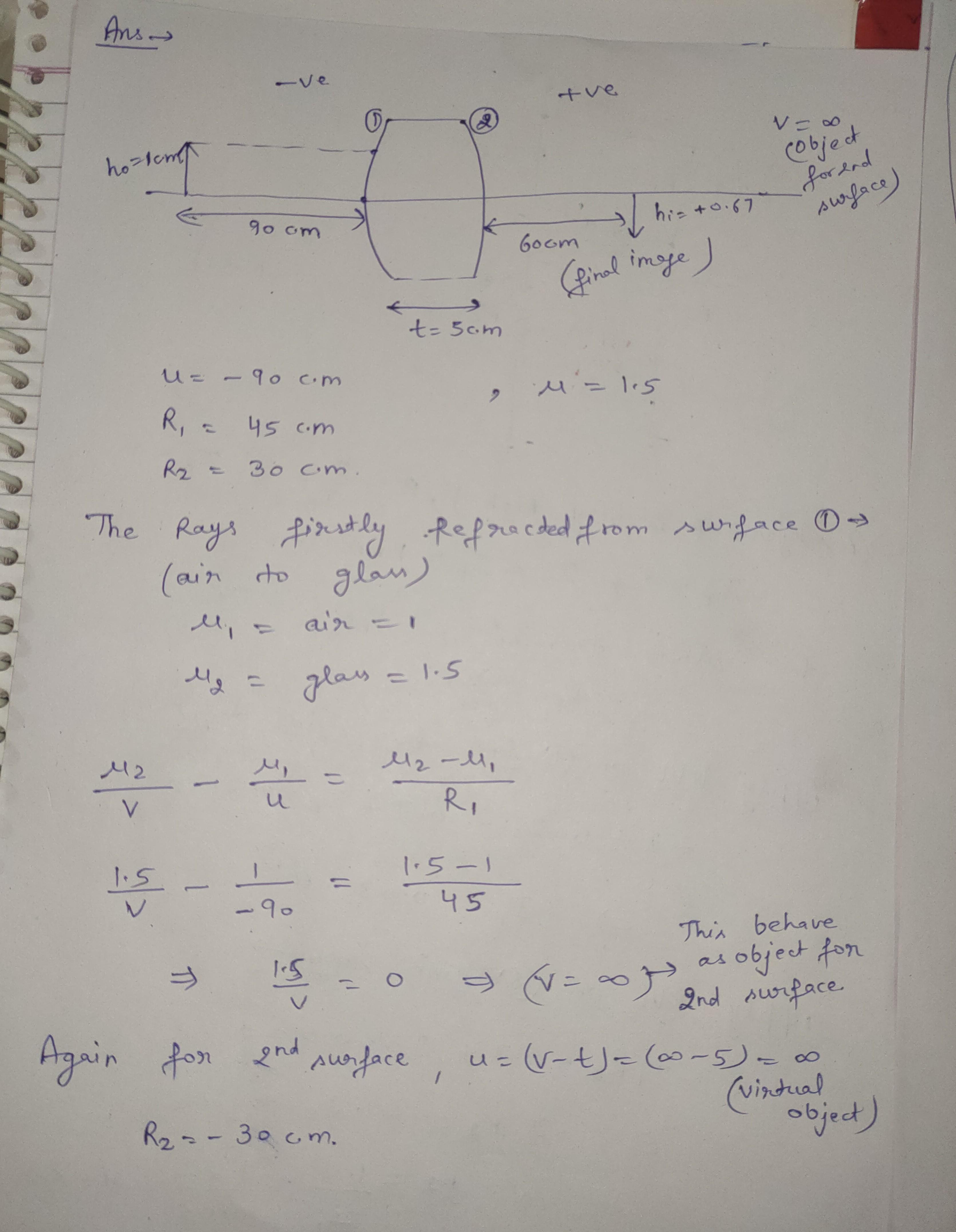

    • cropped6974113385459354113.jpg

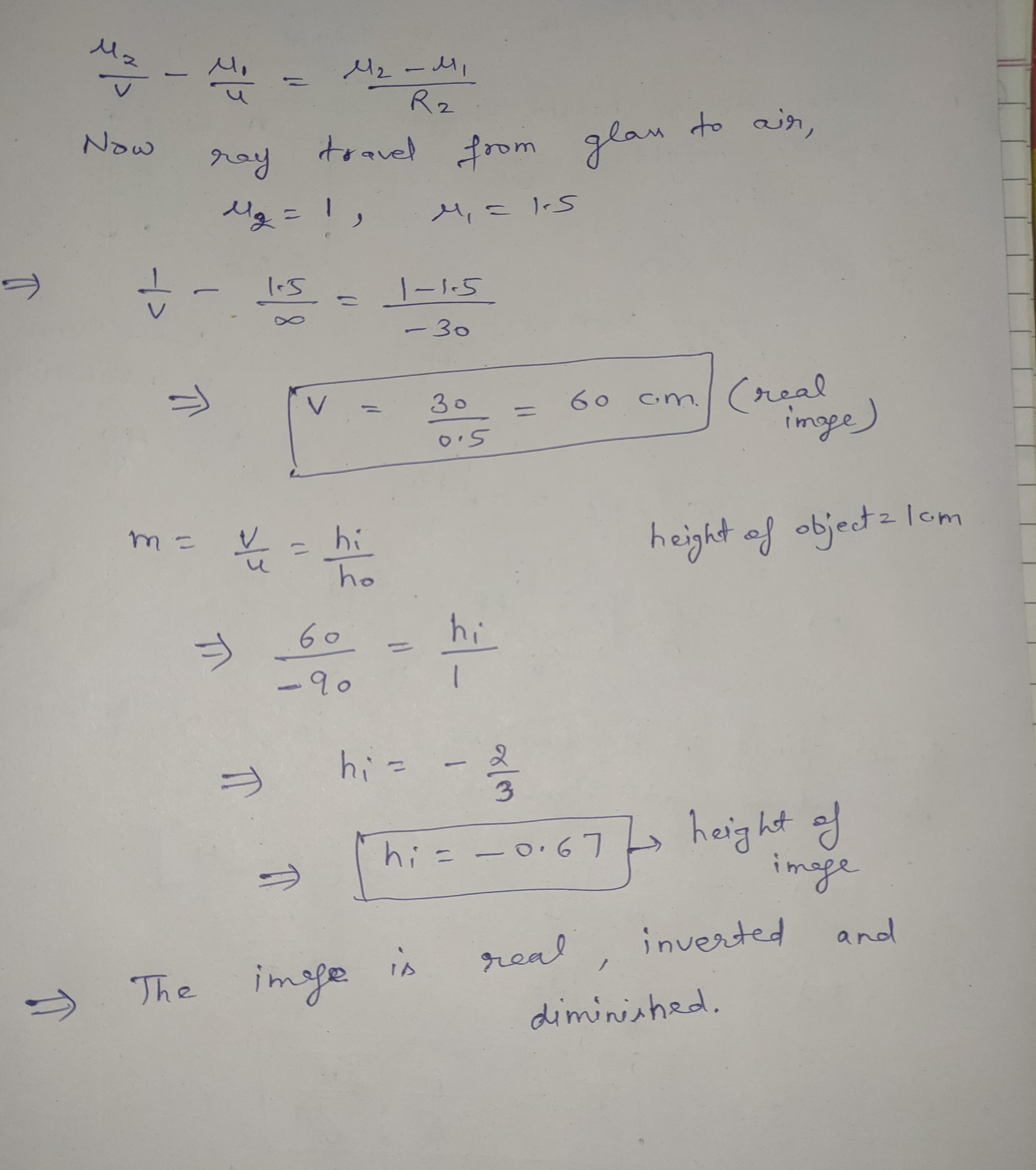

    • cropped9154777139641603347.jpg
    Likes(0) Reply(0)
