- Chemistry (CY)
4 isomers are not possible
Both the structures (c) and (d) have same structure and and one can be obtain by rotation of 180° .So only 3 isomers are possible not 4.
1 Answer(s)
Answer Now
- 0 Likes
- 1 Comments
- 0 Shares
-
![comment-profile-img]()
>
Do You Want Better RANK in Your Exam?
Start Your Preparations with Eduncle’s FREE Study Material
- Updated Syllabus, Paper Pattern & Full Exam Details
- Sample Theory of Most Important Topic
- Model Test Paper with Detailed Solutions
- Last 5 Years Question Papers & Answers
Sign Up to Download FREE Study Material Worth Rs. 500/-
Dinesh khalmaniya 1 Best Answer

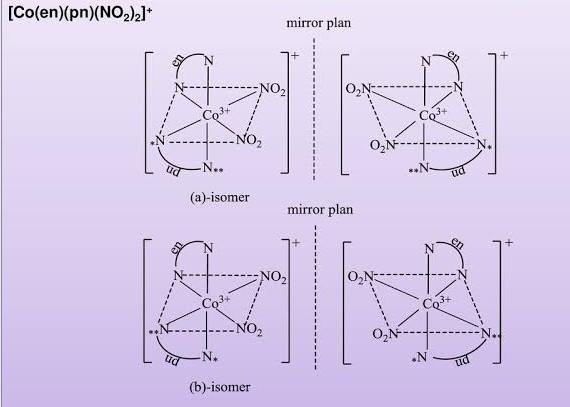

1,2-diaminopropane (pn) is an unsymmetrical bidentate ligand. The complex [Co(en)(pn)(NO2)2]+ can form two cis and two trans isomers. Both the cis forms give two optical. while trans isomer is optically inactive..so total isomers are 5 not 4. isomers as shown below.
Sir i am asking for only geometrical isomers not total isomers.
but I've explained everything
yes sir..Thank u..☺
you welcome
sir. Those 2 trans isomers are equivalent and can be obtained by rotation of 180°.So how those trans isomers are different from each other

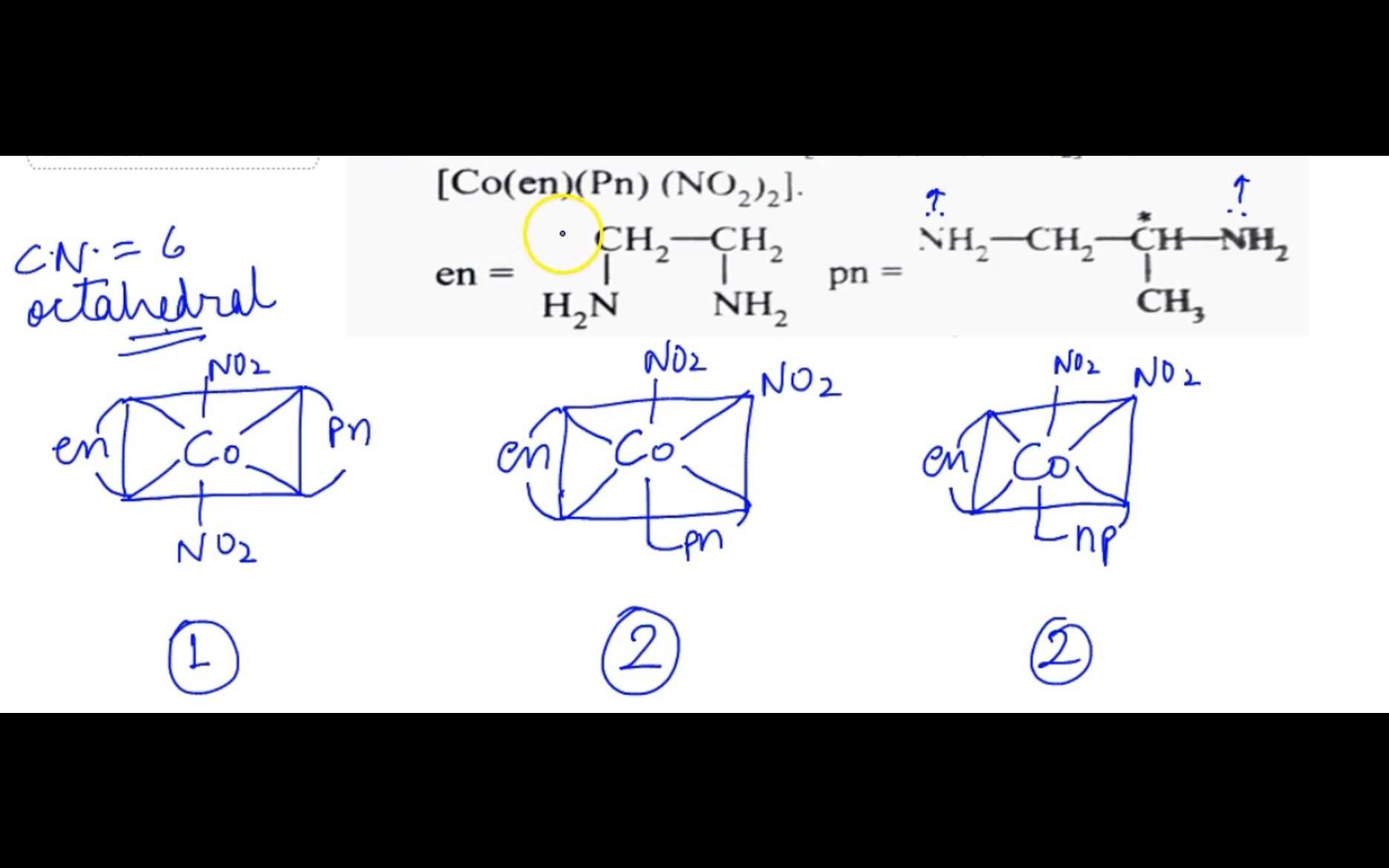

it gives only one trans and two cis isomers.. trans isomer is optically inactive due to molecular plane while both of two cis isomers are optically active so the total isomers (OI + GI) are 5
yes. Sir. there is a mistake in the material. It says 2 cis and 2 trans
yeh
