IIT JAM
Carson Asked a Question
June 30, 2020 6:43 pmpts 30 pts
  • IIT JAM
  • Physics (PH)

5 2 points in the circuit shown in the figure the thevenin voltage vu and thevenin resistance ru as seen by the load between point a and b are respectively q5.

5 2 points In the circuit shown in the figure the Thevenin voltage Vu and Thevenin resistance Ru as seen by the load between point A and B are respectively Q5. 22 ww RyH ww 42 Ž32 124 B (b) 8, 3Q (c) 12V, 32 (d) 16, 22 (a) 4/, 22 O (a) (b) O (c) ) O
  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 4 Comments
  • Shares

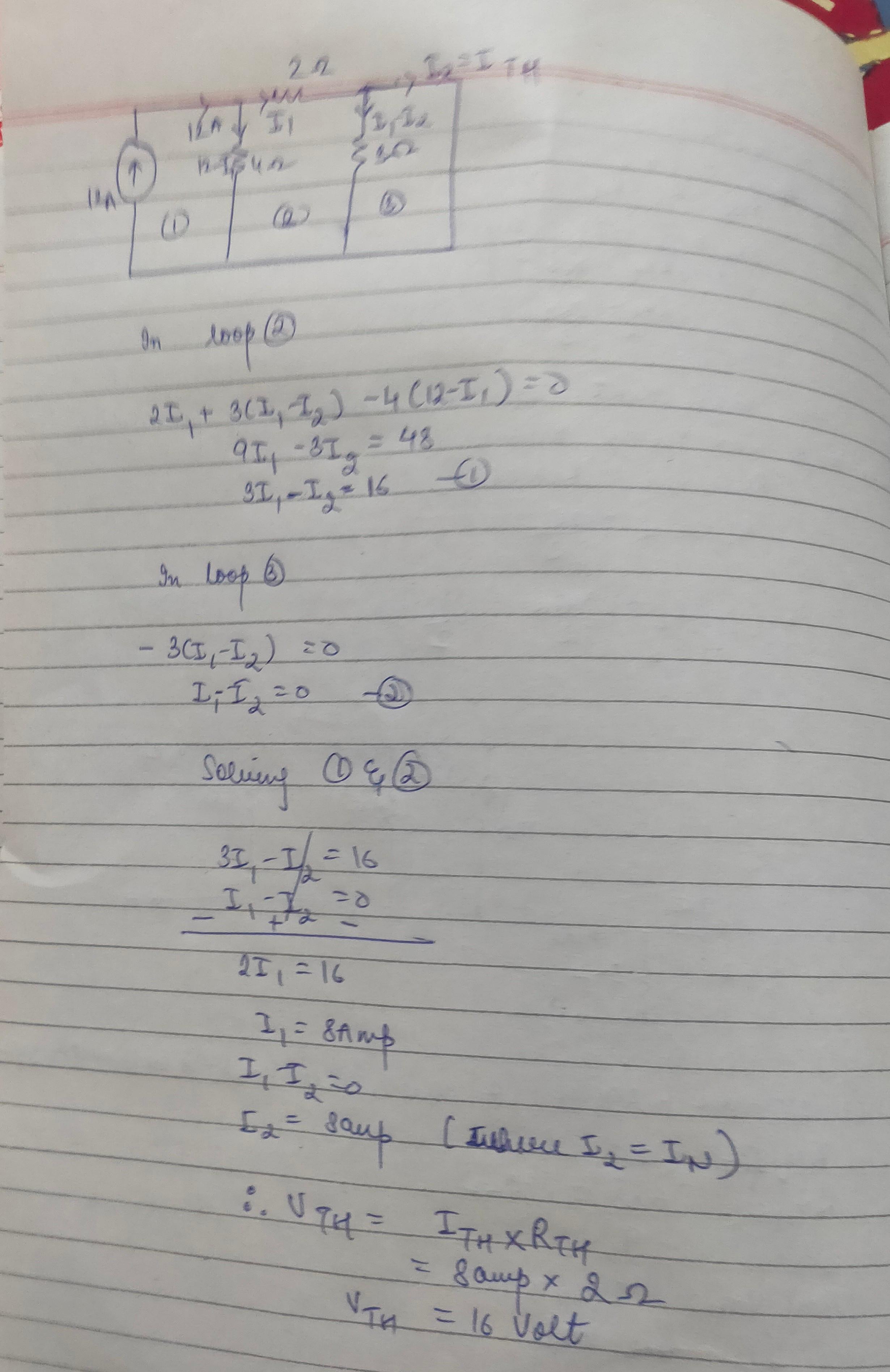

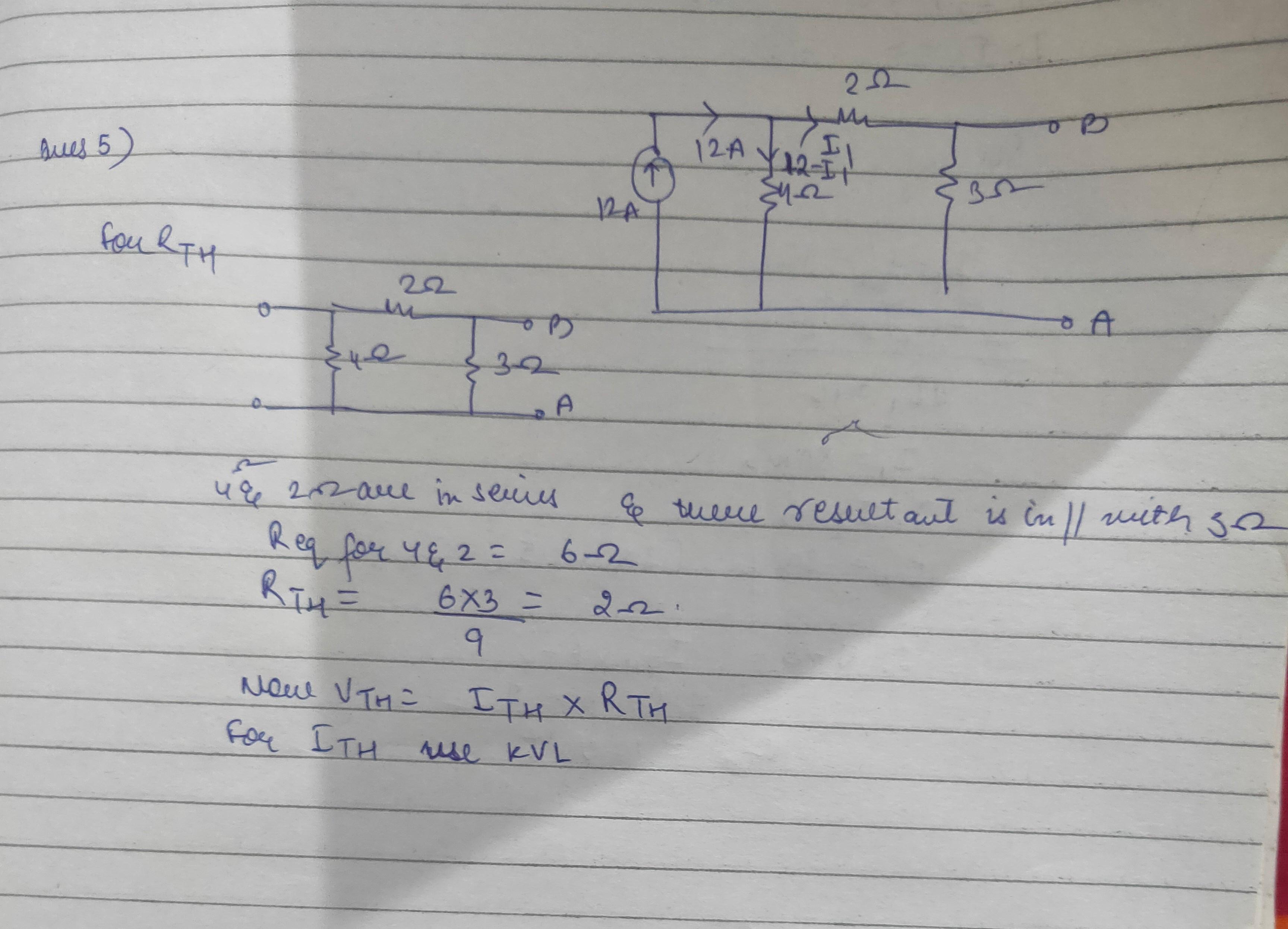

  • Mahak Best Answer
    option d is correct see attached
    • cropped5738834851470908251.jpg
    • cropped7494787504709374753.jpg
    Likes(0) Reply(0)

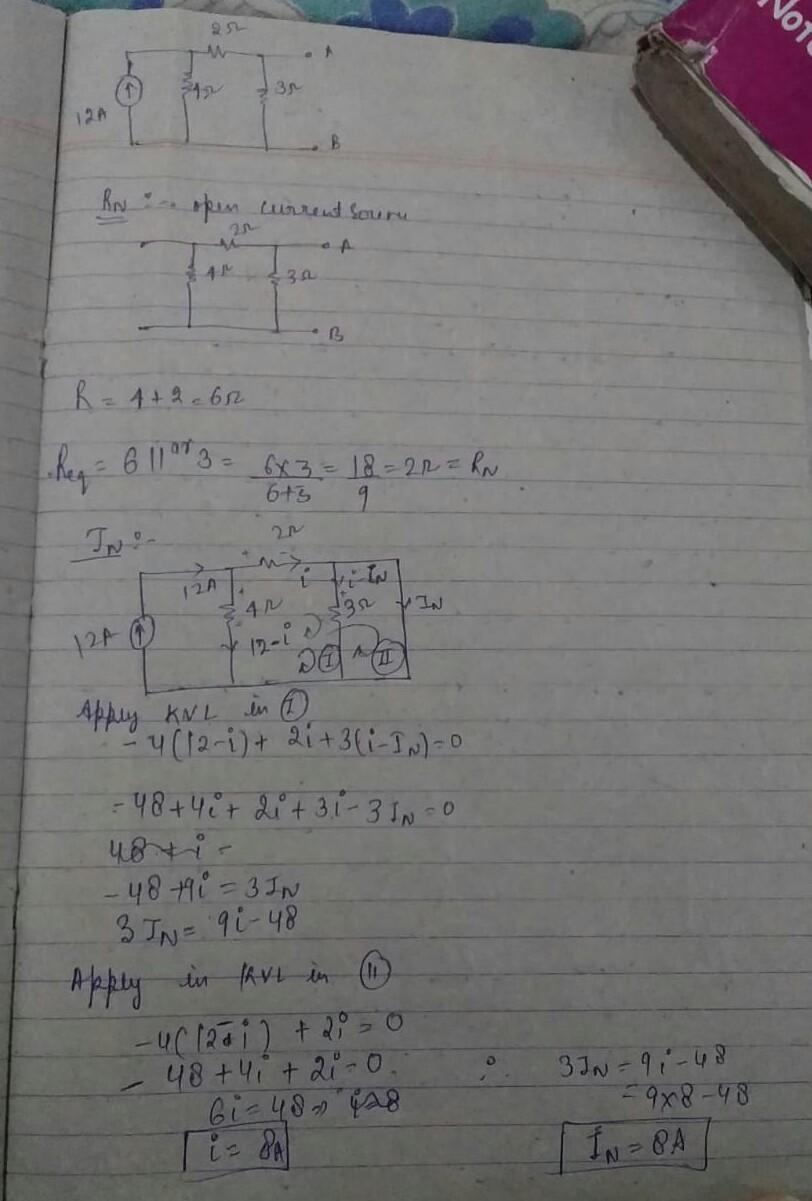

  • Ruby negi thankyou
    option d is correct.. multiply Norton current and nortan resistance u get thevenin voltage (8*2=16V) ... and nortan resistance is equal to thevenin resistance
    • cropped401194747.jpg
    Likes(1) Reply(2)
    Ruby negi
    see attachment

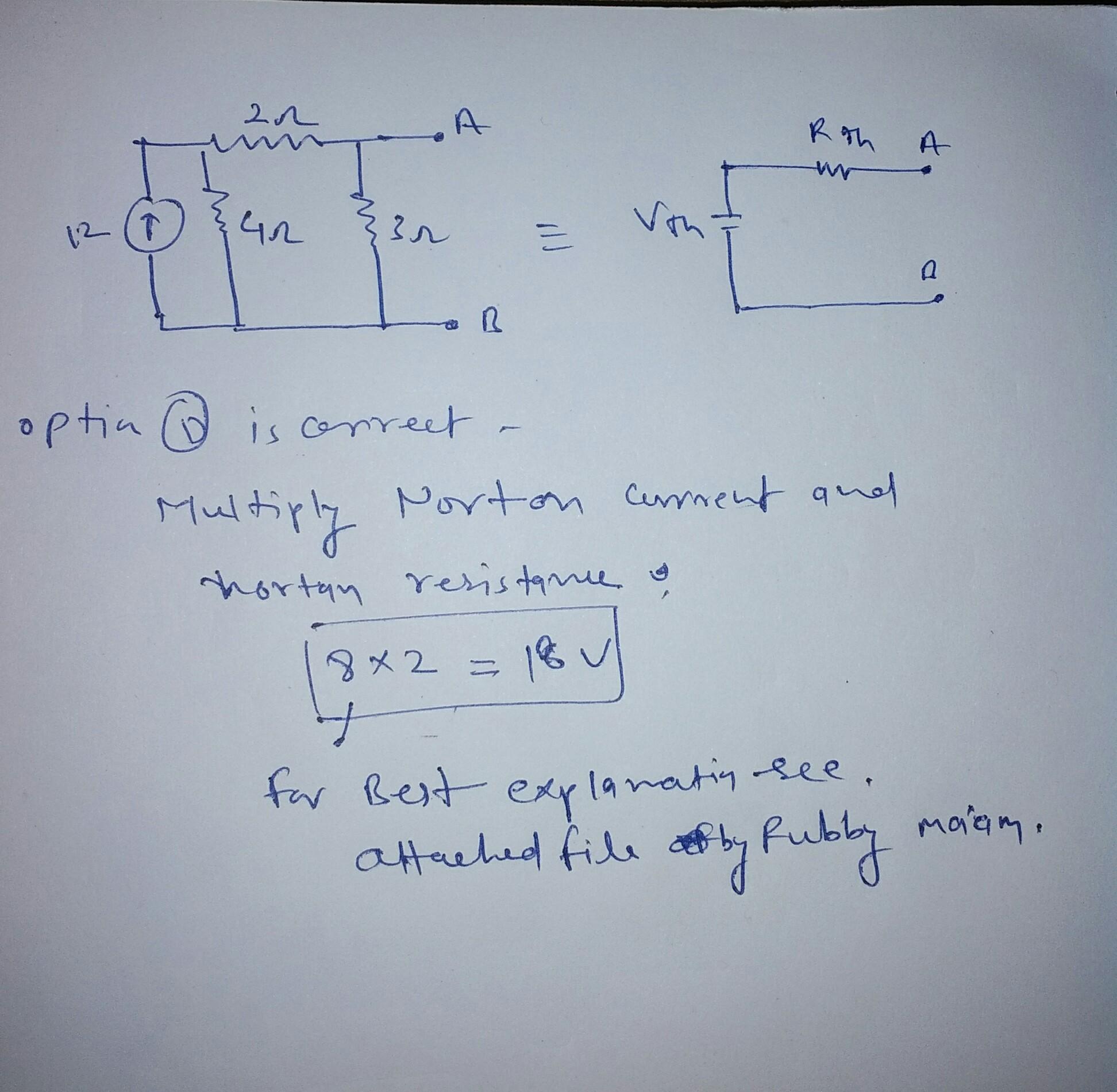

  • Chandra dhawan thankyou
    see attached file it's very helpful for you dear
    • cropped-94842949.jpg
    Likes(1) Reply(0)
  • Ruby negi
    option d is correct
    Likes(0) Reply(0)
