Manikarna Asked a Question
July 16, 2021 7:42 pmpts 30 pts
5 amplifiers of gains 10 and 20 are alternatively coupled. If an input of 3 mV is given. What will be the output voltage
  • 1 Answer(s)
  • 1 Likes
  • 5 Comments
  • Shares
  • Bidyut sinha thankyou
    I didn't notice the 5 term ...so V0=1.2*10^3Volt
    Likes(0) Reply(0)
  • Bidyut sinha
    oh yes yes...U didn't notice the 5 term... so it will be (10*20*10*20*10)=V0/V1...so Vo=1.2*10^3 volt...
    Likes(0) Reply(0)
  • Manikarna
    so will it be not 10*20*10*20*10?
    Likes(0) Reply(0)
  • Manikarna
    5 amplifier are given.
    Likes(0) Reply(0)
  • Bidyut sinha

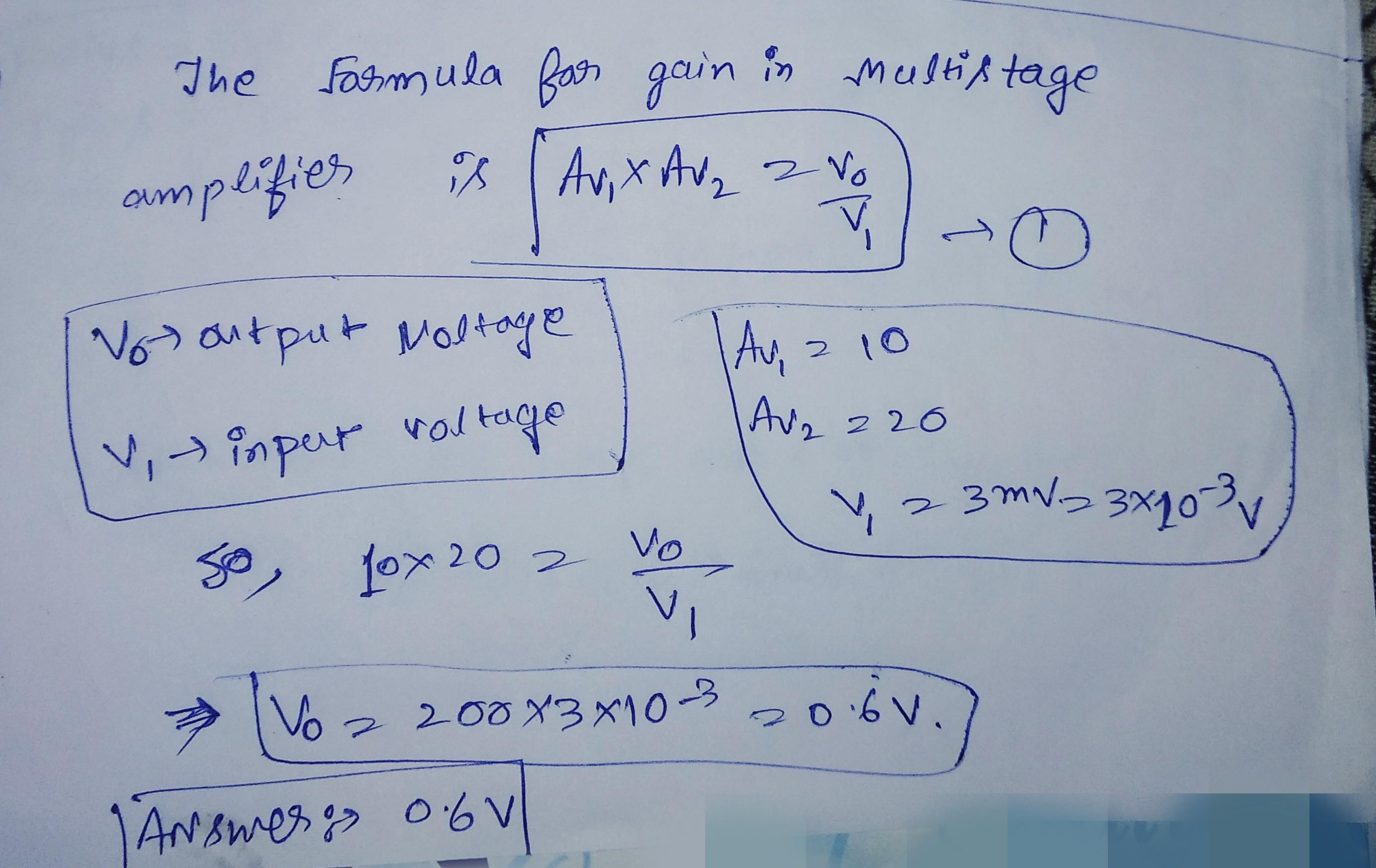

    I have given detail answer in the attached picture
    • cropped1696527970.jpg
    Likes(0) Reply(1)
    Manikarna
    will it be not 10*20*10*20*10
