67. a parallel circular plate capacitor with radius 10 cm is getting charged by an increasing voltage. the displacement current density (jd) is 0.5 pa/m. the ma

67. A parallel circular plate capacitor with radius 10 cm is getting charged by an increasing voltage. The displacement current density (JD) is 0.5 pA/m. The magnetic field at a distance of 5 cm from the axis (point A) af the capacitor plate is approximately R A. 1.6 x 10-14 T B. 0.5 x 10-14 T C. 10 x 10-14 T D. 0 TT
  • 3 Answer(s)
Answer Now
  • 0 Likes
  • 3 Comments
  • Shares
  • Ruby negi thankyou
    see this question's solution also.
    Likes(1) Reply(2)
    Sayan
    madam i am sorry for late reply 😞.. I forgot to see it.
  • Ruby negi thankyou
    dear, note that you have to find magnetic field at point r(r
    Likes(1) Reply(3)
    Ruby negi
    but if r>R then the Jd is only upto R so when you do surface intergral of Jd it will be Jd*πR^2(in the right hand side of the equation)..
  • Ruby negi Best Answer

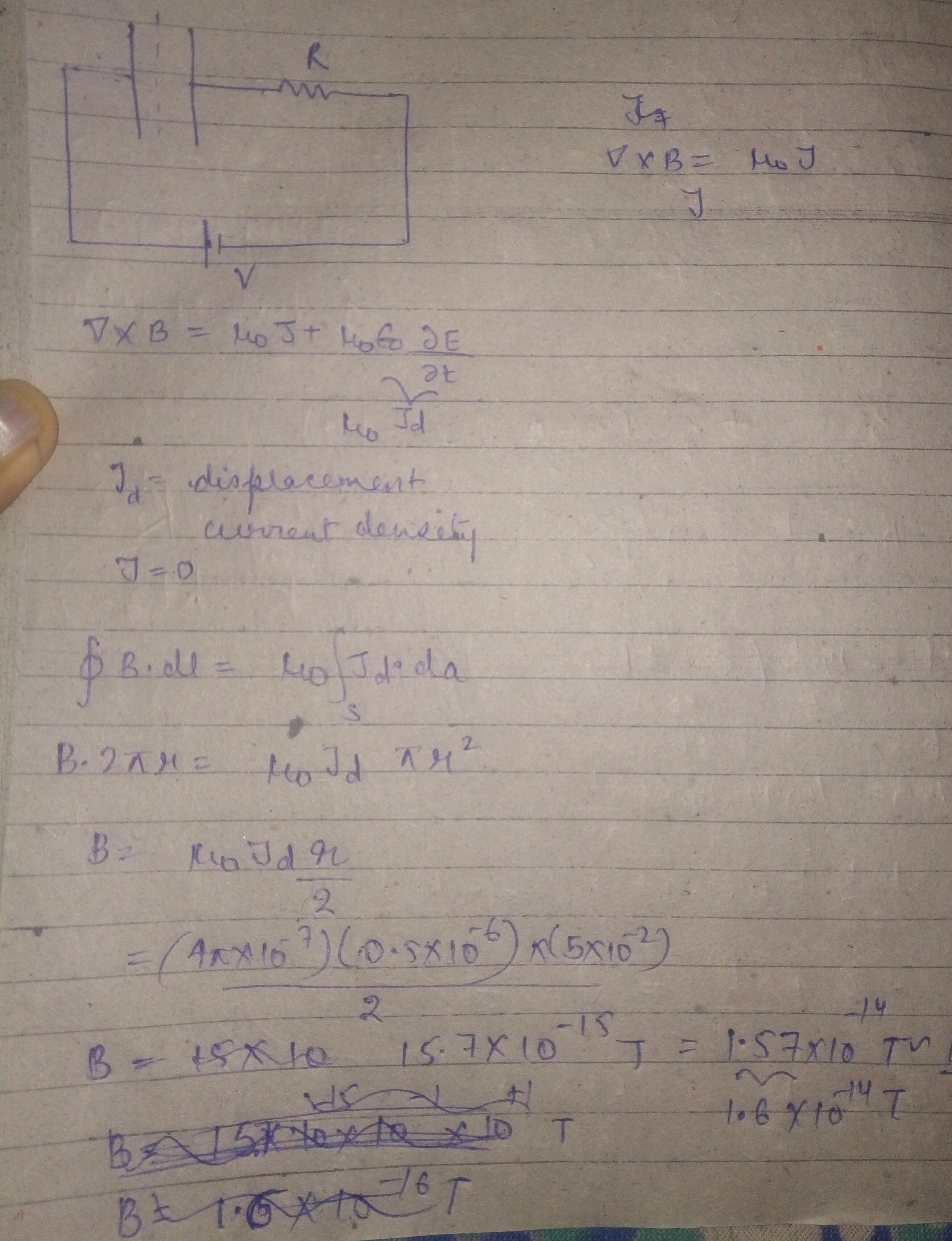

    here is the solution...
    • cropped457057387.jpg
    Likes(2) Reply(2)
    Sayan
    thank you madam😊
