Vibhuti Asked a Question
June 12, 2020 7:28 pmpts 30 pts
82 Concepts of a the mass M of the hanging block in figure (b- 10 wnich will prevent the smaller block from slipping ove the triangular block. All the surfaces are frictionless and the strings and the pulleys are light. m M M Figure 5-E16
  • 2 Answer(s)
  • 1 Likes
  • 8 Comments
  • Shares
  • Chandra dhawan
    dear I hope u get it.
    Likes(1) Reply(0)
  • Ashish sharma thankyou
    Please go through the proper solution

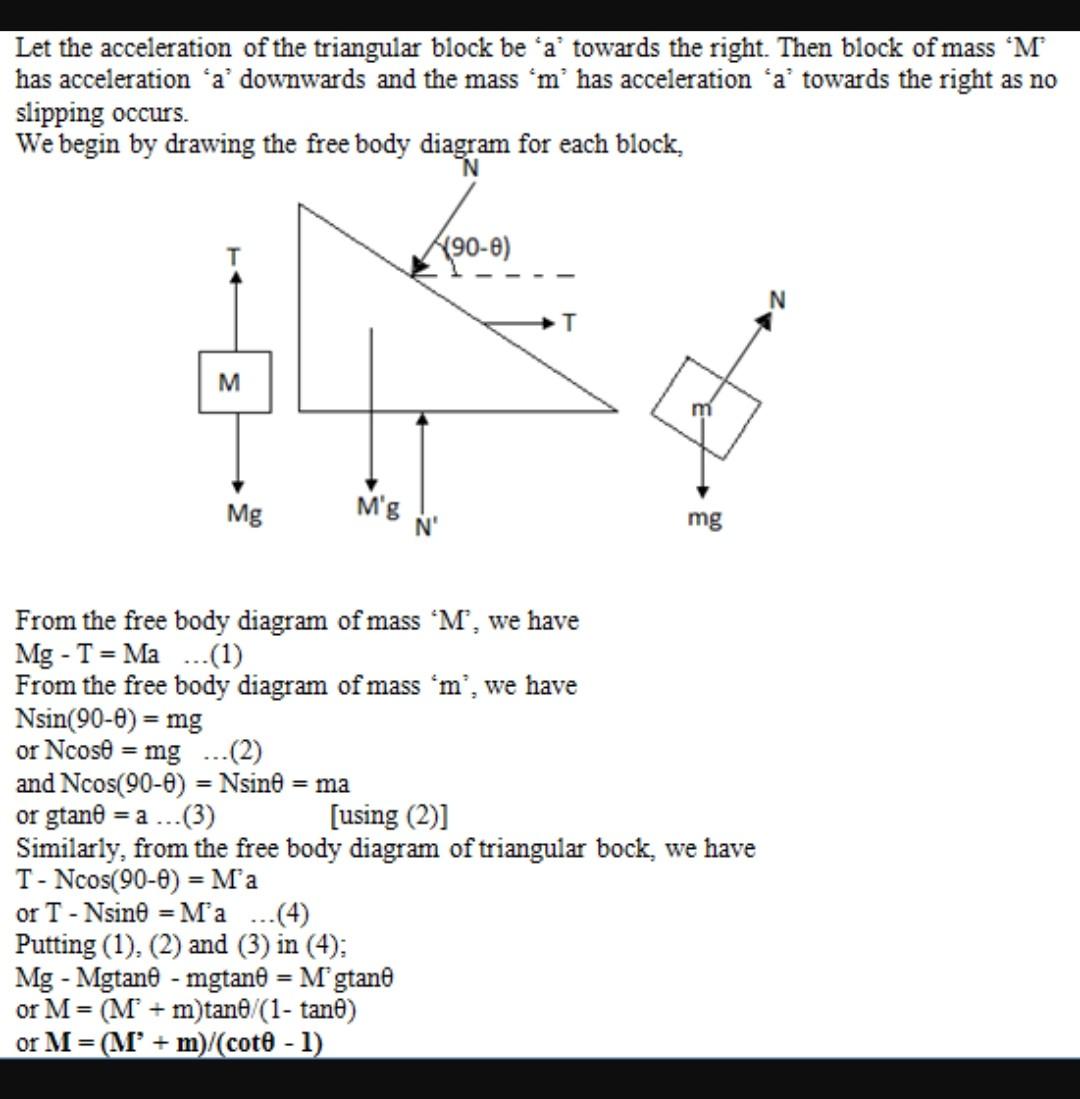

    • cropped5667505357814549942.jpg
    Likes(0) Reply(0)
  • Dhairya sharma
    see i hv already attached
    Likes(0) Reply(0)
  • Dhairya sharma
    see attached dear
    • cropped358712302.jpg
    Likes(1) Reply(0)
  • Chandra dhawan thankyou
    dear if you not understood yet you can ask
    Likes(2) Reply(0)
  • Chandra dhawan
    see also
    • cropped1737368354.jpg

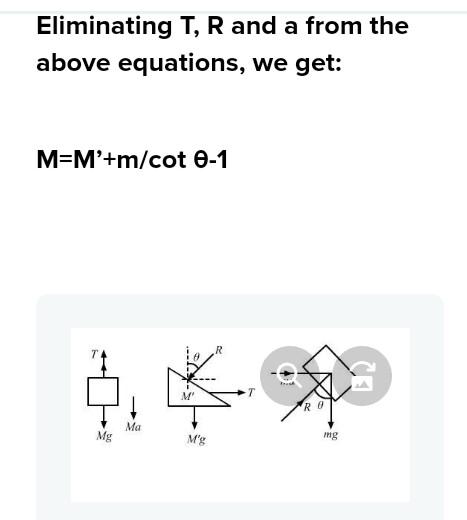

    • cropped-1874347890.jpg
    Likes(2) Reply(0)
  • Chandra dhawan
    hope you got it my point dear in this type of prob u should go through how to draw free body diagram
    Likes(2) Reply(0)
  • Chandra dhawan
    see attached file it's very helpful for you
    • cropped-1379349286.jpg
    Likes(2) Reply(0)
