Suhani Marwadi posted an Question
September 16, 2021 • 13:29 pm 30 points
  • IIT JAM
  • Biotechnology (BT)

A) 614 40 9 the logic operation (or, and, nor or nand) carried out by following circuit is y b (a) and (b) nor (c) or (d) nand

a) 614 40 9 The logic operation (OR, AND, NOR or NAND) Carried out by following circuit is Y B (a) AND (b) NOR (c) OR (d) NAND

1 Answer(s) Answer Now
  • 0 Likes
  • 3 Comments
  • 0 Shares
  • Priya sarda

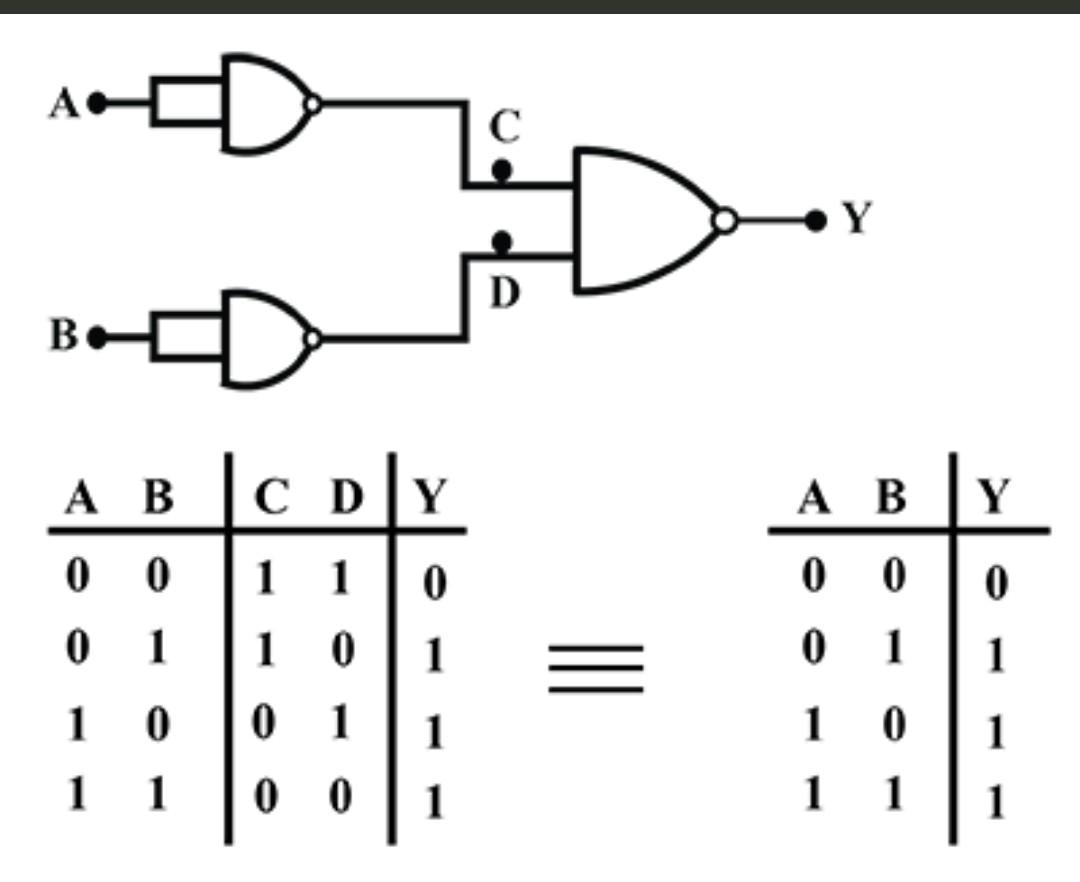

    The truth table for the entire circuit is shown in the above figure. The equivalent truth table is also shown for the inputs A and B and Y as an output which resembles the truth table of OR gate.

    eduncle-logo-app

    but how you changed the logic gate that I am asking in question logic gate given is different and you made is different

  • Priya sarda

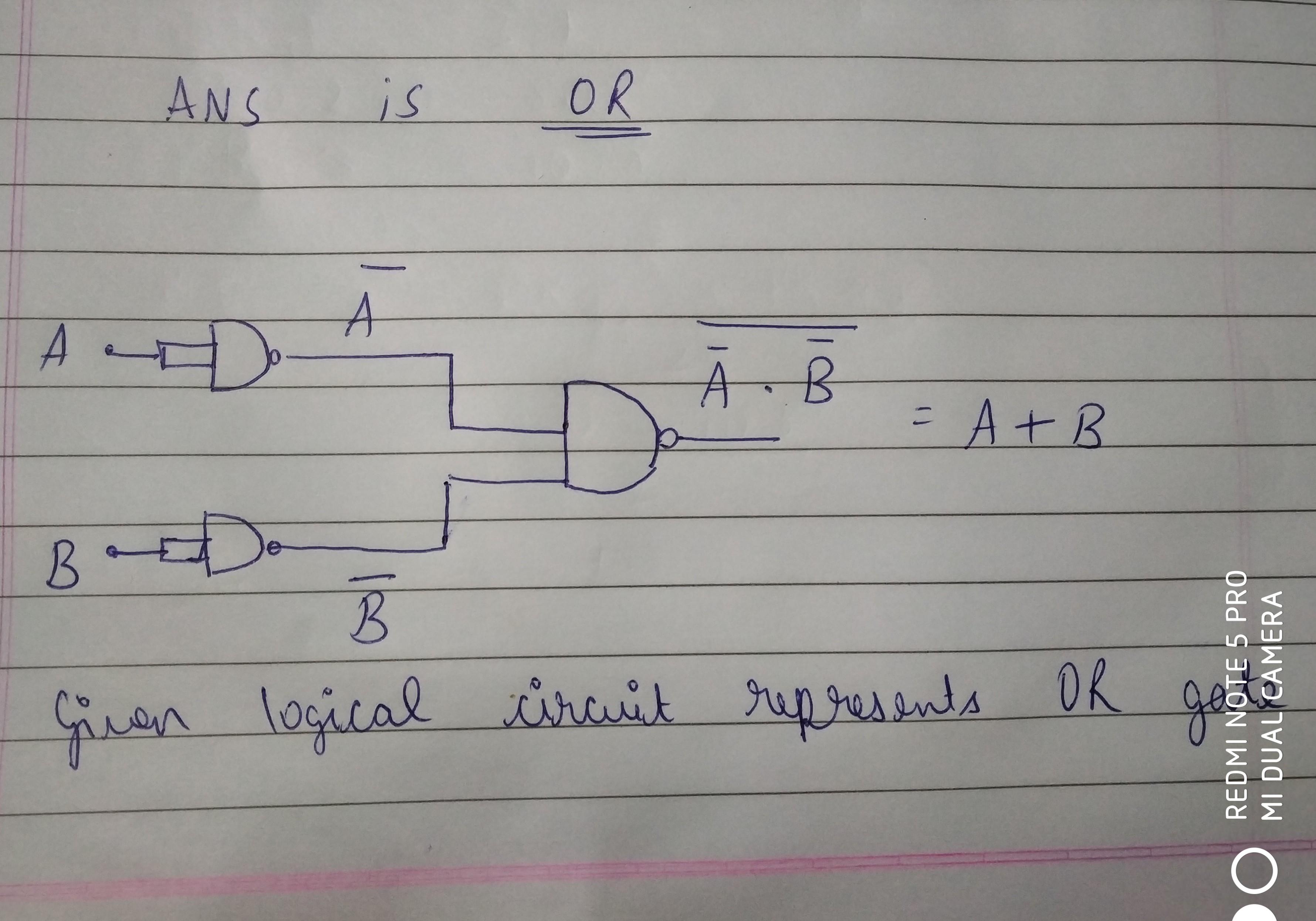

    option C OR

    eduncle-logo-app

    how you made this logic gate

    eduncle-logo-app

    in question two logic gates are given , first is nor and second is nand
